10W RGB COB LED for Starge Lamp
●Low voltage operation
●Instant Light
●Long Operating Life
●R, G, B, three color in one Package
●Widely Used in Stage Lamp, Wall Wah Lamp and so on.
Product Specification
Parameter | Symbol | Min | Avg | Max | Units | Test Conditions |
Forward Voltage | VF | 6.00 | -- | 8.00 | V | IF=350mA |
VF | 9.00 | -- | 12.00 | V | IF=350mA | |
Thermal Resistance Junction To Board | RΘJ-B | -- | 8 | -- | °C/W | IF=350mA |
Temperature Coefficient of Forward Voltage | ∆VF/∆T | −− | -2 | −− | mV/°C | IF=350mA |
Reverse Current | IR | −− | −− | 10 | μ A | VR=15V |
Viewing Angle [1] | 2Θ1/2 | −− | 120 | −− | Deg | IF=350mA |
Electrical/Optical Characteristics--White (At TA=25°C)
Mass Production list
Part No. | λd(NM) Min | λd(NM) Typ | λd(NM) Max | Luminous flux（lm） Min | Luminous flux（lm） Max | Condition |
GP-10WRGB-G30T-Z1GL | 460 | 465 | 470 | 60 | 90 | IF=350mA |
520 | 525 | 530 | 200 | 240 | IF=350mA | |
620 | 625 | 630 | 800 | 100 | IF=350mA | |
GP-10WRGB-G35T-Z1GL | 460 | 465 | 470 | 60 | 90 | IF=350mA |
520 | 525 | 530 | 240 | 280 | IF=350mA | |
620 | 625 | 630 | 900 | 110 | IF=350mA | |
GP-10WRGB-G45T-Z1GL | 460 | 465 | 470 | 60 | 90 | IF=350mA |
520 | 525 | 530 | 270 | 300 | IF=350mA | |
620 | 625 | 630 | 1000 | 1200 | IF=350mA |
We have different brand and size chip for your referrence, please feel free to contact with us.
Packing Method
Normal packing weight: 0.005kg/pcs ，0.141kg/a carton

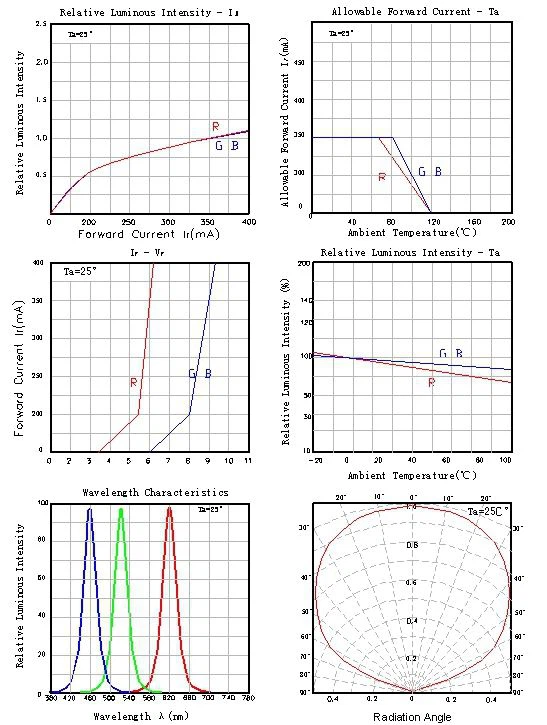

Typical Optical/Electrical Characteristics Curves(Ta=25℃ Unless Otherwise Noted )
