RoHS Approved 3535 UV LED 365nm

RoHS Approved 3535 UV LED 365nm

Item Name: 3W UV LED Chip 365NM
Model Number: GP-3WUV-G45-365
Input Current: 700mA
Input Voltage: 3-3.4VDC
LED package type: K2 LED emitter
Chips brand: TAIWAN EPILEDS
Chip size: 45*45mil
Brightness: 0-5LM
Color: Ultraviolet 365-375nm

  • Description

    To create more value for 5050 SMD LED CHIP Lumens 24LM, 5m rgb 5050, 3w led in watts. Quality and safety are always our top priorities, and this principle guides our entire product development. Our scientific research achievements can be effectively transformed into our productivity.

    Product Specs

    Power LEDs (White and Various Colors) Option Guide:

    Golden White: 1800-2000K, 2000-2200K, 2200-2400K (585-595nm)

    Warm White LED : 2400-2600K, 2600-2900K, 2900-3200K, 3000-3500K

    Natural White/Pure White LED:4000-4500K 5000-5500K

    Cool White:6000-6500K, 6500-7000K

    Cold White: 7000-9000K, 9000-15000K, 15000-25000K

    UV LED/Violet LED: 360-370nm; 370-380nm; 380-390nm; 390-400nm;

    400-410nm; 410-420nm; 420-430nm

    Royal Blue LED: 440-450nm Bright Blue LED: 460-470nm

    Cyan LED: 490-495nm

    Turquoise/Traffic Green LED: 500-510nm Emerald Green LED: 520-530nm

    Yellow LED: 585-595nm Amber/Orange LED: 595-610nm

    Bright Red LED: 620-630nm Deep Red LED: 640-660nm


    Product Name

    3W UV LED Chip 365NM

    Product Model

    GP-3WUV-G45

    Power Dissipation

    3W

    Light Color

    UV Lights

    Forward Voltage

    3.0-3.4V

    Viewing Angle

    60° /120°

    Forward Current

    350-700mA

    Operating Temperature

    -40~+60 ℃

    Radiant Flux

    600-1400mW

    Storage Temperature

    -40~+85 ℃

    Wavelength

    365, 380nm, 405nm

    Soldering Temperature

    260℃


    1

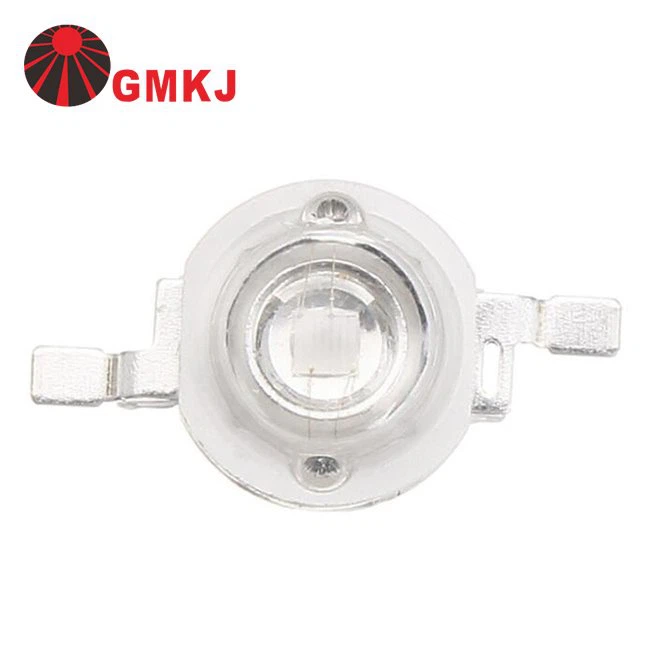

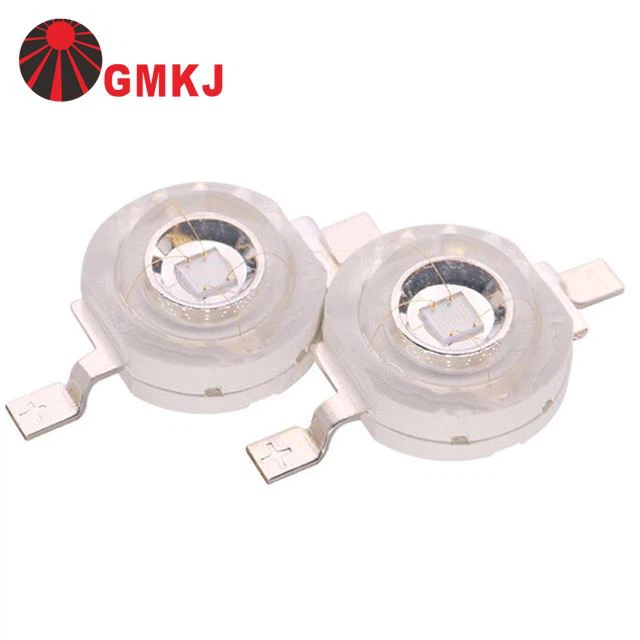

    Product Photo

    2

    Application

    3

    Why Choose GMKJ

    Shenzhen Guangmai Electronics Co., Ltd (also known as GMKJ LED, established in 2009), headquartered in Shenhzen, is one of China's leading LED packaging manufacturer with rich experience in LED Lighting industry. GMKJ LED, with strong R & D development and manufacturing integrated in-house, is a professional and dynamic manufacturer specializing in COB LED 2-400W, Power LEDs 1-100W, SMD LEDs, Color LEDs 275-940nm etc, which are widely applied to general lighting, horticulture, studio lighting, landscape & architectural lighting and stage lighting.

    4

    5


    GMKJ Details

    ·One of biggest R&D technical team of worldwide LED manufacturers. A strong R&D team of more than 40 experienced engineers.

    ·Launch highly-competitive new products seasonally.

    ·Revolutionary launch for a full series of high power & flip chip led & compact high power SMDs.

    ·Extensive Application Experience & Quality Commitment

    ·Strict control over raw materials selection.

    ·3 Years Warranty at least.

    ·Reliable long life span; Good Quality Raw Material.

    ·More than 10 years' experience in LED Chips Field.

    ·Supported many government lighting projects.

    ·Professional Sales Team backing up with top experienced engineers in LED Chips field.

    ·Best Quality & Best Price & Best Service.

    ·Professional customization and OEM service.


    We have a comprehensive quality management system and are fully capable of customizing and developing a variety of new RoHS Approved 3535 UV LED 365nm according to our customers' needs. We pay attention to every customer service process, serve with heart and treat customers with sincerity. Our company has a wealth of production experience, set up their own plant, can effectively control the quality, especially guaranteed.
