0.2W 0.5W 1W Red Blue Green Amber 2835 LED

Product Introduction:

0.2W 0.5W 1W Red Blue Green Amber 2835 LED is single color 2835 smd leds.

We make with 0.2w 60mA, 0.5W 150mA and 1w 300mA specs. About the color, we make those color smd leds with red 620-630nm, amber 585-595nm, green 520-530nm and blue 455-465nm.

The forward voltage of green and blue is 3-3.4vdc. Red and amber has different input voltage 2-2.4vdc.

We are mainly pack with Taiwan Epistar chips or China Sanan chips brand in this 2835 smd leds. It depends on the crystals cost.

Product name	0.2W 0.5W 1W Red Blue Green Amber 2835 LED
Color	red 620-630nm green 520-530nm Blue 455-465nm amber 585-595nm
Power	0.2W with 60mA 0.5W with 150mA 1W with 300mA
Input voltage	Green and blue: 3-3.4vdc Amber and red: 2-2.4vdc
Chips brand	China Sanan chips or Taiwan Epistar chips
Warranty	5 years
Note	red and yellow has opposite pad and polarity compared with green and blue smd leds

---

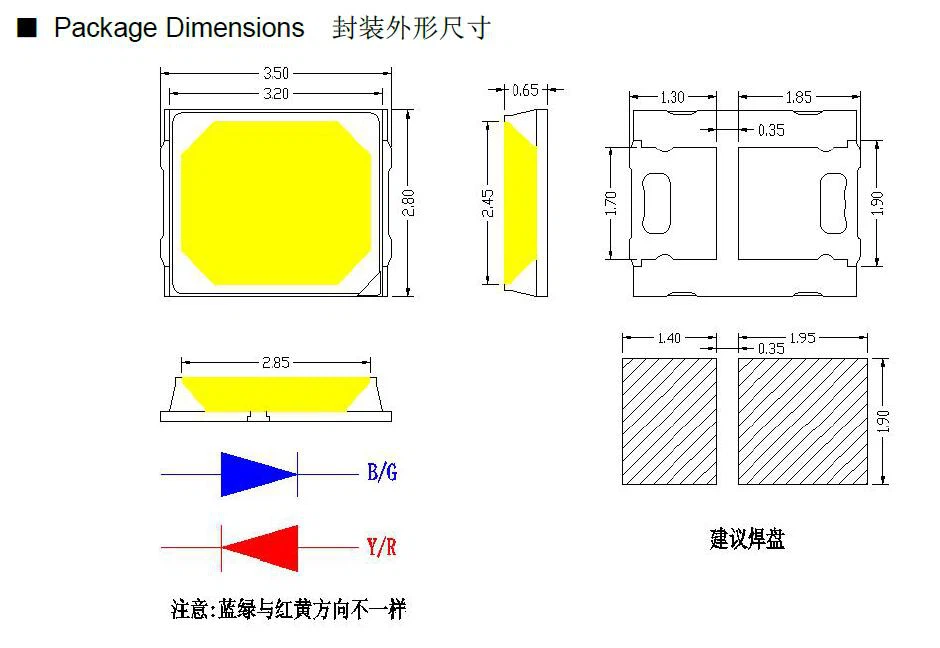

0.2W 0.5W 1W Red Blue Green Amber 2835 LED technical specs:

---

0.2W 0.5W 1W Red Blue Green Amber 2835 LED Application:

Panel / Soft Lights
Wall Grazer
Linear
Wall Wash
Decorative
Retrofit Lamps
Landscape Lighting

---

About GMKJ LED

Guangmai Technology Co., Ltd (Known as GMKJ LED), with more than 10 years of innovations and field tests, is a professional LED Chip solutions company that helps customers to get the highest levels of performance in LED Lighting. We manufacture best in class LEDs including SMD LED, COB LED, High Power LED, UV LED, IR LED, PCB design and SMT service, which are widely applied to various applications such as general lighting, horticulture, sterilization, studio lighting, landscape & and architectural lighting.

Our LEDs are approved with LM-80 and RoHS EN62471/IEC62471. Excellent quality and reliability of products with reasonable price is what we always pursue and stick to. Our staff are very professional and hard-working to provide deep expertise and attentive service to our esteemed customers around the world. Moonlight shines all over the world and we devoted ourselves to making the world brighter, safer and more colorful.

---

GMKJ LED service:

· Reply your inquiry within 12 working hours
· We are a collection R&D, production and service as one of the high-tech enterprises.
· Strict quality control procedures before shipment.
· Customized design is available.OME and ODM are welcomed
· Full range of LED products available.
