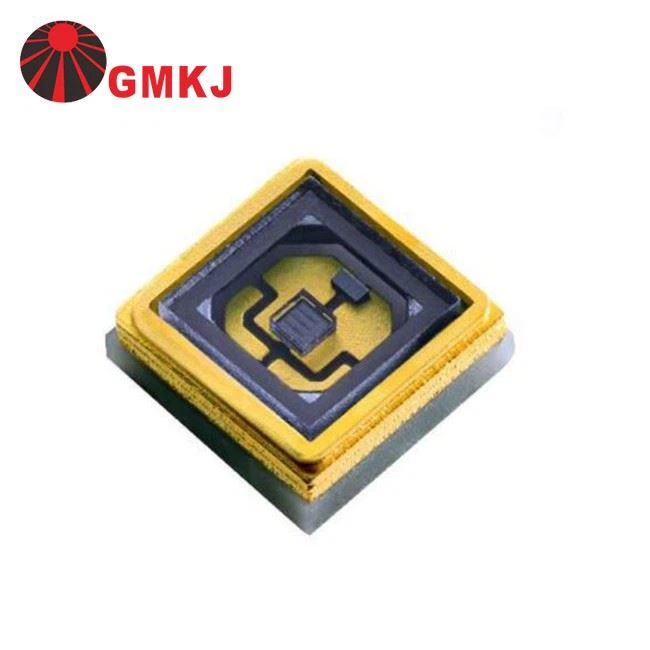

High power 1W 270nm uvc led for germicidal Equipment
●Ceramic SMT package with quartz glass
●Dimension (L x W x H) in mm: 3.5 x 3.5 x 1.37
●Forward current: 50-100mA
●Radiant power (typ.) - 3.5mW at 50mA
●Viewing Angle (2θ1/2): Typical 125°
●Built in ESD Protection device
●275-280NM
Product Application
●Sterilization
●Disinfection
●Chemical and Biological analysis
●Phototherapy
●Fluorescent Spectroscopy
●Counterfeit Detectors
●Irradiance
Product Dimension
Product Specification
Electrical/Optical Characteristics--White (At TA=25°C)
Parameter | Symbol | Conditions | Min | Avg. | Max | Units |
Forward Voltage | VF | IF=150mA | 5 | -- | 8 | V |
Thermal Resistance Junction To Board | RΘJ-B | IF=150mA | -- | 8 | -- | °C/W |
Radiant Flux | Φe | IF=150mA | 8 | 10 | mW | |
Peak wavelength | λp | IF=150mA | 265 | 285 | nm | |
Temperature Coefficient of Forward Voltage | ∆VF/∆T | IF=150mA | −− | -2 | −− | mV/°C |
Reverse Current | IR | VR=5V | −− | −− | 10 | μ A |
Viewing Angle [1] | 2Θ1/2 | IF=60mA | −− | 60 | −− | Deg |
Typical Optical/Electrical Characteristics Curves
SMT REFLOW SOLDERING INSTRUCTION
Shipping Method
●Order Qty<10000pcs, 3-5 workdays.Delivery time:
●Order Qty>10000pcs, 7-12 workdays.
●Order Qty>50000pcs,12-20 workdays.
Production Flow
Questions about UVC LED and COVID-19
Question 1: What is the difference between a blacklight and a bluelight?
A "blacklight" is a fluorescent light tube that emits at about 365 nm - this is just below the wavelengths that humans can see, but it is absorbed by most pigments in clothes so that they "fluorescence". This is the effect seen in many bars and discos.
I'm not sure what you mean by a "bluelight" - perhaps you means "germicidal" low-pressure mercury lamp. They do glow "blue", but most of their output is at 254 nm, so DO NOT look directly at such a lamp when it is operating. These lamps are used in air and water disinfection, since the 254 nm light is absorbed by DNA in bacteria and viruses causing their inactivation.
Question 2: I am familiar with the Fenton's Reagent (hydrogen peroxide + iron salts at pH ~4 to destroy phenol in wastewaters. Why I do not see any data or publications on the use of Fenton's Reagent as an antimicrobial? The hydroxyl radical is so strong; it should kill microbes.
Yes, Fenton's reagent would be very effective as an antimicrobial treatment of wastewater. The antimicrobial effect would probably arise more from the low pH (Fenton's works best at a pH of about 3) than from the generation of ·OH radicals.
It is more a question of economics. Lowering the pH to 3-4 is very costly and increases the dissolved solids level of the water. I think that you would find that UV disinfection would be a much cheaper process that Fenton's treatment.
Our Other Product hot sale
Company Environment
Shenzhen Guangmai Electronics Co., Ltd. is a high-tech enterprise engaged in 3030, 5050 ultra-high brightness SMD LED and high-power LED products. GMKJ LED has 10,000-level purification, anti-static packaging and assembly workshops, using ASM automatic production equipment, and the monthly output of LEDs can reach 30KK. The company operates strictly in accordance with the IS09000 system to ensure that every product is provided with cost-effective products for customers. Products are mainly exported, all products are CE, RoHS, FCC, UL and other certification standards.
Q&A
Q: Can I get free sample?
A: Yes, we can offer free sample for you to check before order as long as you afford the express freight. After check the samples, we will deduct the freight in your bulk order.
Q: What’s the lead time?
A: Samples delivery out in 3-7 working days, Mass production needs to negotiated, depends on the quantity.
Q: How do you ship the goods and how does it take to arrive?
A: Usually, the small package will the ship by DHL, UPS, FedEx or TNT, it usually takes 3-5 working days to arrive, and for big order, we can also ship by ocean which takes about 15-30 days to arrive.
Q: How about the payment terms?
A Payment terms: TT in advance (30% of deposit before production and 70% balance before shipment), bank transfer, Paypal, L/C etc. Please note we do EXW/FOB/CNF/CIF/DDU/DDP.
If you need more details of High power 1W 270nm uvc led for germicidal Equipment, please contact us!
