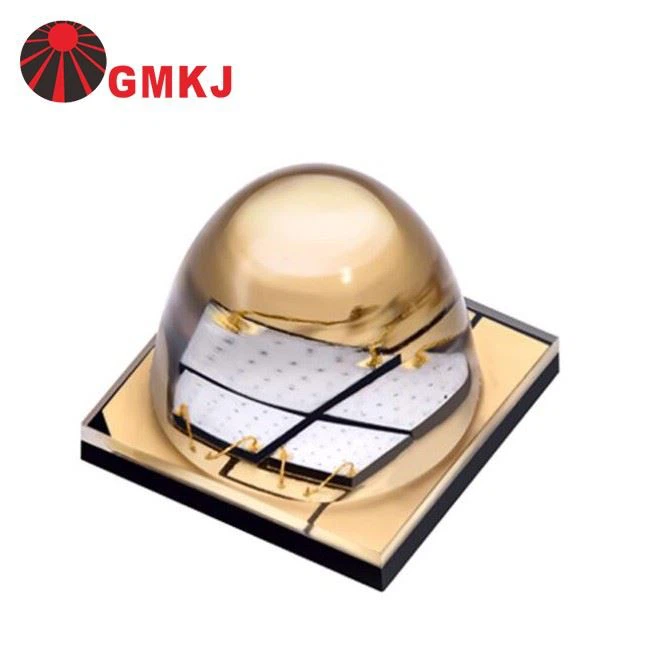

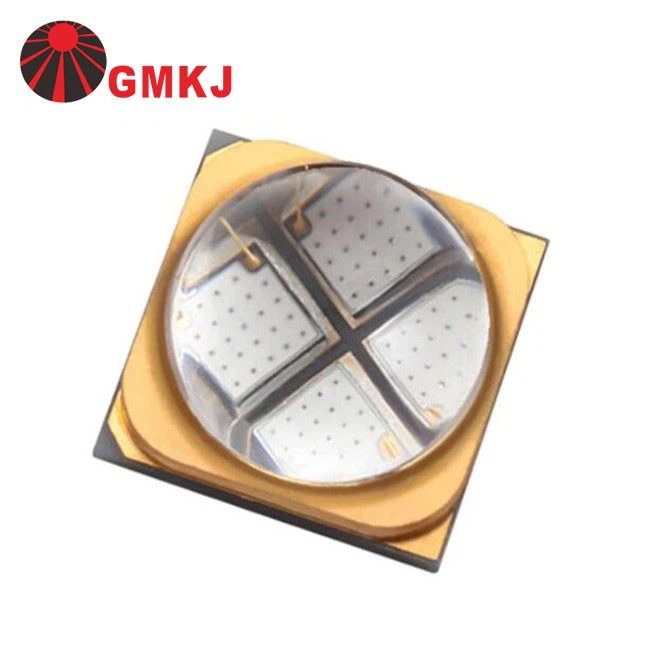

UV LED 5050 Four Chips 10W 18W UVA LED 365nm 375nm 380nm 400nm For UV Printer

Production Introduction

Item	UV LED 5050 Four Chips 10W 18W UVA LED 365nm 375nm 380nm 400nm for UV Printer
Type	5050 SMD LED
Power	1W 3W 8W 10W 15W 18W
Input Voltage	DC 6-7V
Forward Current	1000mA
Viewing Angle	120 degrees
Wavelength	365nm 370nm 375nm 385nm 400nm
Application	1. Sterilization 2. Anti-counterfeiting 3. Beauty Manicure 4. Jewelry Inspection 5. Medical Phototherapy 6. Cured Printing

Features

UV LED 5050 Four Chips 10W 18W UVA LED 365nm 375nm 380nm 400nm for UV Printer

1. UV Wavelength Range: 255-280nm, 300-320nm, 365-420nm

2. Molding Encapsulation Technology

3. High Purity Ceramic Base

4. Imported UV resistant silica gel

5. Branded LG UV Chip,Epileds UV Chip

6. High Radiation Power up to 2000mW

7. 60°, 120° Beam Angle for 3535, 5050 UV Series

8. High Power 10-18W UV LED

Application

UV LED 5050 Four Chips 10W 18W UVA LED 365nm 375nm 380nm 400nm for UV Printer

1. Sterilization

Packaging container sterilization, food surface sterilization, air sterilization of food production line/cosmetic

production line, sewage/drinking water sterilization.



2. Anti-counterfeiting

Horizontal and vertical money counters.



3. Beauty Manicure

Phototherapy manicure, phototherapy beauty.



4. Jewelry Inspection

Jade testing, jewelry testing.



5. Medical Phototherapy

Cavity treatment inspection, dental curing, dermatological treatment, environmental surface disinfection, air disinfection.



6. Cured Printing

Lithographic printing curing, inkjet printing curing, label printing curing, web printing curing.

Why Us

1. Using 99.99% pure gold wire

2. Chip package

3. High brightness

4. High color consistency

5. Support customized solutions

Related Knowledge

UVC 100nm to 280nm

1) Usually does not penetrate the earth's Ozone layer.

2) The UVC wavelength is the most germicidal in the UV spectrum. It targets the DNA of microorganisms, causing cell

death or making replication impossible.

3) UVC energy kills or inactivates microbes. Extreme care must be taken when using UVC germicidal lamp.



UVB 280nm to 315nm

1) Affects the top layer of skin.

2) Causes most sunburns.

3) Damages DNA in a person's skin.

4) Burns unprotected skin in as little as 15 minutes.



UVA 315nm to 400nm

1) Accounts for 95 percent of the UV radiation that reaches the earth's surface.

2) Using in tanning beds, speed up the curing of polymers and printer inks, bank note forgery detection...

3) Causes wrinkles and premature ageing of skin.

4) Penetrates clouds and glass windows.

5) UV light can also help maintain a healthy growing environment by reducing mold, mildew, and certain plant pests.
