2018 Newest High Quality Slim Round LED 6W Ceiling Lights

2018 Newest High Quality Slim Round LED 6W Ceiling Lights

Item Name: 2835 SMD LED Chip Lumens 70LM
Model Number: GS-2835-0.5W-70LM
Input Current: 150mA
Input Voltage: 3-3.4VDC
LED package type: PCT 2835 PKG
Chips brand: CHINA SANAN
Chip size: 26*30mil
Brightness: 70-75LM
Color: 6000-6500K
CRI: 80

  • Description

    Based on the principle of honest management, we are aggressive and pioneering, constantly developing new cob led flip, blue power led, RED COB LED 30W 100W Diode 620nm 660nm and mature market channels, and have earned an excellent corporate reputation. With sincerity and sweat, we will win your satisfaction and trust. Our company's development philosophy is 'pursuing excellence' and 'continuously creating high-quality products.' We expand the domestic and foreign markets with the principle of 'quality first, timely delivery, reasonable price, and high-quality service', and sincerely welcome wise people from all over the world to work together for a better future.

    Specification

    We have a lot of different 2835 package here.

    0.2W 0.5W and max 1W power rated available here.

    Also except 3VDC input type, we have 6V, 9V and 18V input here.

    9V and 18V is used for make the AC LED pcba boards.

    2835 LED SERIES SPECIFICATION

    Product Name

    Light Color

    CCT/Wavelength

    Voltage

    Current

    Lumen

    Remark

    0.2W 2835 LED

    Gold Yellow

    1800-2000K

    2.8-3.4V

    60mA

    24-30LM

    CRI80,90

    0.2W 2835 LED

    White

    3000-6500K

    2.8-3.4V

    60mA

    24-34LM

    CRI80,90,96+

    0.5W 2835 LED

    White

    3000-6500K

    2.8-3.4V

    150mA

    55-75LM

    CRI80,90,96+

    1W 2835 LED

    White

    3000-6500K

    6/9/18/36V

    150/100/50/30mA

    90-150LM

    High Voltage Series

    2835 UV LED

    UV

    365-410nm

    3/6/9V

    60/150/175/100mA

    /

    0.2W, 0.5W, 1W

    2835 Blue LED

    Blue

    440-470nm

    3/6/9V

    60/150/175/100mA

    4-20LM

    0.2W, 0.5W, 1W

    2835 Green LED

    Green

    520-530nm

    3/6/9V

    60/150/175/100mA

    18-80LM

    0.2W, 0.5W, 1W

    2835 Amber LED

    Yellow/Amber

    590-610nm

    2/4/6V

    60/150/175/100mA

    6-20LM

    0.2W, 0.5W, 1W

    2835 Red LED

    Red

    620-630nm

    2/4/6V

    60/150/175/100mA

    8-30LM

    0.2W, 0.5W, 1W

    2835 Far Red

    Far Red

    660-665nm

    2/4/6V

    60/150/175/100mA

    3-12LM

    0.2W, 0.5W, 1W

    2835 IR LED

    IR

    730-750nm

    2/4/6V

    60/150/175/100mA

    /

    0.2W, 0.5W, 1W

    2835 IR LED

    IR

    850nm

    2/4/6V

    60/150/175/100mA

    /

    0.2W, 0.5W, 1W

    2835 PC Blue

    Phosphor Blue

    450-470nm

    3/6/9V

    60/150/175/100mA

    6-30LM

    0.2W,0.5W,1W

    2835 PC Green

    Phosphor Green

    510-530nm

    3/6/9V

    60/150/175/100mA

    18-120LM

    Customized WD,WP

    2835 PC Color

    Phosphor Amber/Red

    600-630nm

    3/6/9V

    60/150/175/100mA

    10-60LM



    1

    Product Name

    2835 SMD LED Chip Lumens 70LM

    Product Model

    GS-2835W-70

    Power Dissipation

    0.5W

    Color Rendering Index

    70

    Forward Voltage

    3V

    Viewing Angle

    120°

    Forward Current

    150mA

    Operating Temperature

    -40~+60 ℃

    Luminous Flux

    70-75LM AT 120mA

    Storage Temperature

    -40~+85 ℃

    Color Temperature

    3000-6000K

    Soldering Temperature

    260℃

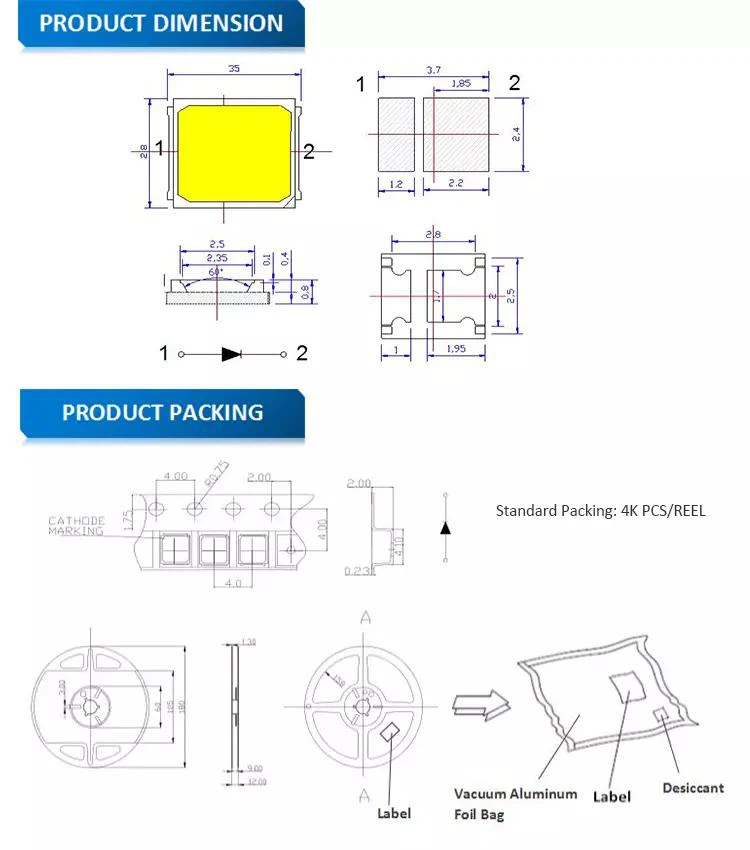

    2835 SMD LED CHIP Dimension Data

    2

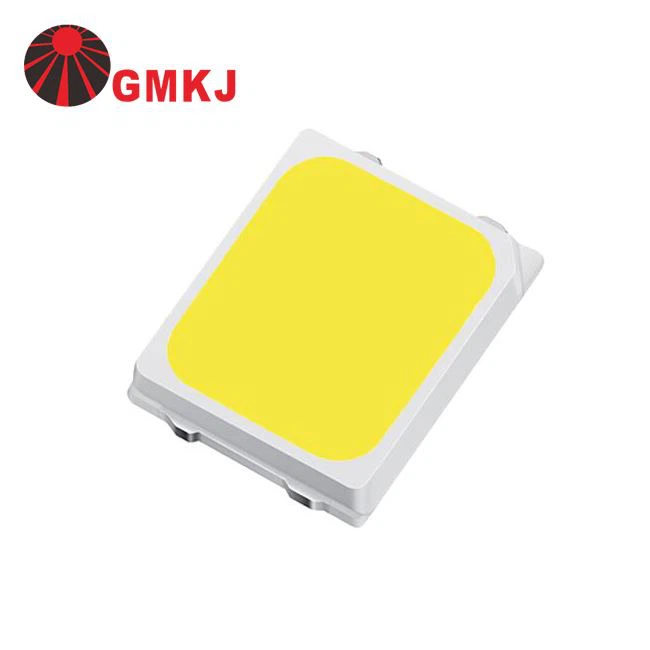

    2835 SMD LED CHIP Clear View

    3

    GMKJ main products includes COB LED, flip chip COB LED, 3030 SMD LED, EMC 5050 SMD LED, ceramic 3535 SMD LED, 1-5W K2 High Power Emitter, Horticultural full spectrum LEDs, LED PCBA and LED modules with lens. GMKJ provides full-range of technical and professional support for LED light source design, solutions and lighting applications.

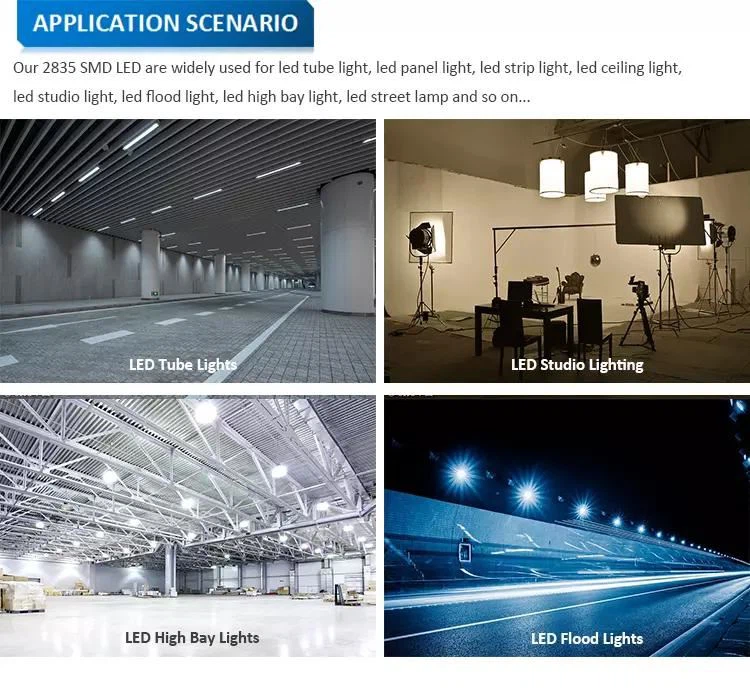

    2835 SMD LED Chip Application

    4

    Our Advantages

    Competitive Advantages of our LEDs:

    1. Good quality guarantee, 50000 hours lifespan, 2-5 years warranty.

    2. Professional engineers and experienced workers.

    3. Short delivery time, normally 1-7 working days.

    4. Customized specifications available in CCT, CRI, Lumen, VF, Color , etc.

    5. Various module type, such as SMD LED, 1-5W high power LED , 1-1500W integrated LED.

    56

    Our Service

    7


    Strong R&D Forces

    One of biggest R&D technical team of worldwide LED manufacturers. A strong R&D team of more than 40 experienced engineers.

    World standard CNAS Accredited Laboratory.

    Launch highly-competitive new products seasonally.

    Revolutionary launch for a full series of high power & high integration ceramic flip chip led & compact high power SMDs.


    · Reply your inquiry within 12 working hours

    · Well-trained and experienced staffs to answer all your inquiries in fluent English.

    · Strict quality control procedures before shipment.

    · Customized design is available.OME and ODM are welcomed

    · Delivery the goods to our customer all over the world with speed and precision.


    Strict quality management, mature and excellent technology and advanced and complete testing means are the reliable guarantee of the quality of our 2018 Newest High Quality Slim Round LED 6W Ceiling Lights. Over the years, China's society has changed with each passing day and the economy has continued to develop rapidly. We ensure the establishment of quality objectives, conduct management reviews, and ensure the availability of resources.
