RGB 50W SMD LED Module for Flood Light Specs
| Product name | RGB 50W SMD LED Module for Flood Light |
| Part number | GS-50WRGB-8S6P-J8B8 |
| Chips brand | China Sanan chips |
| Manufacturer brand on Label |
GMKJ LEDs Manufactured by Guangmai Technology Co., Ltd in Shenzhen China |
| Input |
Each color Ifmax 600mA Red 16-20vdc; Green: 22-26vdc; Blue: 24-28vdc; Common anode, with each color seperately control |
| Luminous/ Radiant Flux |
Red 480-560lm; Green 880-960lm; Blue 240-320lm; |
| Lighting Efficiency | Around 50 lm/w |
| Wavelength/Color |
Red 620-630nm; Green 520-530nm; Blue 460-465nm; |
| Power | 50W |
| Package material |
Thickness 1.6mm aluminum pcb board substrated; With 48 pcs 3030 smd leds soldered on pcb boards; Each color 16 pcs leds |
| Lighting angle |
120 degree lighting angle |
| Price | Please contact with GMKJ for the price and more details |
| Min order quantity |
Depends on the stock availablity: If we have ready to ship stock, then even 100 pcs with samples test purpose is acceptable here. If no stock, then we need min order quantity with at least 1500 pcs. |
| Warranty | 4 years |
| OEM service |
1. SKD parts available; 2. Customised LED array with the size you need is OK here. |

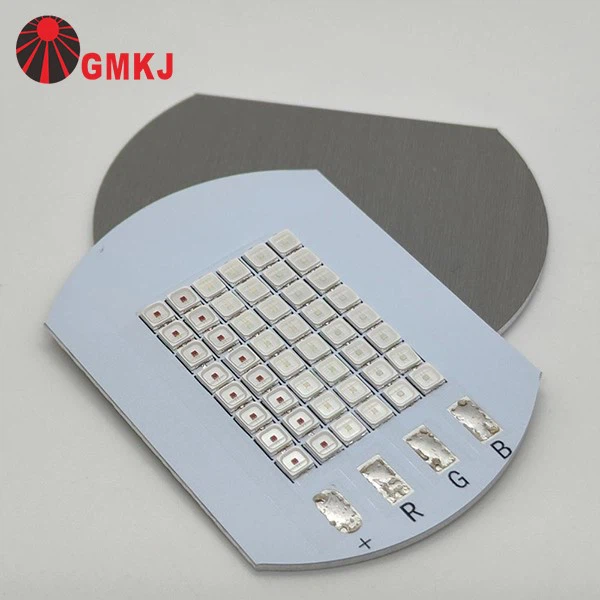

RGB 50W SMD LED Module for Flood Light Picture
|

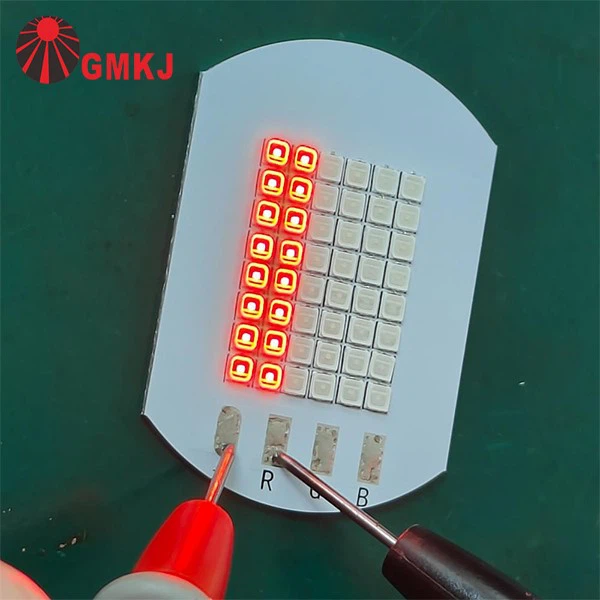

Red color lighting on (not full power loaed) |
 |
|
Green color lighting on (not full power loaed) |
 |
|
Blue color lighting on (not full power loaed) |
 |
RGB 50W SMD LED Module for Flood Light Dimension
RGB 50W SMD LED Module for Flood Light Electrical Specs
|
Parameter |
Symbol |
Conditions |
Emitting Color |
Values |
Units |
||
|
Min |
Avg. |
Max |
|||||
|
Forward Voltage |
VF |
IF=600mA |
R |
16.0 |
-- |
20.0 |
V |
|
G |
24.0 |
-- |
28.0 |
||||
|
B |
22.0 |
-- |
26.0 |
||||
|
Luminous Flux |
Φv |
IF=600mA |
R |
480 |
-- |
560 |
lm |
|
G |
880 |
-- |
960 |
||||
|
B |
240 |
-- |
320 |
||||
|
Dominant wavelength |
λd |
IF=600mA |
R |
620 |
-- |
630 |
nm |
|
G |
520 |
-- |
530 |
||||
|
B |
455 |
-- |
465 |
||||
|
Temperature Coefficient of Forward Voltage |
∆VF/∆T |
IF=600mA |
−− |
−− |
-2 |
−− |
mV/°C |
|
Reverse Current |
IR |
VR=40V |
−− |
−− |
−− |
10 |
μ A |
|
Viewing Angle |
2Θ1/2 |
IF=600mA |
−− |
−− |
120 |
−− |
Deg |
|
Thermal Resistance Junction To Soldering Pad |
RΘJ-s |
IF=600mA |
−− |
-- |
8 |
-- |
°C/W |
Looking for More details
You can download the datasheet from this page for related LEDs.
If you need more details like price, min order quantity, stock status and lead time, please contact with GMKJ LEDs directly!
We are always here for you!
