Specification
GMKJ main products includes COB LED, flip chip COB LED, 3030 SMD LED, EMC 5050 SMD LED, ceramic 3535 SMD LED, 1-5W K2 High Power Emitter, Horticultural full spectrum LEDs, LED PCBA and LED modules with lens. GMKJ provides full-range of technical and professional support for LED light source design, solutions and lighting applications.
|
Product Name |

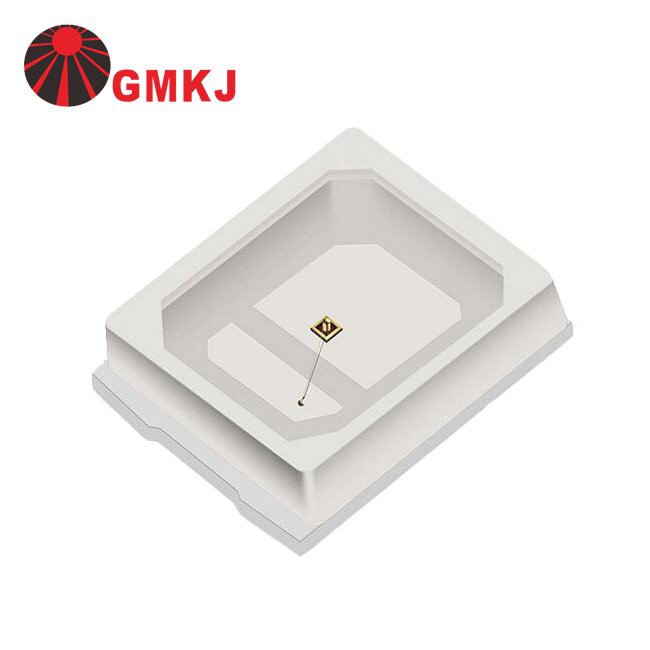

395nm SMD 2835 UV LED |
Product Model |
GS-28350.2W-UV |
|
Power Dissipation |
0.5W |
Light Color |
UV-A |
|
Forward Voltage |
2.8-3.4V |
Viewing Angle |
120° |
|
Forward Current |
150mA |
Operating Temperature |
-40~+60 ℃ |
|
Luminous Flux |
3-4LM |
Storage Temperature |
-40~+85 ℃ |
|
Wavelength |
390-400nm |
Soldering Temperature |
260℃ |
We have a large variety of different colors of 2835 SMD LEDs.
If you need any from below list, please contact with us!
|
2835 UV SMD LED SERIES SPECIFICATION |
||||||
|
Product Name |
Light Color |
CCT/Wavelength |
Voltage |
Current |
Lumen |
Remark |
|
0.2W 2835 LED |
Gold Yellow |
1800-2000K |
2.8-3.4V |
60mA |
24-30LM |
CRI80,90 |
|
0.2W 2835 LED |
White |
3000-6500K |
2.8-3.4V |
60mA |
24-34LM |
CRI80,90,96+ |
|
0.5W 2835 LED |
White |
3000-6500K |
2.8-3.4V |
150mA |
55-75LM |
CRI80,90,96+ |
|
1W 2835 LED |
White |
3000-6500K |
6/9/18/36V |
150/100/50/30mA |
90-150LM |
High Voltage Series |
|
2835 UV LED |
UV |
365-410nm |
3/6/9V |
60/150/175/100mA |
/ |
0.2W, 0.5W, 1W |
|
2835 Blue LED |
Blue |
440-470nm |
3/6/9V |
60/150/175/100mA |
4-20LM |
0.2W, 0.5W, 1W |
|
2835 Green LED |
Green |
520-530nm |
3/6/9V |
60/150/175/100mA |
18-80LM |
0.2W, 0.5W, 1W |
|
2835 Amber LED |
Yellow/Amber |
590-610nm |
2/4/6V |
60/150/175/100mA |
6-20LM |
0.2W, 0.5W, 1W |
|
2835 Red LED |
Red |
620-630nm |
2/4/6V |
60/150/175/100mA |
8-30LM |
0.2W, 0.5W, 1W |
|
2835 Far Red |
Far Red |
660-665nm |
2/4/6V |
60/150/175/100mA |
3-12LM |
0.2W, 0.5W, 1W |
|
2835 IR LED |
IR |
730-750nm |
2/4/6V |
60/150/175/100mA |
/ |
0.2W, 0.5W, 1W |
|
2835 IR LED |
IR |
850nm |
2/4/6V |
60/150/175/100mA |
/ |
0.2W, 0.5W, 1W |
|
2835 PC Blue |
Phosphor Blue |
450-470nm |
3/6/9V |
60/150/175/100mA |
6-30LM |
0.2W,0.5W,1W |
|
2835 PC Green |
Phosphor Green |
510-530nm |
3/6/9V |
60/150/175/100mA |
18-120LM |
Customized WD,WP |
|
2835 PC Color |
Phosphor Amber/Red |
600-630nm |
3/6/9V |
60/150/175/100mA |
10-60LM |
|
Package dimension

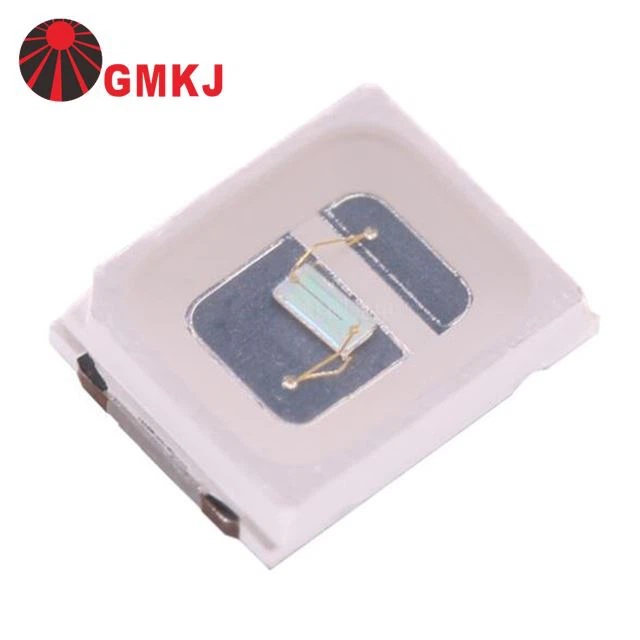

LED Clear Picture

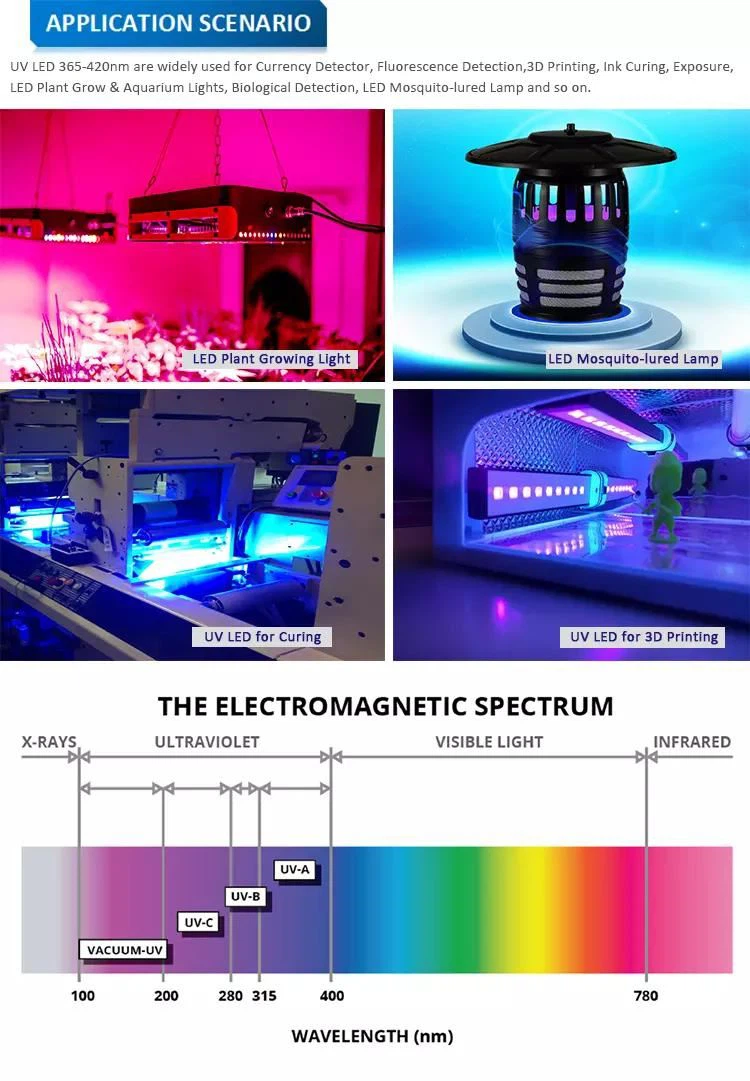

Application

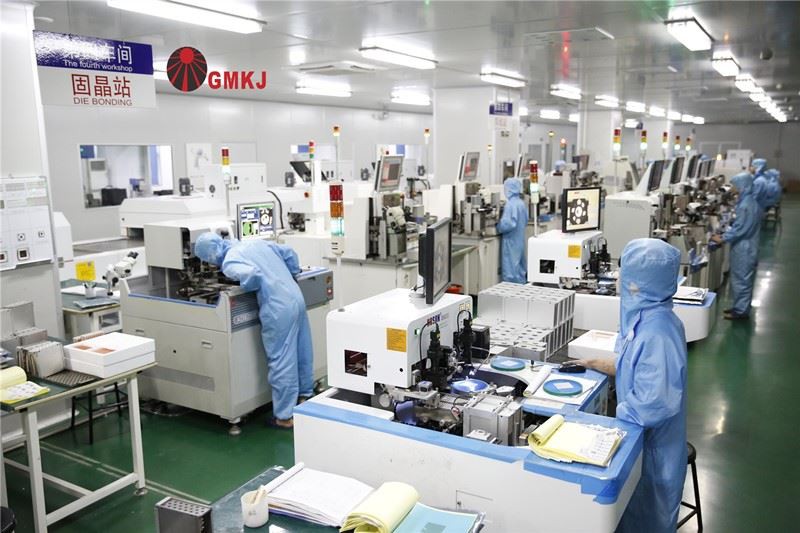

About GMKJ
Shenzhen Guangmai Electronics Co., Ltd. specializes in the production and operation of high-power + UV LED violet curing light source products, the production of high-power UV LED violet packaging productionPinda has hundreds of species. The power range of products ranges from 0.5W to 10000W. The UV LED purple packaging products produced by GMKJ are various, including printing presses, printing press.
Pre-Cautions
1)Soldering Conditions
Number of reflow process shall be less than 2 times and cooling process to normal temperature is required between first and Second soldering process.
2)Static Electricity
It is recommended that a wrist band or an anti-electrostatic glove be used when handling the LEDs.All devices, equipment and machinery must be properly grounded.Damaged LEDs will show some unusual characteristics such as the forward voltage becomes lower, or the LEDs do not light at the low current. Criteria : (VF > 2.0V at IF=0.5mA)
3)Moisture Proof Package
It is recommended that moisture proof package be used .
4)Storage
Before opening the package ,The LEDs should be kept at 30°C or less and 70%RH or less. The LEDs should be used within a year.
After opening the package, The LEDs should be soldered within 24 hours (1days) after opening the package
Shipment
FAQ
Q: What’s your product range?
A:Our main products include:
·COB LED 2-400W
·Compact SMD LED 0.06W-5W
·Integrated Flip Chip LED Module 3-500W
·Power LED 1-5W
·R.G.B LED or RGB/RGBW LED 1-100W
Q: If there is LED failure, how can you support?
A:Customers provide pictures of the failed products or the samples rejected, the engineer will analyze the failure and find out
the reasons. If the failure was caused by the product quality, we will compensate with qualified replacement!
Q: What technical support can I get after purchase?
A:Data sheet and operation manual will be provided to dear you. Our sales engineer will be answering your questions any time.
