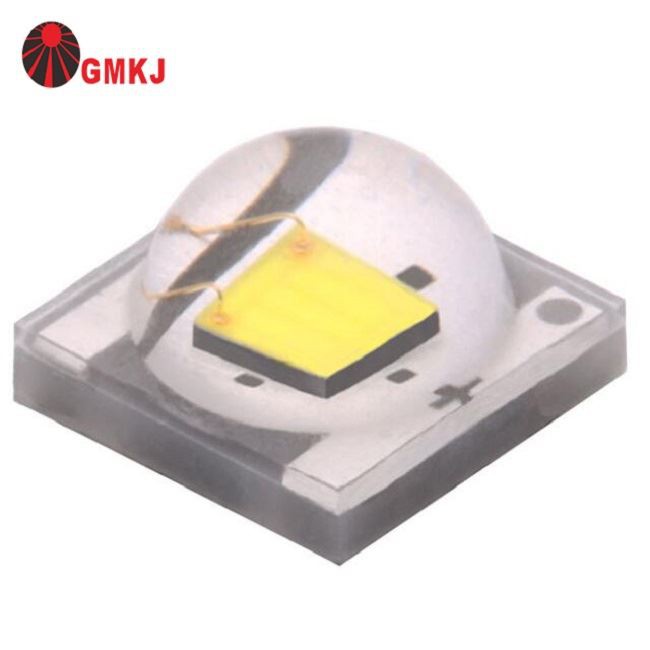

3535 SMD LED 6V
●Made by dual chips of Bridgelux2345mil
●6V DC Voltage easier for circuit design.
●Enable new design previously not possible.
●Higher efficiency, average heat dissipation.
●Use high thermal conductivity ceramic base
●Low cost and high efficiency up to 170lm/w
●Just only need 40% cost of CREE Xlamp led.
●Suitable for wall washer light, automobile lamp.
Product Specification
Electrical/Optical Characteristics--White (At TA=25°C)
Parameter | Symbol | Conditions | Min | Avg. | Max | Units |
Forward Voltage | VF | IF=150mA | 5.80 | -- | 6.0 | V |
Thermal Resistance Junction To Board | RΘJ-B | IF=150mA | -- | 8 | -- | °C/W |
Luminous Flux | Φv | IF=150mA | 150 | 170 | lm | |
Color Temperature | CCT | IF=150mA | 5500 | 6000 | K | |
CRI | Ra | IF=150mA | 70 | -- | -- | -- |
Temperature Coefficient of Forward Voltage | ∆VF/∆T | IF=150mA | −− | -2 | −− | mV/°C |
Reverse Current | IR | VR=5V | −− | −− | 10 | μ A |
Viewing Angle [1] | 2Θ1/2 | IF=150mA | −− | 120 | −− | Deg |
More Specifications
Packing Method
Normal packing Quantity: 1000pcs/reel in vacuum bag.

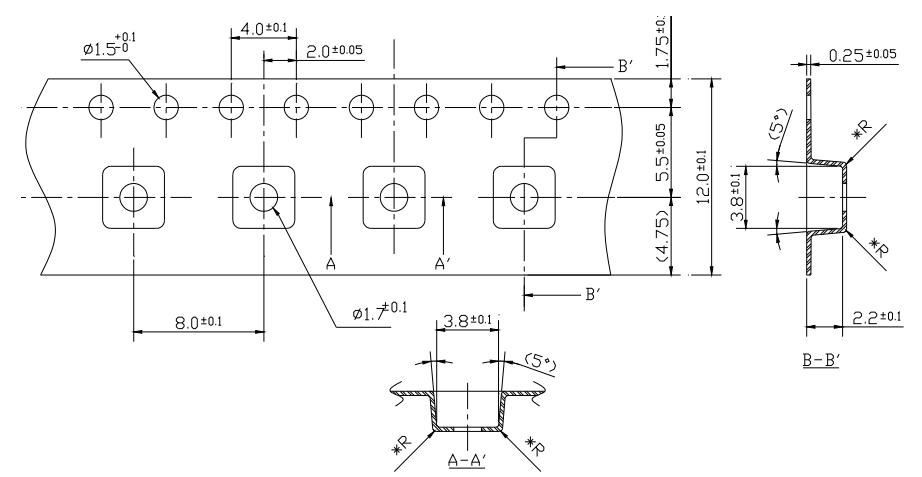

Reel Specifications:
Shipping Method
Delivery time:
Order Qty<500.000pcs, 3-7 workdays.
Order Qty>500.000pcs, 7-12 workdays.
Order Qty>2000.000pcs,12-20 workdays.
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
Material&Equipment Supplier
Company Introduction
Guangmai Electronics Co., Ltd. Specialize in LED Production From 2009.
Main products are 3535 SMD LED, 3030 SMD LED, 5050 SMD LEDS, 2835 SMD LEDS, COB LEDS, HIGH POWER LEDS,
Since 2010 We are the Top 10 LED packaging factory in Shenzhen, and Top 100 LED company in China.
You can Rely On Us About The Service and Quality .
Welcome to visit our headquarter and production base in Shenzhen for business negotiation.
GM Company Service
1. 3-4 Years quality guarantee for high power cool white led chip
2. unconditional return back if unsatisfied with quality.
3. Provide lowest cost for goods' shippments.
4. Provide customized color temperature and CRI if needed.
5. Provide full data sheet and test report for every order every item.
6. Provide CE,SGS,Rohs,UL,ISO9001 ,LM-80 CERTIFICATE.
7. Provide enough market and prices info for other accessories for your lamp manufacturers.
8. Provide PCB desgin and 1watt LED soldering and other OEM severices if suctomers need.
9. Provide VIP SPECIAL discounts for big orders and long-term cooperation customers.
We are able to supply you with high quality and highly efficient Factory Supply 365nm 385nm 395nm 405nm 275nm UVC Ficha UV LED 2W SMD 3535 5050 6868 3V 6V UV LED Chip for UV Inkjet Printer PARA TV LG since we have experienced technicians and skilled workers. Over the years, our company has been taking users' demand as the development direction of the company. While focusing on the domestic market, we are also actively exploring the overseas market. Relying on professional R&D technology, diversified and high-quality products and fast and thoughtful service system, our company continues to meet and exceed the growing needs of customers.
