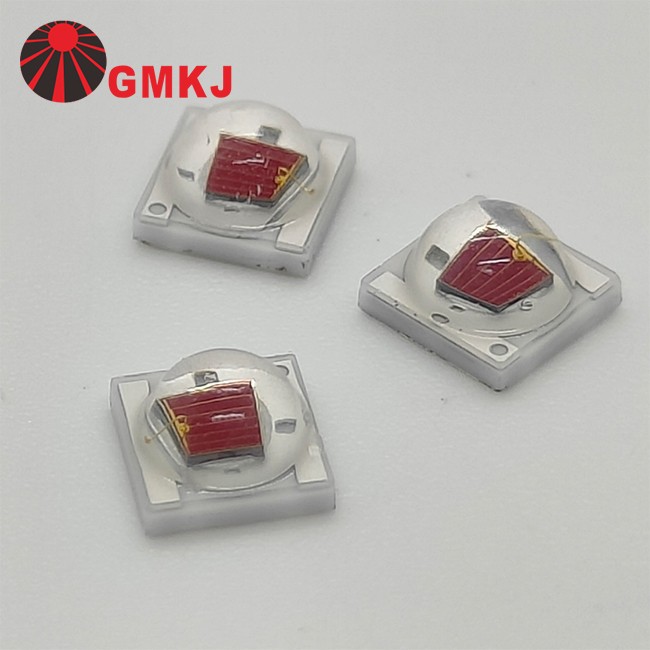

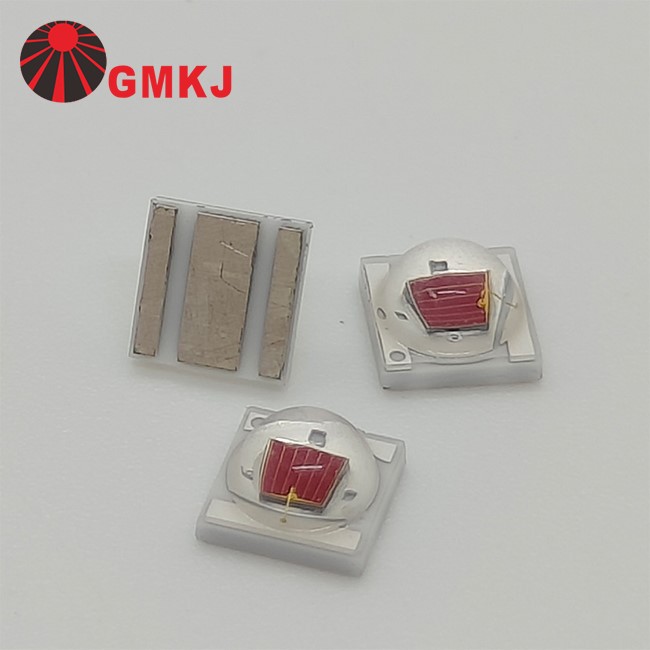

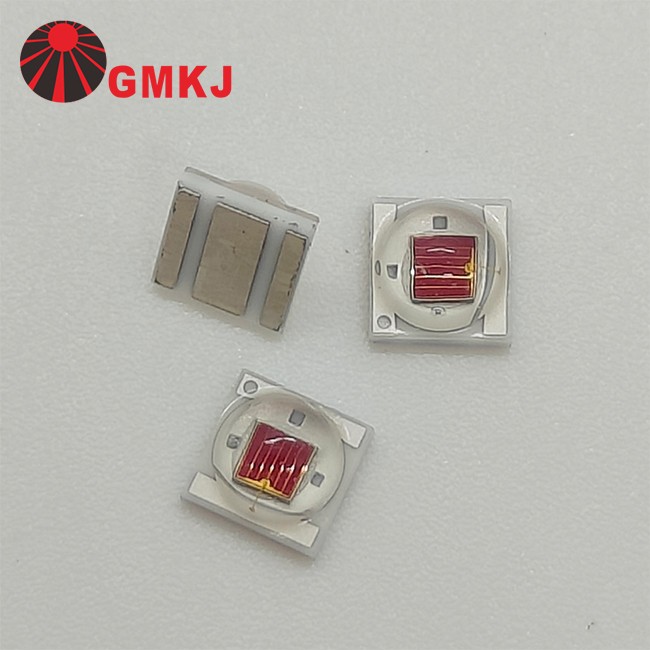

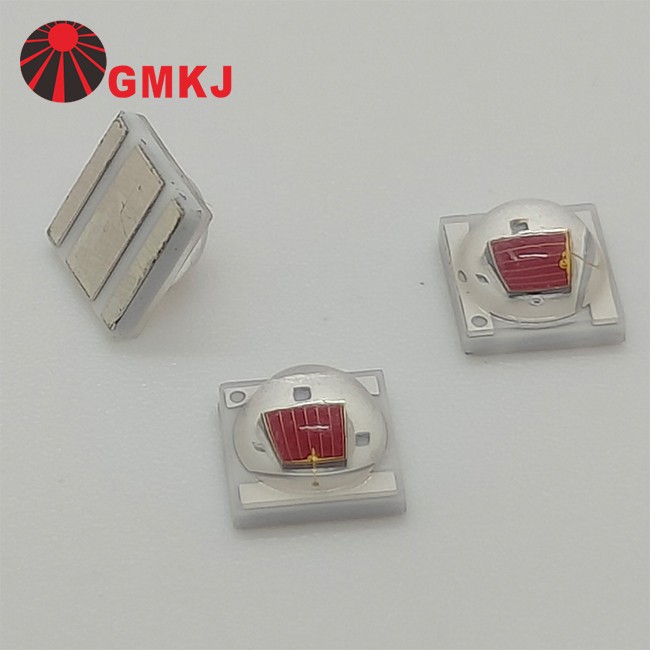

High Power 3535 LED 590nm Spectral Light for Industrial Optics
| Part Number |
GTY-3535Y590-1CC0-S1C8M
|
| Peak Wavelength | 590nm |
| Power rating | 3W |
| Package Type | 3535 Ceramic |
| Viewing Angle | 30° / 60° / 90° / 120° |
| Forward Current | 700mA |
| Applications |
Industrial Lighting Systems Vision Inspection Applications |
| Luminous Flux | 100-120lm at 700mA |
|
|
|

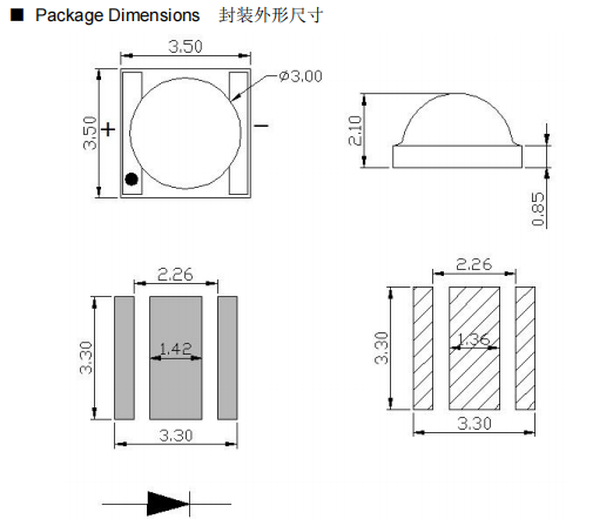

Mechanical Dimensions of 590nm 3535 LED

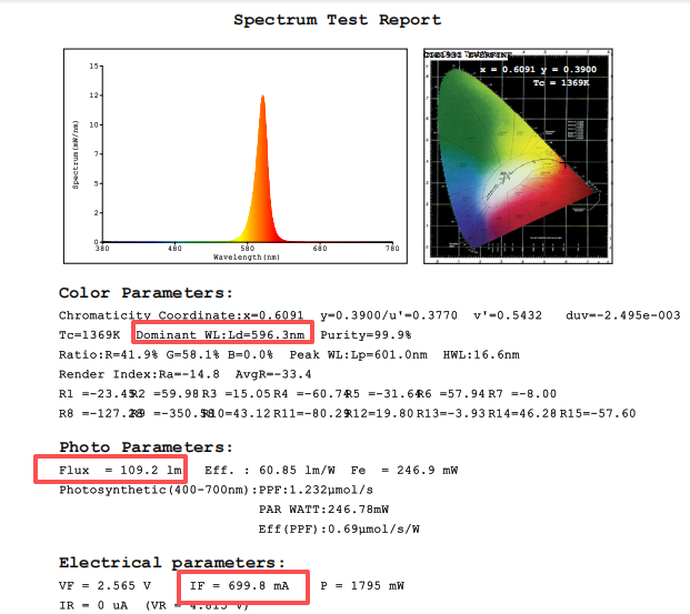

Optical Parameters of 590nm Spectral LED
|
Parameter |
Symbol |
Conditions |
Min |
Avg. |
Max |
Units |
| Forward Voltage (Vf) |
VF |
IF=700mA |
2.00 |
-- |
2.40 |
V |
|
Thermal Resistance Junction To Board (热阻) |
RΘJ-B |
IF=700mA |
-- |
6.5 |
-- |
°C/W |
|
Luminous Flux (流明) |
Φe |
IF=700mA |
100 |
-- |
120 |
LM |
|
Peak wavelength (峰值波长) |
λp |
IF=700mA |
590 |
-- |
595 |
nm |
|
Temperature Coefficient of Forward Voltage (正向压降之温度系数) |
∆VF/∆T |
IF=700mA |
−− |
-- |
−− |
mV/°C |
|
Reverse Current (反向漏电流) |
IR |
VR=5V |
−− |
−− |
10 |
μ A |
|
Viewing Angle [1] (发光角度) |
2Θ1/2 |
IF=700mA |
−− |
120 |
−− |
Deg |
Applications of 590nm Spectral Illumination
590nm amber light delivers stable visual effect, perfectly suited for industrial indication and professional lighting solutions.
Typical application scenarios:
Equipment status & panel indication
Industrial signal and warning light systems

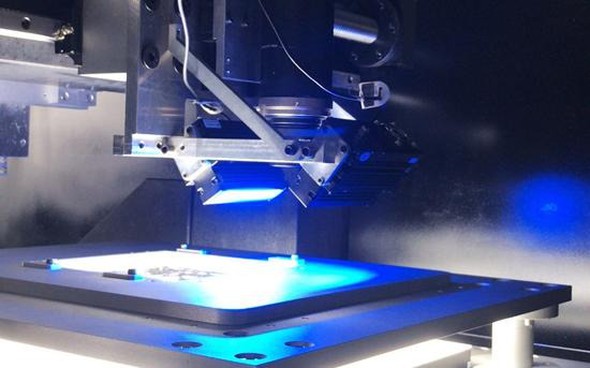

Precision optical detection lighting
Plant growth supplementary illumination
Stage & landscape decorative lighting
Medical beauty and physiotherapy light modules
Technical details and configuration options for the 590nm 3535 LED are available according to different optical application requirements.
GMKJ can also support customized beam angles and PCB configurations for industrial lighting projects.
