Full Spectrum 640W 600W LED Grow Light Lm301b 301h Mixing 660nm 730nm LED Strip Hydroponics Growing Light

Based on the premise of technological innovation and improvement of our Color SMD LED, uv 395nm, cree smd5050, we continue to surpass and improve ourselves, and have been supported and trusted by our customers. The successful experience of our company is to strictly follow the commercial principle and perfect the market operation principle, which makes our company operate efficiently. The company insists on technology development as the driving force, product quality as the foundation, and excellent service as the guarantee of customers, so as to return customers' consistent trust and support to us. We have established the concept that 'market changes are the direction of the enterprise, and the needs of users are the goal of the enterprise'. We will serve the needs of users with advanced technology, quality and reputation. We believe that when competing in the same industry, we should pay more attention to the core value of the customer's business philosophy, rather than just product prices.

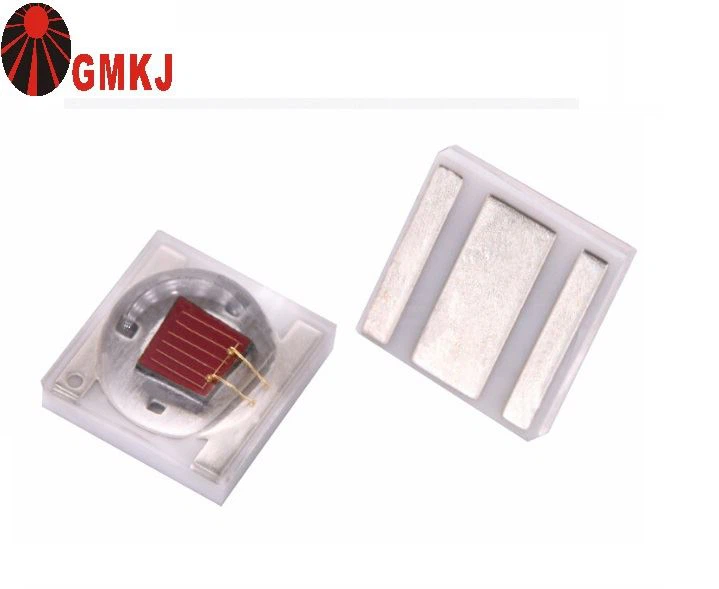

730nm LED 3535 SMD

●Made up by Original Osram LED Die.

●Dimension (L x W x H) in mm:3.5x3.5mm

●Max Input Current up to 1000mA

●High Radiant power up to 800mw each LED

●Oxide aluminum base with excellent heat dissipation ability.

●Viewing Angle (2θ1/2): Typical 120°

●Economy LEDs for LED plan Grow light.

●Low light attenuation less than 3% over 10000hrs.

●EN62471,LM80,Rohs Approved

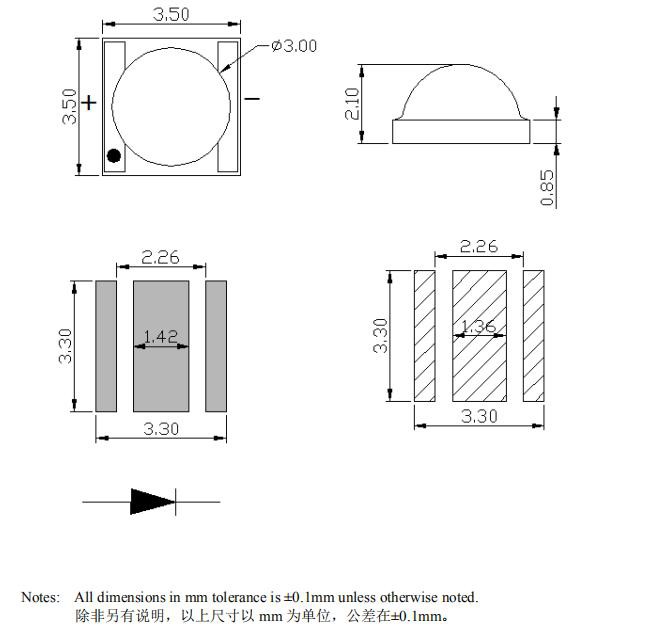

Product Dimension

Product Specification

Absolute Maximum Ratings(At TA =25℃)

Electrical/Optical Characteristics--White (At TA=25°C)

Product Application

Deep red 730nm LED for Plan Grow light.

TheFar red led 730nm SMD 3030 is especially beneficial during bloom phase, promoting large bud growth and healthy flowers. 730nm is very close to the absorbance maxima of chlorophy a. Many LED grow lights are deficient in 730nm red. Use this light to enhance and correct your light spectrum.

There are two effects of 730nm far-red LEDs on plants

1. Shadow avoidance of far-red light at 730nm

One of the most important effects of 730nm far-red illumination on plants is shade avoidance.

If a plant is exposed to the only 660nm of deep red light, it will feel as if it is under direct sunlight and will grow normally. If the plant is mainly illuminated by the far-red light of 730nm, the plant will feel as if it is blocked by the direct sunlight by another higher plant, so the plant will work harder to break through the blocking, which is to help the plant grow taller, but does not necessarily mean that there will be more biomass (biomass).

2. Flowering induction effect of 730 nm far-red light

Another important role of 730nm far-red light in horticultural lighting applications is that the flowering cycle can be controlled by 660nm and 730nm illumination without relying solely on the influence of the season, which is of great value for ornamental flowers.

The conversion of Pfr to Pfr is mainly induced by the 660nm deep red light (representing the sunlight during the day), while the conversion of Pfr to Pr usually occurs naturally at night and can also be stimulated by the 730nm far-red light.

It is generally believed that the control of plant flowering by photosensitive pigments mainly depends on the ratio of Pfr/Pr. Therefore, we can control the Pfr/Pr value by 730 nm of far-red light irradiation, so as to control the flowering cycle more precisely.

3. Customized lighting formula for LED plants

LEDs are used in horticultural lighting and can boost plant growth by up to 40 percent or help control flowering. Because the single LED is independent, it can control the lighting performance in the greenhouse easily.

Photosynthetic Photon Flux LED itself (Photosynthetic Photon Flux, PPF) light efficiency is very high, deep blue (450 nm) and far-red light (730 nm) typical PPF LED lights at around 2.3 umol/J, super red (660 nm) typical PPF LED lights at around 3.1 umol/J, coupled with the wavelength of these a few LEDs and chlorophyll a/b, carotenoids and phytochrome Pr/(Pfr) absorption spectra is very match, can achieve efficient lighting and significantly reduce energy consumption.

LEDs do not emit heat in the direction of illumination and do not damage the plants, and are suitable for top lighting, interior lighting, and multi-layer cultivation, etc. The R/FR ratio is the ratio of red light (660 nm) to far-red light (730 nm). The R/B ratio is the ratio of red light (660 nm) to blue light (450nm). Through the control of R/FR ratio and R/B ratio, the optimal customized light formula for various plants can be achieved.

In order to improve the lighting for plants, Xinjia can provide unique customization services according to the type of plants and the choice of customers.

What do LEDs offer in horticulture market?

• Efficacy:

Efficacy can be twice as good as with HPS lamps (>3.0 mmol/J)

• Reliability:

Fixture-level reliability is limited by driver and other

Components

• Flexibility:

Large range of visible spectrums can be covered.

Other SMD LED hot sale

All Color LEDs we make

Shipping Method

Delivery time:

●Order Qty<10000pcs, 3-5 workdays.

●Order Qty>10000pcs, 7-12 workdays.

●Order Qty>50000pcs,12-20 workdays.

Some notices about shipping:

(1) China Post mail delivery time is around 15-22 days (some need around 30 days), please kindly be a little patient while waiting for your parcels.

(2) You also consider other Express (UPS, DHL, FedEx, TNT or EMS) 2 to 8 days delivered.

(3) Please contact us at once if there are any aberrant mails.

(4) Please do send us your suggestions as you know something better than us. We would appreciate your good ideas.

(5) If you bid our China Post free shipping items, we ONLY transport via China POST. We would perform our duties same as what we have agreed.

(6) We are not responsible for any custom duty or import tax.

(7) We would try our best to satisfy you but no any unreasonable requirements please.

Ther Product hot sale

Business Partner

Company Environment

Shenzhen Guangmai Technology Co., Ltd has delivered the best quality LED components to different lighting application for clients under our strong technological support, professional management system and perfect & stable supply chain system. ‘Doing business with utmost integrity that even makes the GMKJ-LED move’ is our company’s philosophy throughout daily operations. Our LEDs (SMD LED, High Power LED,COB LED) apply to Plant Growing Lighting, Film Lighting, Beauty &Manicure, UV Curing, Exposing, Stage Lighting, Infrared Sensor and Landscape Lighting and so on. And we got unparalleled customer trust level around the domestic and oversea marketing for over years. GMKJ-LED’s 10 years, thank you very much for the attention and support.

Below are our main advantage:

·Top 100 LED Chip manufacturer in China

·Obtained 200+ patents

·10000+ square meters

·SGS, TUV, BV, ISO9001 audited factory

·300+ employees

·30+ production lines: SMD workshop, COB workshop, SMT workshop

·100KK SMD LED per month

·3KK COB LED per month

Q&A

Q: What’s your product range?

A:Our main products include:

·COB LED 2-400W

·Compact SMD white /RGB / UV ,IR LED 0.06W-5W

·Integrated Flip Chip LED Module 3-500W

·High Power Power LED 1-5W

·R.G.B LED or RGB/RGBW LED 1-100W

Q: Which type of wavelength you have ?

Now we have basically full range of wavelength such as:

UVC : 265-280nm

UVB: 300-320nm

UVA:365-370nm, 395-405nm

RED: 620-630nm, 650-660nm

GREEN: 520-530nm

BLUE: 450-460nm;460-470nm

AMBER:590-595nm; 600-605nm

INFRARED:730-740nm, 850-860nm,930-940nm

Q: Would you offer free samples?

A:Yes, We would offer free samples for P02 LED (1W high power LED, 6 pins 3W RGB LED), 3030 SMD LED, 5050 SMD LED, 3535 RGB LED,

3535 RGBW LED, etc.

Q:Are you manufacturer or trade company?

A:We are an experienced and professional LED manufacturer since 2005.

Q:What payment method do you accept?

A:We accept T/T, Paypal, Western Union and others more as clients’ requirement.

Q: What about the lead time?

A:It depends on the order quantity. In general, lead time is about 5-7 working days. For samples, the delivery could be as fast as

same day.

Q: How can I get a quotation from you?

A:Please kindly leave us messages about your needs,including products and quantity,our professional team will reply you very soon

(mostly within few hours).

Q: What’s the highest efficiency of your smd led.

A: For SMD5050 LED, highest efficiency is 220lm/w.

For SMD3030 LED, the highest efficiency is 200lm/w .

For SMD2835 LED, the highest efficiency is 195lm/w

Q: Would you offer free samples?

A:Yes, for SMD LED, we can offer free sample 10-50pcs for testing purpose.

For high power led, we can offer 1-10pcs free sample for testing.

For COB LEDs, we can offer 1-5pcs free sample for testing purpose.

In general, the free sample value we offer is around 5-10USD.

If u need more qty,pls contact with us for further discussion.

Q:Are you manufacturer or trade company? How many Years experience do u have in this industry.

A:We are professional LED Packaging factory with over 4000㎡ production base in Shenzhen,China. Since 2008, we open the factory and make our brand GMKJ a TOP100 LED enterprise since 2010. you are welcome to visit us for business negotiation or and arrange third party field audit.

Q: what’s your mainly market . which product is the most hot sale in your company.

A: Right now we have around 60% domestic business in Mainland China.other 40% of oversea business is mainly from Countries like USA, France. Russia, Poland, Argentina. India Turkey and some other middle east countries.

Currently the hot sale product are high efficiency SMD led, such as SMD5050 LED, SMD3030 LED, and SMD3535 LED in White color and other colors such as uv, ir, rgb.

Besides of this ,cob led form 10-100watt is also very welcome by our old clients.

Guangmai Company Support:

1. TOP 100 LED in China , high-quality LED leader

2. First choice in lighting project, specializing in high power LED, SMD, COB and integrated LED

3. Owning the perfect color matching system that makes lighting color perfect. Imported high-end LED chip, reaching higher light efficient, more energy efficient

4. Professional engineering consulting services, to solve your lighting problems, while providing you with the OEM services for led light and pcb with led.

To create much more benefit for Full Spectrum 640W 600W LED Grow Light Lm301b 301h Mixing 660nm 730nm LED Strip Hydroponics Growing Light. We sincerely welcome domestic and foreign merchants who calls, letters asking, or to plants to negotiate, we will offer you quality products and the most enthusiastic service, We look forward to your visit and your cooperation. We can give full play to the enthusiasm of the staff, achieve efficient work and improve the productivity of our company.
