Product Specs
Item name: Aluminum LED PCB Board Soldering Service
Place of Origin: ShenZhen, China
Model: GMKJ-PCBA LED
MOQ: 1000 piece
PCB Design & Layout
» Excellent Expertise in design tools: Allegro, Pads, and Mentor Expedition.
» High density SMT designs (BGA, uBGA, PCI, PCIE, CPCI…)
» Flex PCB designs of all sorts
» Complete assembly drawings
» In-Circuit Test data generation (ICT)
» Drill, panel and cutout drawings designed
» Professional fabrication documents created
» High-speed, multi-layer digital PCB designs- Bus routing, differential pairs, matched lengths; Fast PCB design in 2-3 days.
» Concentrate on the PCB design Wi-Fi Module, BLE Module, GPS Tracking application.RF Modules,Medical-Care devices,LED PCB Boards.
» We come up with the design as per customer requirement,and take care for the RAW material cost at the outset of design.
» Full control for the PCB design, from requirement, Schematic, PCB Layout, SI/PI/EMI inspection, we will locate the design issues in the inspection processing.
PCB layer | 1, 2, 4 or 6, up to 18 layers |
Board shape | Rectangular, round, slots, cutouts, complex, irregular |
Board type | Rigid, flexible, rigid-flexible |
Board material | FR-4 glass epoxy, FR4 High Tg, RoHS compliant; Aluminum, Rogers, etc. |
Board cutting | Shear, V-score, tab-routed |
Board thickness | 0.2 ~ 4.0 mm (±10%), Flex board: 0.01 ~ 0.25″ (±10%) |
Copper weight | 1.0, 1.5, 2.0 Oz (tolerance ±0.25 oz) |
Solder mask | Double-sided green LPI, Also support red, white, yellow, blue, black |
Silk screen | Double-sided or single-sided in white,yellow, black, or negative |
Silk screen min. line width | 0.006″ or 0.15mm |
Max board dimension | 20 inch *20 inch or 500mm*500mm |
Min. trace/gap | 0.10mm, or 4 mils |
Min. drill hole diameter | 0.01”, 0.25mm, or 10 mils |
Surface finish | HASL, Nickle, Imm Gold, Imm Tin, Imm Silver, OSP etc. |
Min.slot width | 0.12”, 3.0 mm, or 120 mils |
V-score depth | 20-25% of board thickness |
Plated through holes | Yes |
Design file format | Gerber RS274X, 274D, Eagle and AutoCAD’s, DXF, DWG, Protel 99se |
Different types of Assembly
THD (Thru-Hole Device)
SMT (Surface-Mount Technology)
SMT & THD combined
2-sided SMT and THD assembly
Order Volume Allowed
1 to 5,000 boards
Parts
Passives parts, smallest size 0201
Fine pitch to 8 Mils
BGA, uBGA, QFN, POP and Zero-Lead chips
Connectors and terminals
Component Package
Reels
Cut tape
Tube and tray
Loose parts and bulk
PCB Board Measurements
Minimum measurement: 0.2″ x 0.2″ (5mm x 5mm)
Largest dimension: 15″ x 20″ (381mm x 508mm)
Pictures

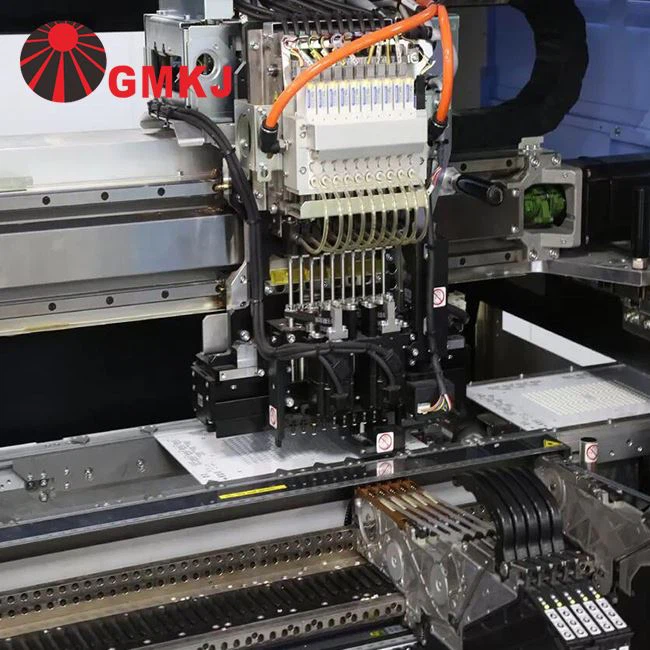

YAMAHA SMT MACHINES
