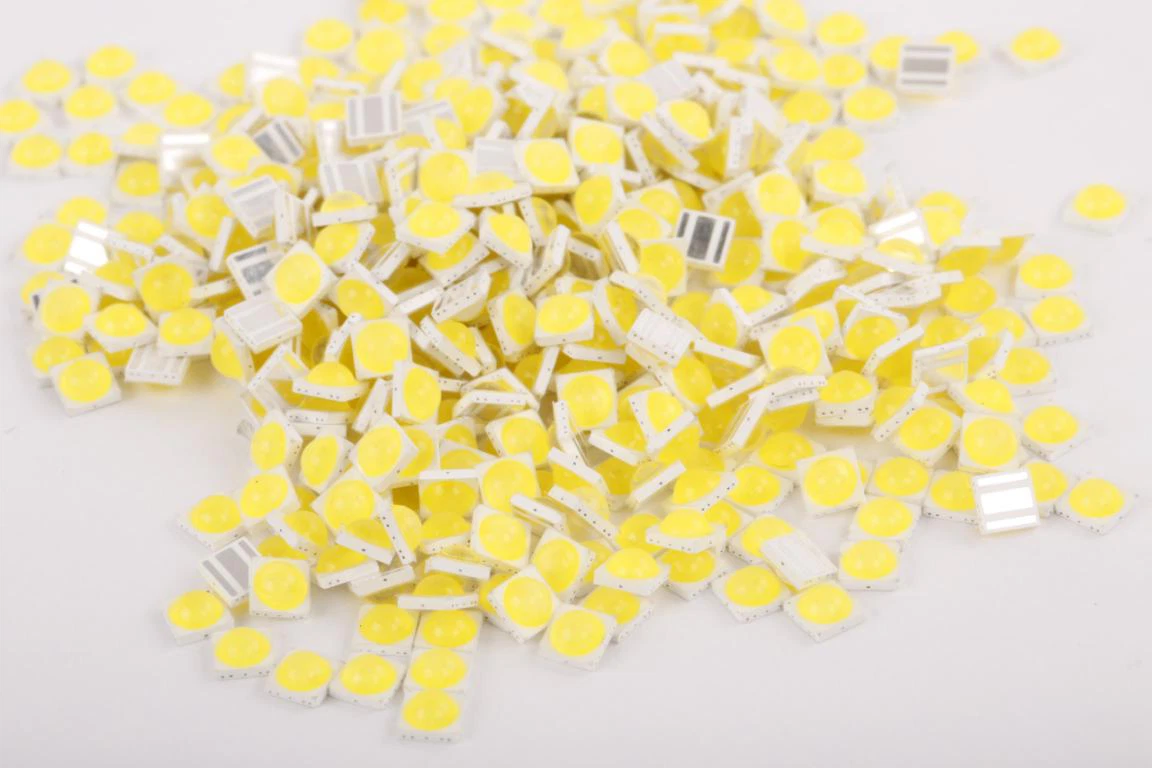

SMD 3535 1W 165lm
●New Generation of price &performance for light-class LEDs.
●NHigh performance,high reliability.
●Low cost and high efficiency up to 178lm/w
●Improved optical uniformity
●Enable dramatically lower system cost
●Available in full range CCT 2000-20000K
●CE, Rohs,FCC,LM-80 certificate approved.
●Small Size high lumen density,easier for product design.
●Suitable for wall washer light, Street light ,automobile lamp.

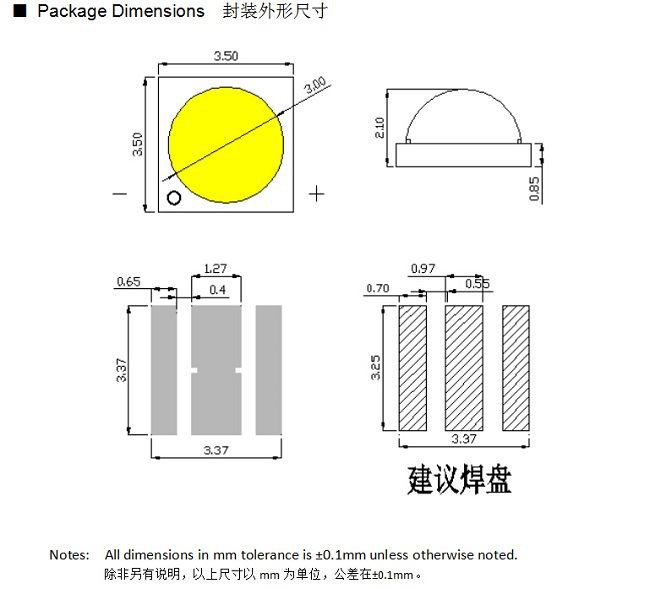

Packaging Dimension
Product Specification
Absolute Maximum Ratings(At TA =25℃)
Parameter | Symbol | Typical values | Peak values | Unit | |
DC Forward Current | IF | 350 | 700 | 1000 | m A |
Peak pulse Current* | IFP | 1500 | 1500 | 1500 | m A |
Power Dissipation | PD | 5 | 5 | 5 | W |
Reverse Voltage | VR | 5 | V | ||
Reverse Current | IR | 10 | μ A | ||
Operating Temperature Range | TOPR | -30 ~ +75 | °C | ||
Storage Temperature Range | TSTG | -40 ~ +85 | °C | ||
LED Junction Temperature | TJ | 120 | °C | ||

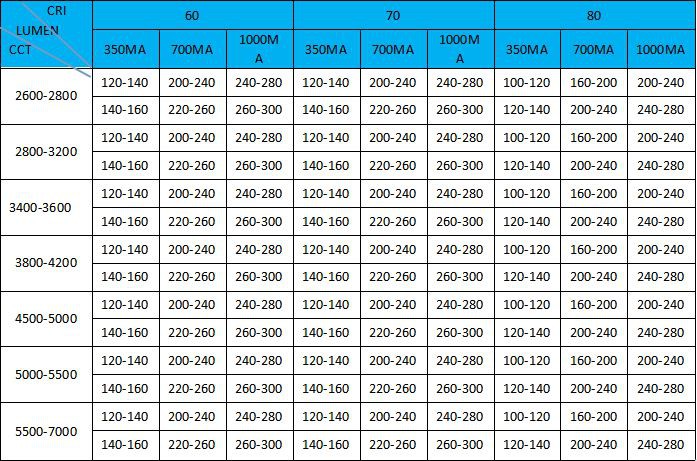

Electrical/Optical Characteristics--White (At TA=25°C)
Parameter | Symbol | Conditions | Unit | |||||
350mA | 700mA | 1000MA | ||||||
Min | Max | Min | Max | Min | Max | |||
Forward Voltage | VF | 2.80 | 3.20 | 3.00 | 3.40 | 3.60 | 4.00 | V |
Thermal Resistance | RΘJ-B | 8 | °C/W | |||||
Viewing Angle [1] | 2Θ1/2 | 120 | Deg | |||||
Packing Method
Normal packing Quantity: 1000pcs/reel in vacuum bag.

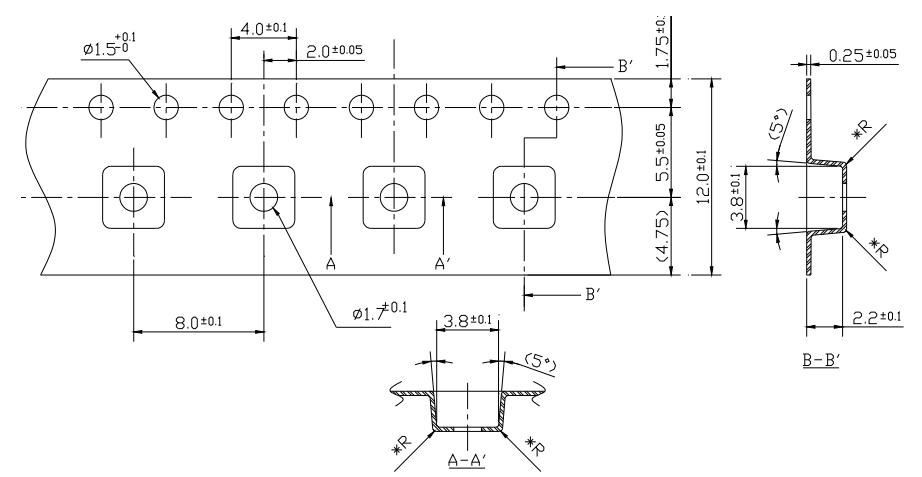

Reel Specifications
Moisture Resistant Packaging
Shipping Method
Delivery time:
Order Qty<500.000pcs, 3-7 workdays.
Order Qty>500.000pcs, 7-12 workdays.
Order Qty>2000.000pcs,12-20 workdays.
Shipping by DHL/FEDEX/UPS/EMS or Air transportation. Also we can handle the goods to your freight forwarder if you have. GMKJ make sure you spend lowest delivery cost for your order.
FAQ
Delivery time:
1. Samples: 3-7 working days;
2. Bulk order: 7-15 working days.
Warranty:
2-3 years warranty
Shipping Method:
1. By Express: DHL, UPS, Fedex, a fast and safe way for shipping, normally 3-5 working days for delivery;
2. By Air: In some area, the shipping cost by air is more favorable than by Express; 5-7 days for delivery;
3. By Sea: the most economic shipping method, but cost longer shipping time; large quantity, heavy and not urgent goods can choose this way.
4. Your shipping agent or forwarder.
After-Sale Service:
1. Quick reply on customers'questions;
2. If anything goes wrong with the products'quality, we will replace for you free and undertake the shipping cost.3. Make you a happy ordering.
Quality Control:
100% of the lamps will be tested and keep lighting for 24 hours to test its quality reliability , and we will also test its;temperature after 24 hours’ lighting.Then after it is cool we again test 100% of the lamps to see if it still work well;Each lamp should pass all these QC procedures before shipping to customer.
Delivery Detail:
We ship goods by UPS/DHL/FEDEX/TNT express which takes 3~ 5 days to arrive, or by air cargo which takes about one week to arrive .
or by sea which takes about one month to arrive , depending on your actual requirements.
Our services:
1. For all your inquires about us or our products, we will reply you in detail within 24 hours;
2. We own well-tranied and passional sales & after- sale services who can speak fluent Engligh language;
3. We offer OEM services. Can print your own logo on product , can customize the retail box packing and other things.
4. We have very experienced R&D engineers and we have strong ability to do OEM projects.
Business Partner

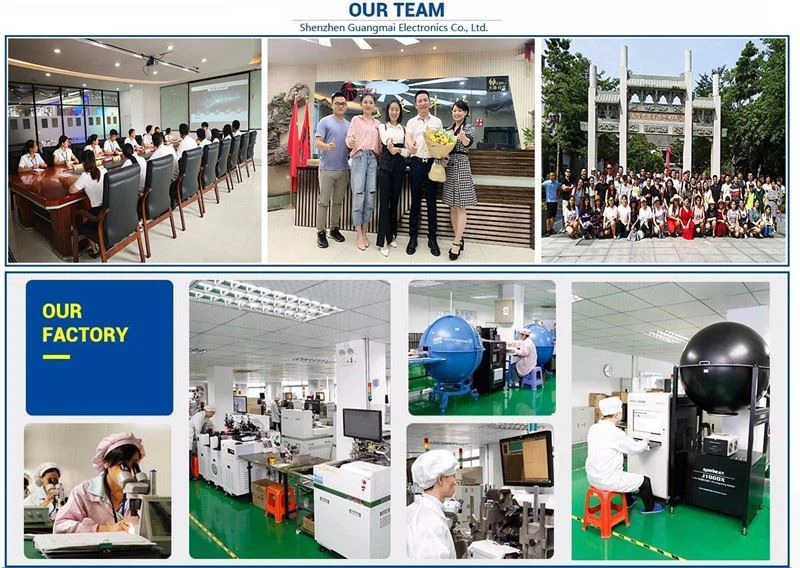

Company Environment
Factory Environment
Guangmai (GM) Company have over 12 years experience of produce a full series of high quality LED for different application such as high lumen SMD3535 LED, SMD3030 LED,SMD5050 LED,High power LED and COB LED from 5watt-100watt.
Since 2010, we are the top100 reliable LED enterprise in China and TOP10 LED company in Shenzhen. .
For more info about us, pls send us an inquiry or welcome to visit our Shenzhen headquarter and production base for business negotiation, Looking forward to work with you soon!
GM Company Service
Our Services/Why choose Us
1. Professional service: replied within 24 hours(at workdays).
2. Various ready moldings of lamp led are available: no need to afford extra fee for moldings.
3. We also can provide customized products, design according to your demand.
4. Reliable and stable quality: 100% testing for each piece. Automatic testing and bin code selection machine.
5. Experience: produce LED components for more than 14 years.
6. Advanced Equipment: ASM automatic production machines(biggest brand in LED automatic machines)
7. Concentration: We focus on LED research and development, production and sales.
