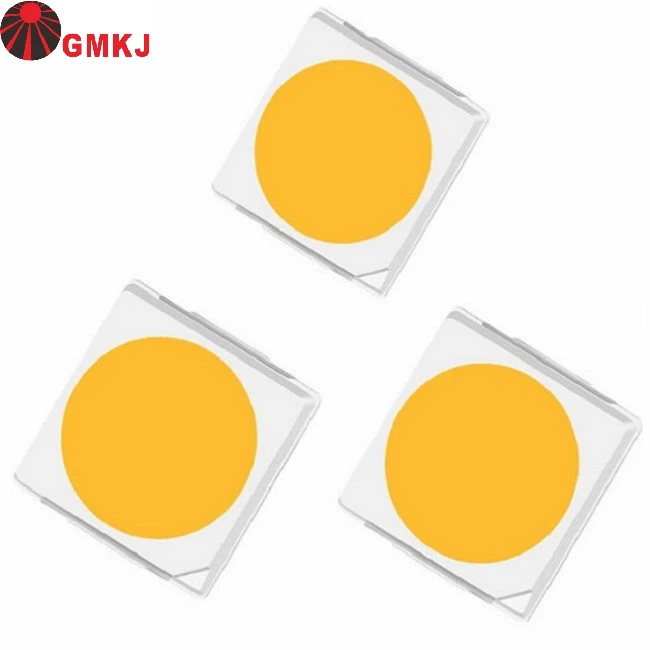

Led smd 3030 bridgelux dual chip
●Highest Luminous flux up to 200lm/w
●EMC or PCT Base available for 1-3watt power demand.
●Use US Bridgelux23x45mil or 26x30mil high bin chip.
●Germany Heraeus 99.99% pure Gold bonding wire
●Various choice for Ra70 ,Ra80,Ra90,Ra95
●DC Voltage model 2.8-3.0V or 5.6-5.8V available .
●Preferred for high-end high efficiency street lights.
Product Specification
Absolute Maximum Ratings
Parameter | Symbol | Rating | Unit |
DC Forward Current | IF | 200 | m A |
Peak pulse Current* | IFP | 250 | m A |
Power Dissipation | PD | 1.5 | W |
Reverse Voltage | VR | 10 | V |
Reverse Current | IR | 10 | μ A |
Operating Temperature Range | TOPR | -30 ~ +75 | °C |
Storage Temperature Range | TSTG | -40 ~ +85 | °C |
LED Junction Temperature | TJ | 120 | °C |
Electrical/Optical Characteristics--White (At TA=25°C)
Parameter | Symbol | Conditions | Min | Avg. | Max | Units |
Forward Voltage | VF | IF=150mA | 5.80 | -- | 6.20 | V |
Thermal Resistance Junction To Board | RΘJ-B | IF=150mA | -- | 8 | -- | °C/W |
Luminous Flux | Φv | IF=150mA | 130 | 180 | lm | |
Photosynthetic efficiency | IF=150mA | 150 | 210 | Lm/W | ||
Color Temperature | CCT | IF=150mA | 2700 | 7000 | K | |
CRI | Ra | IF=150mA | 70 | -- | 95 | -- |
Temperature Coefficient of Forward Voltage | ∆VF/∆T | IF=150mA | −− | -2 | −− | mV/°C |
Reverse Current | IR | VR=10V | −− | −− | 10 | μ A |
Viewing Angle [1] | 2Θ1/2 | IF=150mA | −− | 120 | −− | Deg |

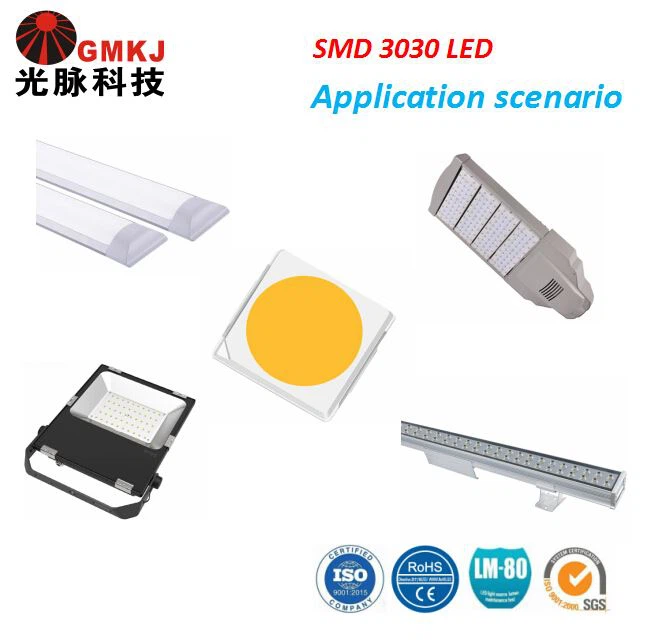

Product Application
GMKJ SMD 3030 LEDs are mainly use for high cost effective high light efficiency street light ,high bay light,liner light products. With this LED, the max Lumen efficiency of your finished lamps can achieve max to 180lm/w.
Packing Method
Normal packing Quantity: 4000pcs/reel ,167 gram/reel in a vacuum bag.
Shipping Method
Delivery time:
Order Qty<500.000pcs, 3-7 workdays.
Order Qty>500.000pcs, 7-12 workdays.
Order Qty>2000.000pcs,12-20 workdays.
FAQ
A:Our main products include:Q: What’s your product range?
·Compact SMD LED 0.06W-5W
·Integrated Flip Chip LED Module 3-500W
·Power LED 1-5W
·R.G.B LED or RGB/RGBW LED 1-100W
Q: Would you offer free samples?
A:Yes, We would offer free samples for P02 LED (1W high power LED, 6 pins 3W RGB LED), 3030 SMD LED, 5050 SMD LED, 3535 RGB LED,
3535 RGBW LED, etc.
Q:Are you manufacturer or trade company?
A:We are an experienced and professional LED manufacturer since 2005.
Q:What payment method do you accept?
A:We accept T/T, Paypal, Western Union and others more as clients’ requirement.
Q: What about the lead time?
A:It depends on the order quantity. In general, lead time is about 5-7 working days. For samples, the delivery could be as fast as same day.
Q: How can I get a quotation from you?
A:Please kindly leave us messages about your needs,including products and quantity,our professional team will reply you very soon
(mostly within few hours).
Q: What technical support can I get after purchase?
A:Data sheet and operation manual will be provided. Our sales engineer will be answering your questions any time.
Material&Equipment Supplier
Company Introduction
Guangmai (GM) Company have over 12 years experience of produce a full series of high quality LED for different application. Since 2010, we are the top100 reliable LED enterprise .
Currently our mainly hot sale product is SMD3030,SMD5050,SMD2835,SMD3535 LED and High power led 1-3watt. we are able to produce different cct from 2000-20000k and different color (wavelength) from 200nm-1000nm.
For more info about us, pls send us an quotation. Looking forward to work with you soon!
