24V 660nm 100W Red LED Chip Diode for Grow Light
●100W COB LED package, could be round or square
●Widely used in Plant Grow Light, Aquarium Light, Fill Light Series and so on
●Good quality and 3 years warranty
●99.9% pure gold wire solder, good heat dissipation
●High PPE, High PPF
Product Specification
Electrical/Optical Characteristics--White (At TA=25°C)
Parameter | Symbol | Conditions | Min | Avg. | Max | Unit |
Peak wavelength | λp | IF=3500mA | 650 | -- | 660 | Nm |
CRI | -- | -- | -- | -- | -- | |
Luminous Flux | Φv | 2800 | -- | 3200 | LM | |
Forward Voltage | VF | 20.00 | -- | 24.00 | V | |
Thermal Resistance | RΘJ-B | -- | 8 | -- | °C/W | |
Viewing Angle [1] | 2Θ1/2 | −− | 120 | −− | Deg | |
Reverse Current | IR | VR=50V | −− | −− | 10 | μ A |

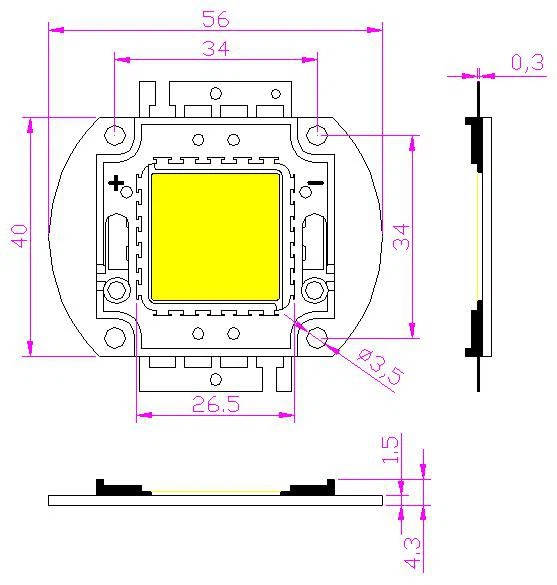

Package Dimensions |
Typical Optical/Electrical Characteristics Curves
(Ta=25℃ Unless Otherwise Noted )
Packing Method
Normal packing Quantity: 16pcs/plate,10plate in vacuum bag.
Application of 100W 660nm COB LED
Widely used in Plant Grow Light, Aquarium Light, Fill Light Series and so on.
FAQ
Q: Do you accept Alibaba online orders?
A:Sure! ! We prefer to fulfil orders under Alibaba Trade Assurance system, since both parties will be protected.
Q: Do you provide samples? Is it free or extra?
A: Yes, normally we could offer samples with free charge but do not pay the shipping freight.
Q: How do you guarantee my goods right?
A:Order will be arranged exactly as requested, we will doubly check the packing and qty before delivering out also we will take you photos if required or necessary.
Q: Is it OK to print my logo on the packing?
A:Of course, customized packing accepted! ! But it may bring some cost, it depends on the qty, if small qty then we don't accept.
Q: Do you offer OEM customized services?
A: Yes, we offer OEM services. We can print your logo on products, and customize the products and packaging and the other things for you.
Q: What's your delivery ways as usual?
A: Normally, we send the products by Express, Air or Sea transportation.
Q: What's your delivery time?
A: Samples can be finished within 3-5 days, and bulk order is about 10-15 days according to quantity.
Q: Do you have free sample?
A: Yes, we can offer you free samples, but you pay the shipping cost.
Company Introduction
Shenzhen Guangmai Electronics Co., Ltd. established in Shenzhen of China in 2009, is a National High-Tech Enterprise focuses on high-end LED package service. GMKJ Strives to bring in high-end machines for full-automatic production and aging test equipment for making itself a leading International LED production base.
Our staff has over 10 years of experience with excellent English. One of biggest R&D technical team of worldwide LED manufacturers. A strong R&D team of more than 40 experienced engineers.
Shipping
We ship worldwide by EMS, DHL, UPS, FEDEX and so on, and others you prefer.
Normally items will arrive within 3-7days after being posted.
Also you could use your forwarder, no matter which way you prefer, we are not responsible for any custom duty and import tax.
