Dome lens Hyper Red 660nm 3030 SMD LED Specs
| Product name | Dome lens Hyper Red 660nm 3030 SMD LED |
| Part number | GD-3030R660-1CC0-S2F0M |
| Chips brand | China Shilan 60x60mil big size chips inside |
| Manufacturer brand on Label |
GMKJ LEDs Manufactured by Guangmai Technology Co., Ltd |
| Input |
1.8-2.6vdc with IFmax 1500mA |
| Luminous/ Radiant Flux |
IF=350mA: 550-650mW IF=700mA:1000-1200mW
PPE IF=350mA:4.70-4.90μmol/J PPF IF=700mA: 5.70-5.90 μmol/s |
| Lighting Efficiency | Around 30 Lm/W |
| Wavelength/Color |
Peak wavelength: 660-665nm; Dominant Wavelength: 640-645nm; |
| Power |
Max 5 Watt |
| Package material |
ALN ceramic, 3.0x3.0mm smd led, with dome silicone lens |
| Lighting angle |
120 degree lighting angle |
| Price | Please contact with GMKJ for the Price |
| Min order quantity |
Depends on the stock availablity: If we have ready to ship stock, then even 100 pcs with samples test purpose is acceptable here. If no stock, then we need min order quantity with at least 5,000 pcs. |
| Warranty | 4 years |
| OEM service |
1. SKD parts available; 2. Customised LED array with the size you need is OK here. |
GMKJ Dome Silicone lens Ceramic 3030 SMD LED full series Picture
 |
 |
| ALO ceramic 3030 smd leds, IFmax 700mA |
ALN ceramic 3030 smd leds, IFmax 1500mA (Golden electro-plated type, for better performance in anti-sulpur resistance) |
Aluminum LED PCBA Assembled by GMKJ (PCB drawing and BOM provided by our clients)
GMKJ has our self-own SMT LED pcb board assembly line, including automatic picking and placing machine, automatic soldering paste applying machine, high temperature reflow oven.
We are able to do the LED pcb board assembly for our clients if they are able to provide us the pcb boards drawing and pcb board BOM list.
Dome lens Hyper Red 660nm 3030 SMD LED Dimension
Dome lens Hyper Red 660nm 3030 SMD LED Electrical / Spectrum Distribution Specs
|
Parameter |
Symbol |
Conditions |
Min |
Avg. |
Max |
Units |
|
Forward Voltage |
VF |
IF=350mA |
1.80 |
-- |
2.40 |
V |
|
VF |
IF=700mA |
2.00 |
-- |
2.60 |
V |
|
|
Radiant Flux |
Φe |
IF=350mA |
550 |
-- |
650 |
mW |
|
Φe |
IF=700mA |
1000 |
-- |
1200 |
mW |
|
|
Peak wavelength |
λp |
IF=350mA |
660 |
-- |
665 |
nm |
|
λp |
IF=700mA |
660 |
-- |
665 |
nm |
|
|
Dominant wavelength |
λd |
IF=350mA |
640 |
-- |
645 |
nm |
|
λd |
IF=700mA |
640 |
-- |
645 |
nm |
|
|
Photosynthetic light quantum flux |
PPF |
IF=350mA |
3.00 |
−− |
3.20 |
μmol/s |
|
PPF |
IF=700mA |
5.70 |
−− |
5.90 |
μmol/s |
|
|
Photosynthetic photon flux efficiency |
PPE |
IF=350mA |
4.70 |
−− |
4.90 |
μmol/J |
|
PPE |
IF=700mA |
4.10 |
−− |
4.30 |
μmol/J |
|
|
Thermal Resistance Junction To Board |
RΘJ-B |
IF=350mA |
-- |
5 |
-- |
°C/W |
|
Reverse Current |
IR |
VR=5V |
−− |
−− |
10 |
μ A |
|
Viewing Angle |
2Θ1/2 |
IF=350mA |
−− |
120 |
−− |
Deg |
Related Knowledge provided by GMKJ LEDs
What are the advantages of gold-plated lead frame ceramic 3030 LEDs in terms of anti-sulfurization performance for horticultural (plant grow) lighting?
Gold-plated lead frame ceramic 3030 LEDs offer clear advantages in anti-sulfurization performance, especially for horticultural lighting applications that operate in high-humidity and potentially corrosive environments. The main benefits are as follows:
1. Excellent resistance to sulfur corrosion
Gold is a chemically inert metal with very high resistance to sulfur-containing gases (such as H₂S).
Gold-plated lead frames effectively prevent sulfur from reacting with the metal contacts.
This significantly reduces the risk of LED darkening, electrical contact degradation, and premature failure caused by sulfurization.
2. Improved long-term reliability and lifetime stability
Plant grow lights are often used in environments with high humidity, fertilizers, organic emissions, and long operating hours.
Gold plating maintains stable electrical conductivity over time and minimizes corrosion-related failures.
This helps ensure consistent light output, lower lumen depreciation, and longer service life.
3. Better performance in harsh operating environments
Compared with standard silver- or copper-based lead frames, gold-plated structures are much more resistant to oxidation and sulfur attack.

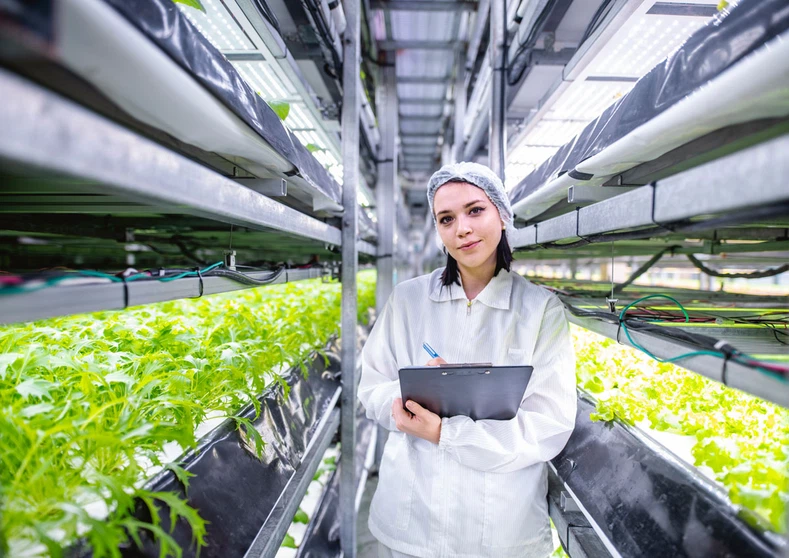

This makes ceramic 3030 LEDs especially suitable for continuous operation in greenhouses and plant factories where sulfur compounds may be present.
4. Synergy with ceramic package design
In addition to gold plating, the ceramic package itself provides further benefits:
High thermal stability and better heat dissipation
Low moisture absorption and excellent chemical stability
Reduced package aging under high temperature and high humidity conditions
The combination of a gold-plated lead frame and ceramic package significantly enhances the overall anti-sulfurization capability and reliability of the LED.
Summary
Gold-plated lead frame ceramic 3030 LEDs provide superior anti-sulfurization performance, more stable electrical contacts, and improved long-term reliability, making them an ideal choice for high-quality and long-lifetime horticultural lighting systems.
Looking for More details
You can download the datasheet from this page for related SMD LEDs.
If you need more details like price, min order quantity, stock status and lead time, please contact with GMKJ LEDs directly!
