500nm Illumination for Optical Imaging and Inspection
| Part Number |
GTY-3535G500-1CZ6-G1D5M
|
| Peak Wavelength | 500nm |
| Power rating | 3W |
| Package Type | 3535 Ceramic |
| Viewing Angle | 30° / 60° / 90° / 120° |
| Forward Current | 700mA |
| Applications |
Industrial Lighting Systems Vision Inspection Applications |
| Luminous Flux | 140-160lm at 700mA |

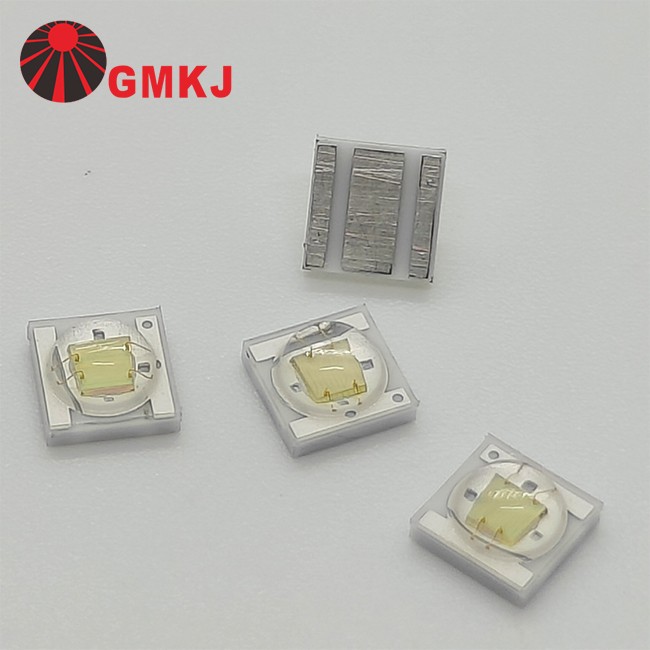

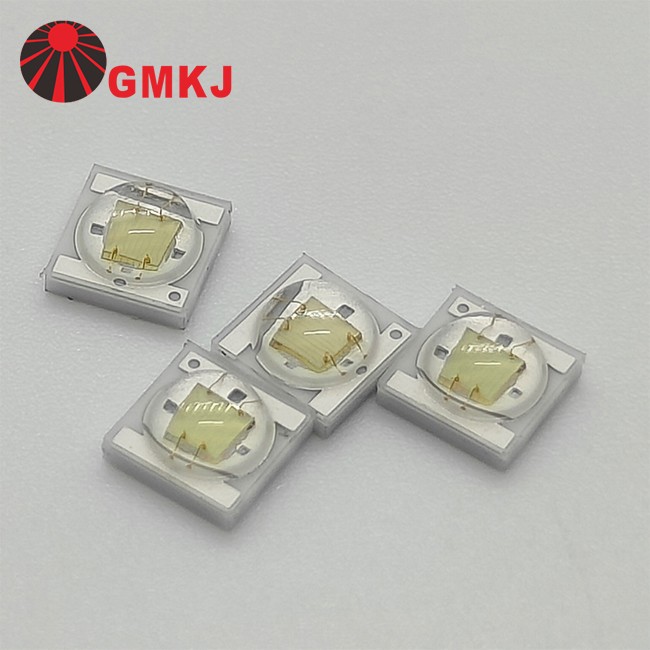

500nm 3535 Cyan LED Package Structure
|

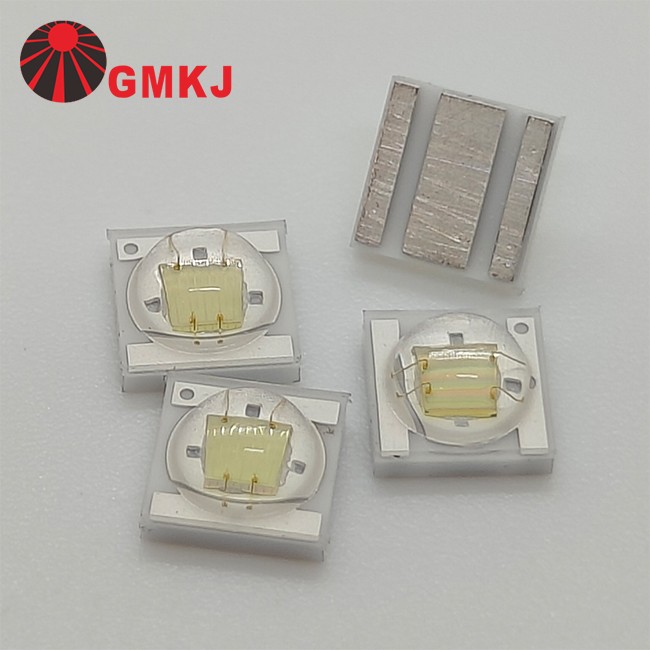

500nm Cyan-Light Emission from 3535 LED
|

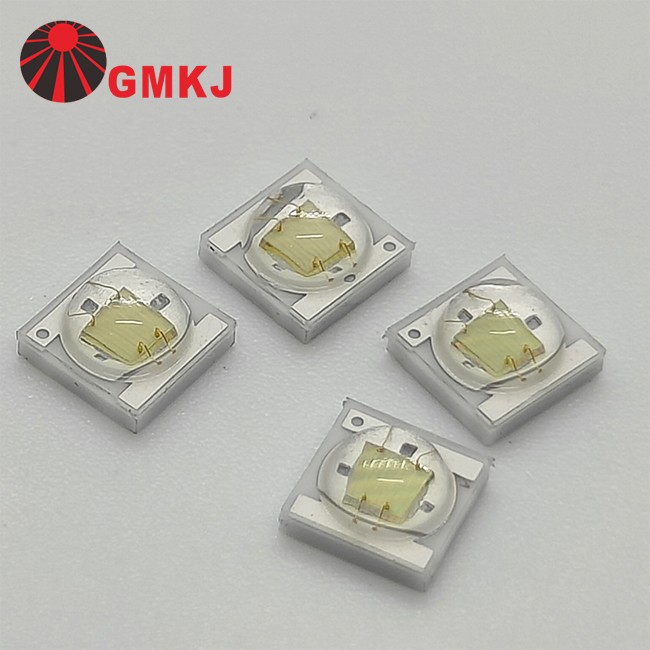

Visible Cyan Illumination Output
|

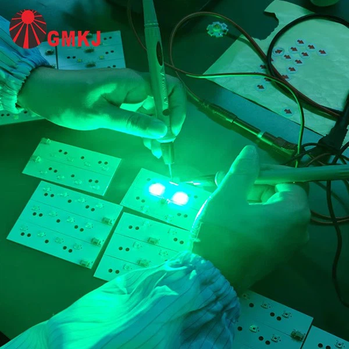

500nm 3535 LED Test at 700mA

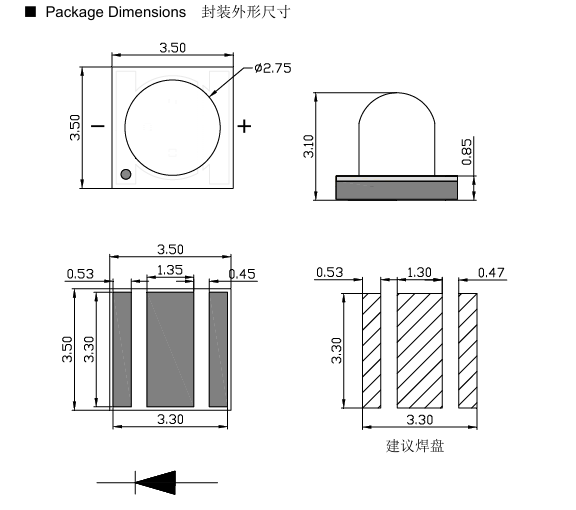

Mechanical Dimensions of 500nm 3535 LED

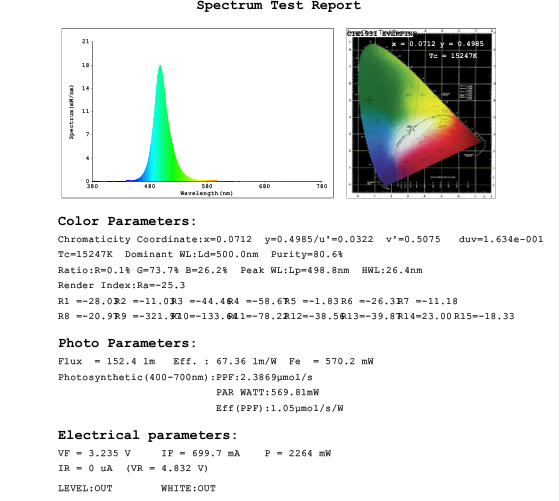

Electrical Performance of 500nm 3535 LED
|
Parameter |
Symbol |
Conditions |
Min |
Avg. |
Max |
Units |
| Forward Voltage (Vf) |
VF |
IF=700mA |
2.90 |
-- |
3.30 |
V |
|
Thermal Resistance Junction To Board (热阻) |
RΘJ-B |
IF=700mA |
-- |
6.5 |
-- |
°C/W |
|
Radiant Output (光功率) |
Φe |
IF=700mA |
140 |
-- |
160 |
mW |
|
Peak wavelength (峰值波长) |
λp |
IF=700mA |
500 |
-- |
510 |
nm |
|
Temperature Coefficient of Forward Voltage (正向压降之温度系数) |
∆VF/∆T |
IF=700mA |
−− |
-- |
−− |
mV/°C |
|
Reverse Current (反向漏电流) |
IR |
VR=5V |
−− |
−− |
10 |
μ A |
|
Viewing Angle [1] (发光角度) |
2Θ1/2 |
IF=700mA |
−− |
60 |
−− |
Deg |
| These electrical characteristics support consistent output required for material differentiation and spectral response analysis.Applications of 500nm Cyan Illumination |
Applications of 500nm Cyan Illumination
In machine vision and optical inspection environments, lighting wavelength selection can influence image contrast and surface response behavior.
500nm cyan illumination may be used in applications involving reflective materials, imaging systems, or industrial inspection conditions where enhanced visual differentiation is required.
Typical application environments include:
Machine vision lighting
Optical inspection systems
Industrial imaging equipment
Surface analysis environments
Automated inspection platforms
Technical details and configuration options for the 500nm 3535 LED are available according to different optical application requirements.
GMKJ can also support customized beam angles and PCB configurations for industrial lighting projects.
