SWIR 1700nm 1800nm 1900nm 2100nm 2200nm 2300nm 3535 SMD LED Specs
| Product name | SWIR 1700nm 1800nm 1900nm 2100nm 2200nm 2300nm 3535 SMD LED |
| Part number | GD-3535R2200-1CC0-D7D2M |
| Chips brand | Japan Dowa chips |
| Manufacturer brand on Label |
GMKJ Brand Manufactured by Guangmai Technology Co., Ltd, located in Shenzhen city, China |
| Input |
0.5-1.0vdc for IFmax 1500mA |
| Luminous/ Radiant Flux |
20-30mW for 1000mA input with peak wavelength 1700-1800nm and 1800-1900nm; 10-15mW for 1000mA input with peak wavelength 2100-2200nm, 2200-2300nm and 2300-2400nm; |
| Lighting Efficiency |
No LM/W for SWIR LEDs, All the radiation power is invisiable light for those SWIR wavevelength |
| Wavelength/Color |
SWIR wavelength available in: 1700-1800nm; 1800-1900nm; 2100-2200nm; 2200-2300nm; 2300-2400nm;
GMKJ has also other SWIR wavelength workable in below spectrum with 3535 smd led pkg: 1030-1050nm; 1060-1080nm; 1200-1250nm; 1300-1350nm; 1400-1450nm; 1500-1550nm; 1570-1580nm; 1630-1650nm; |
| Power |
1-2 Watt, IFmax 1500mA Suggested continously lighting on forward current 700-1000mA only |
| Package material |
ALN ceramic, 3.5x3.5 mm size smd led |
| Lighting angle |
120 degree lighting angle, silicone lens, regular one
We have also other narrow lighting angle available here: 30 degree/ 60 degree/ 90 degree
|
| Price | Please contact with GMKJ for the Price |
| Min order quantity |
Depends on the stock availablity: If we have ready to ship stock, then even 10 pcs with samples test purpose is acceptable here. If no stock, then we need min order quantity with at least 50-100 pcs for those irregular SWIR wavelength. |
| Warranty | 4 years |
| OEM service |
1. SKD parts available; 2. Customised LED array with the size you need is OK here. |
GMKJ SWIR 3535 SMD LED product list from 1000nm to 2400nm:
| Part Number | POWER | Color Specs | Chips specs | Input specs | ||
| GT-3535R1040-G1D2 | 1-3W | SWIR 1040-1050nm | Taiwan Epileds 42mil/ 30°,60°,90°,120° | 1.0-1.4V 700mA | ||
| GT-3535R1060-S1D2 | 1-3W | SWIR 1060-1070nm | China Sanan 42mil/ 30°,60°,90°,120° | 1.0-1.4V 700mA | ||
| GT-3535R1060-G1D2 | 1-3W | SWIR 1060-1080nm | Taiwan Epileds 42mil/ 30°,60°,90°,120° | 1.0-1.4V 700mA | ||
| GT-3535R1200-G1D2 | 1-3W | SWIR 1200-1250nm | Taiwan Epileds 42mil/ 30°,60°,90°,120° | 0.8-1.4V 700mA | ||
| GT-3535R1300-G1D2 | 1-3W | SWIR 1300-1350nm | Taiwan Epileds 42mil/ 30°,60°,90°,120° | 0.8-1.4V 700mA | ||
| GT-3535R1400-G1D2 | 1-3W | SWIR 1400-1450nm | Taiwan Epileds 42mil/ 30°,60°,90°,120° | 0.6-1.2V 700mA | ||
| GT-3535R1500-G1D2 | 1-3W | SWIR 1500-1550nm | Taiwan Epileds 42mil/ 30°,60°,90°,120° | 0.6-1.2V 700mA | ||
| GT-3535R1575-G1D2 | 1-3W | SWIR 1575-1580nm | Taiwan Epileds 42mil/ 30°,60°,90°,120° | 0.6-1.2V 700mA | ||
| GT-3535R1630-G1D2 | 1-3W | SWIR 1630-1650nm | Taiwan Epileds 42mil/ 30°,60°,90°,120° | 0.6-1.2V 700mA | ||
| GD-3535R1700-D7D2 | 1-2W | SWIR 1700-1800nm | Japan Dowa 42mil / 30°,60°,90°,120° | 0.5-1.0V 1000mA | ||
| GD-3535R1800-D7D2 | 1-2W | SWIR 1800-1900nm | Japan Dowa 42mil / 30°,60°,90°,120° | 0.5-1.0V 1000mA | ||
| GD-3535R2100-D7D2 | 1-2W | SWIR 2100-2200nm | Japan Dowa 42mil / 30°,60°,90°,120° | 0.5-1.0V 1000mA | ||
| GD-3535R2200-D7D2 | 1-2W | SWIR 2200-2300nm | Japan Dowa 42mil / 30°,60°,90°,120° | 0.5-1.0V 1000mA | ||
| GD-3535R2300-D7D2 | 1-2W | SWIR 2300-2400nm | Japan Dowa 42mil / 30°,60°,90°,120° | 0.5-1.0V 1000mA | ||

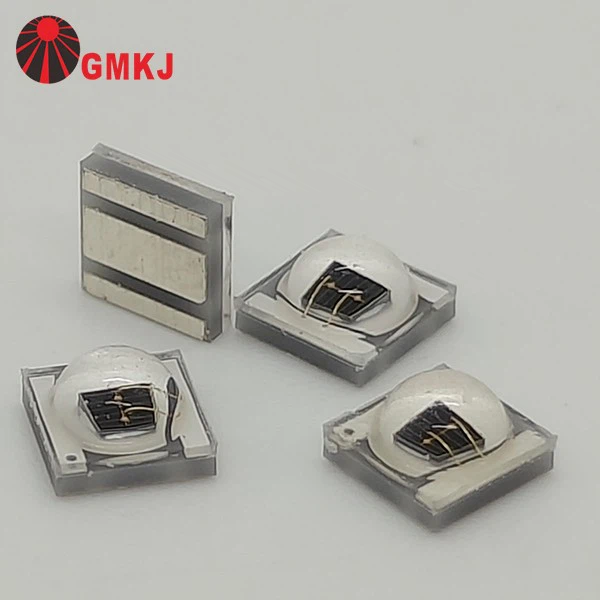

SWIR 1700nm 1800nm 1900nm 2100nm 2200nm 2300nm 3535 SMD LED picture
 |
 |
|
120 degree lighting angle leds |

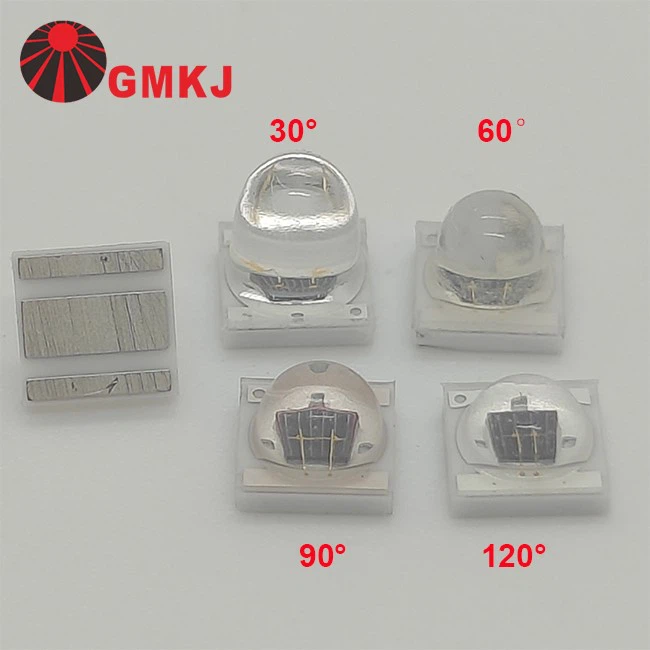

30 degree, 60 degree and 90 degree 3535 smd leds soldered on 8mm round shape pcb boards |
Aluminum LED PCBA Assembled by GMKJ (PCB drawing and BOM provided by our clients)
GMKJ has our self-own SMT LED pcb board assembly line, including automatic picking and placing machine, automatic soldering paste applying machine, high temperature reflow oven.
We are able to do the LED pcb board assembly for our clients if they are able to provide us the pcb boards drawing and pcb board BOM list.
SWIR 1700nm 1800nm 1900nm 2100nm 2200nm 2300nm 3535 SMD LED Dimension
SWIR 1700nm 1800nm 1900nm 2100nm 2200nm 2300nm 3535 SMD LED Electrical Specs
|
Parameter |
Symbol |
Conditions |
Min |
Avg. |
Max |
Units |
|
Forward Voltage (正向压降) |
VF |
IF=1000mA |
0.50 |
-- |
1.20 |
V |
|
Thermal Resistance Junction To Board (热阻) |
RΘJ-B |
IF=1000mA |
-- |
5 |
-- |
°C/W |
|
Radiant Flux (光功率) |
Φe |
IF=1000mA |
10 |
-- |
15 |
mW |
|
Peak wavelength (峰值波长) |
λp |
IF=1000mA |
2200 |
-- |
2300 |
nm |
|
Temperature Coefficient of Forward Voltage (正向压降之温度系数) |
∆VF/∆T |
IF=1000mA |
−− |
-- |
−− |
mV/°C |
|
Reverse Current (反向漏电流) |
IR |
VR=5V |
−− |
−− |
10 |
μ A |
|
Viewing Angle [1] (发光角度) |
2Θ1/2 |
IF=1000mA |
−− |
120 |
−− |
Deg |
What is the application for SWIR leds with 2200nm?
SWIR LEDs around 2200 nm are mainly used for material analysis rather than illumination.
At this wavelength, different materials (like plastics, water, and organic compounds) have strong absorption features, so it's useful for:
- Spectroscopy and material identification
- Plastic sorting and recycling systems
- Moisture and composition analysis in food or agriculture
- Some industrial inspection applications with SWIR cameras
You can download the datasheet from this page for related SMD LEDs.
If you need more details like price, min order quantity, stock status and lead time, please contact with GMKJ LEDs directly!
We are always here for you!
