Far Red 740nm 3535 SMD LED For LPR Camera

Far Red 740nm 3535 SMD LED for LPR Camera Specs:

Product name	Far Red 740nm 3535 SMD LED for LPR Camera
Part number	GT-3535R730-1CC0-GH42P
Chips brand	Taiwan Epileds 42mil chips
Input	1.8-2.0vdc max forward current 700mA
Radiation power	500-700mW at 700mA
Lighting Efficiency	Invisiable light, not lighting effieciency available
Wavelength	Far red 730-740nm, Infrared 810nm; Infrared 830nm; Infrared 850nm and 940nm available here
Power	3 Watt at 700mA
Package material	ALO ceramic with thermal resistance just 6.5°C/W
Lighting angle	Flat package with 120 degree lighting angle;   We have also other lighting angle available with dome silicone lens, such as: 30 degree, 60 degree, 90 degree and 120 degree with dome silicone lens
Brand and manufacturer	GMLEDs, GMKJ
Warranty	3 years
OEM service	1. SKD parts available; 2. Aluminum pcb boards LED assembly service is also available here. 3. Customized special size/ design are welcomed to have inquiry here in GMKJ.

What LED wavelengths are needed for LPR license plate recognition?

In LPR (License Plate Recognition) systems, the selection of appropriate LED wavelengths is crucial for achieving high recognition rates. Typically, the following LED wavelengths are used:

LED Wavelengths Used in LPR

White Light LEDs: For providing uniform and bright lighting, covering most of the visible light spectrum (400-700nm).

Infrared LEDs: Invisible to the human eye, useful for low-light environments and enhancing reflections on license plates (around 850nm).

Ultraviolet LEDs: Emit ultraviolet light to make fluorescent materials on license plates glow, improving contrast and clarity (around 365nm).



Factors to Consider When Selecting LED Light Sources

Light Intensity: Adjusted according to the application scenario to ensure clear images.

Color Temperature: Affects the color of the license plate images; chosen based on the actual situation.

Lifespan and Stability: Important for the long-term stable operation of the LPR system.

By carefully selecting the appropriate LED wavelengths and light source types, LPR systems can significantly improve the accuracy and reliability of license plate recognition.

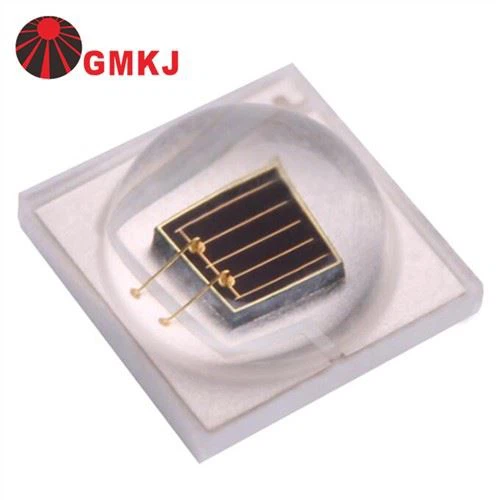

Far Red 740nm 3535 SMD LED for LPR Camera picture:

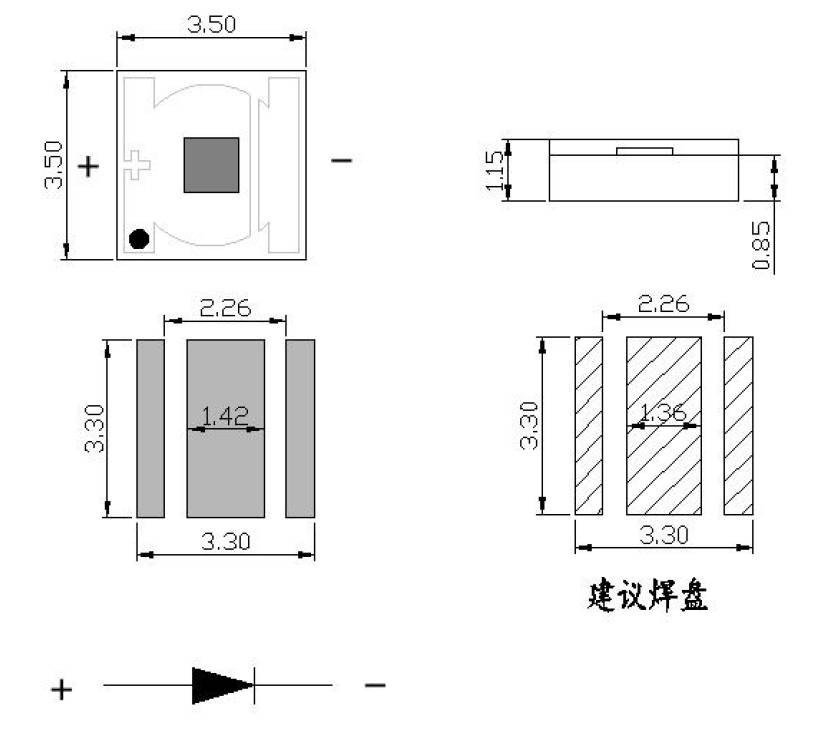

Far Red 740nm 3535 SMD LED for LPR Camera dimensions:



Far Red 740nm 3535 SMD LED for LPR Camera Eletrical specs:

■ Electrical/Optical Characteristics--White (At TA=25°C)

Parameter	Symbol	Conditions	Min	Avg.	Max	Units
Forward Voltage	VF	IF=700mA	1.80	--	2.20	V
Thermal Resistance Junction To Board	RΘJ-B	IF=700mA	--	6.5	--	°C/W
Radiant Flux	Φe	IF=700mA	500		700	mW
Peak wavelength	λp	IF=700mA	730		740	nm
Temperature Coefficient of Forward Voltage	∆VF/∆T	IF=700mA	−−	-2	−−	mV/°C
Reverse Current	IR	VR=5V	−−	−−	10	μ A
Viewing Angle	2Θ1/2	IF=700mA	−−	120	−−	Deg



For more details, please contact with us directly!
