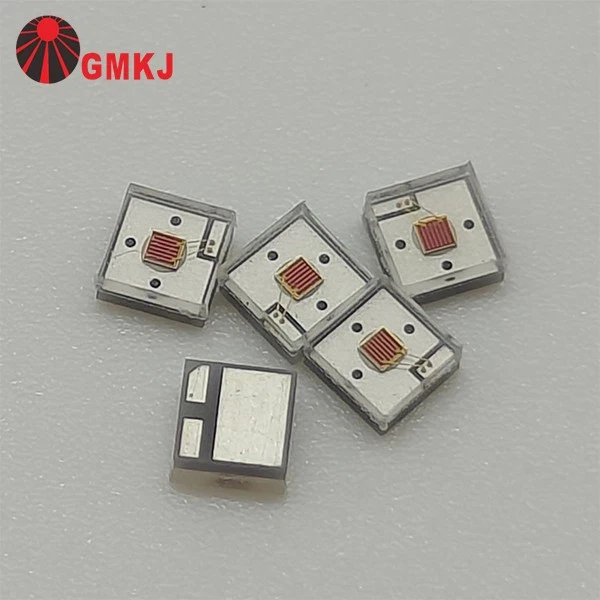

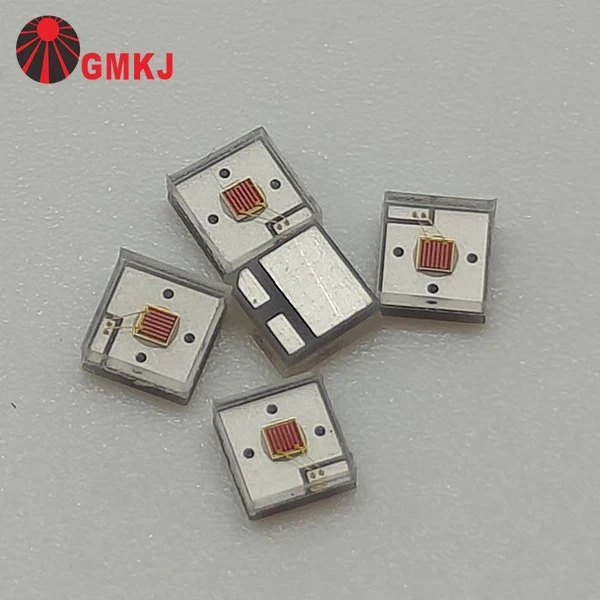

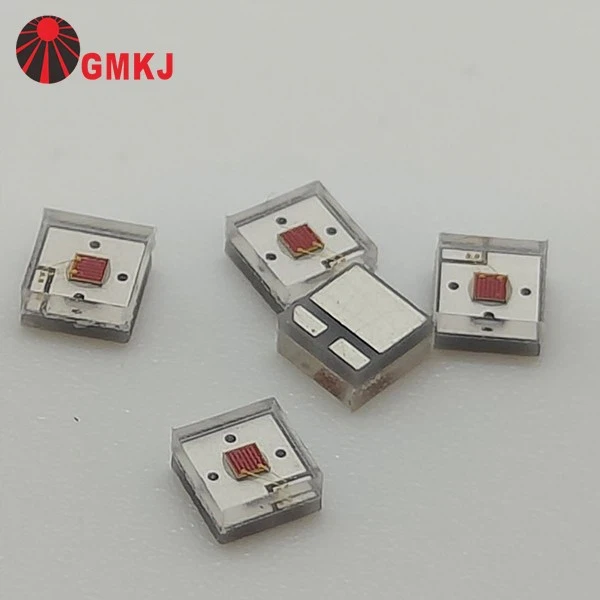

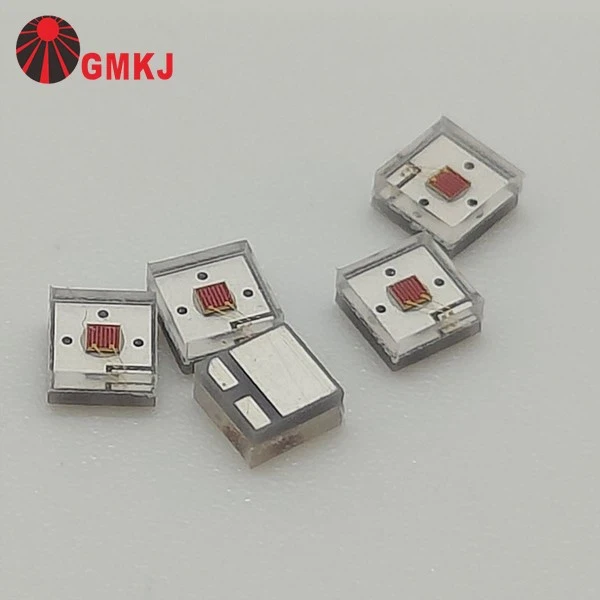

2020 SMD Ceramic 3W 1064nm NIR Emitter Package & Optical Integration

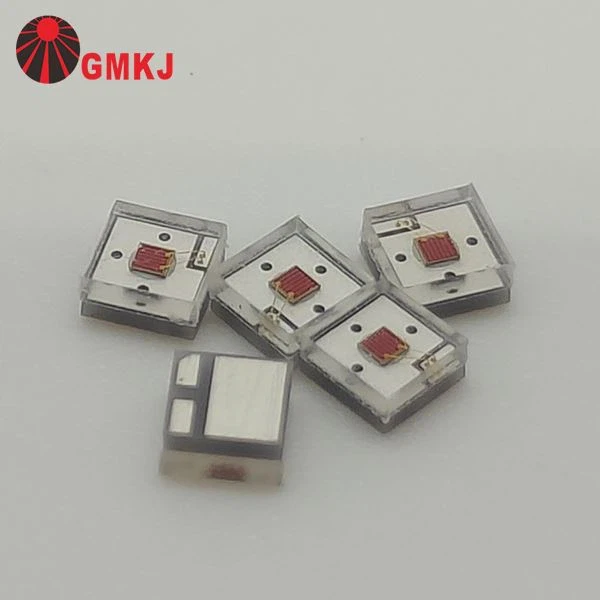

Single component shot
2020 NIR LED Mounted on Custom PCB Module
2020 Ceramic 1064nm NIR Emitter Size & Mini Packaging Design
This 2020 SMD ceramic 3W 1064nm NIR emitter features a tiny 2.0×2.0mm footprint to save installation space, while retaining steady infrared radiation and superior heat dissipation. Its standardized pad layout simplifies PCB mounting for flexible mini optical system assembly.
2020 SMD Ceramic 3W 1064nm NIR Emitter technical parameters
| Parameter | Specification | |
| Part Number |
|
|
| Package Size | 2.0mm × 2.0mm | |
| Package Type | 2020 ceramic LED SMD | |
| Mounting Type | SMT Compatible | |
| Wavelength | 1064NM | |
| Optical power | 450-550mW at 700mA 1.2-1.6V | |
| Application | spectral analyzers, industrial distance sensors, medical optical testing instruments and machine vision supplementary lighting system. |
Electrical Performance of 1064nm 2020 NIR LED
Electrical values listed below reflect standard operating conditions for stable infrared emission performance.
|
Parameter |
Symbol |
Conditions |
Min |
Avg. |
Max |
Units |
| Forward Voltage (Vf) |
VF |
IF=700mA |
1.00 |
-- |
1.50 |
V |
|
Thermal Resistance Junction To Board (热阻) |
RΘJ-B |
IF=700mA |
-- |
2.0 |
-- |
°C/W |
|
Radiant Output (光功率) |
Φe |
IF=700mA |
400 |
-- |
600 |
mW |
|
Peak wavelength (峰值波长) |
λp |
IF=700mA |
1060 |
-- |
1070 |
nm |
|
Temperature Coefficient of Forward Voltage (正向压降之温度系数) |
∆VF/∆T |
IF=700mA |
−− |
-- |
−− |
mV/°C |
|
Reverse Current (反向漏电流) |
IR |
VR=5V |
−− |
−− |
10 |
μ A |
|
Viewing Angle [1] (发光角度) |
2Θ1/2 |
IF=700mA |
−− |
120 |
−− |
Deg |
| These electrical characteristics support consistent output required for material differentiation and spectral response analysis. |
Engineering data and wavelength information for the NIR LED can be reviewed directly from the datasheet on this page.
