1350nm 1450nm 1550nm 1650nm IR SMD LED Array Specs
| Product name | 1350nm 1450nm 1550nm 1650nm IR SMD LED Array |
| Part number |
GD-9090R1XXX-5C5C-G1D2B XXX stands for: R1050: 1050nm R1250: 1250nm; R1350: 1350nm; R1450: 1450nm; R1550: 1550nm; R1650: 1650mm; |
| Chips brand | Taiwan Epileds chips or Japan brand chips |
| Manufacturer brand on Label |
GMKJ Brand Manufactured by Guangmai Technology Co., Ltd, located in Shenzhen city, China |
| Input |
4-6vdc IFmax 3500mA for Taiwan Epileds chips 5-9vdc IFmax 5000mA for Japan brand chips with higher power rated |
| Luminous/ Radiant Flux | 1000-3000 mW |
| Lighting Efficiency |
SWIR leds, invisiable IR light without lm/w efficiency declared |
| Wavelength/Color |
SWIR 1000-1650nm, all wavelengths are available here |
| Power | 20-30 Watt |
| Package material |
ALN ceramic substrated |
| Lighting angle |
120 degree lighting angle with flat quartz glass lens |
| Price | Please contact with GMKJ Sales team for the Price |
| Warranty | 3-4 years |
| OEM service |
1. SKD parts available; 2. Customised LED array with the size you need is OK here. |

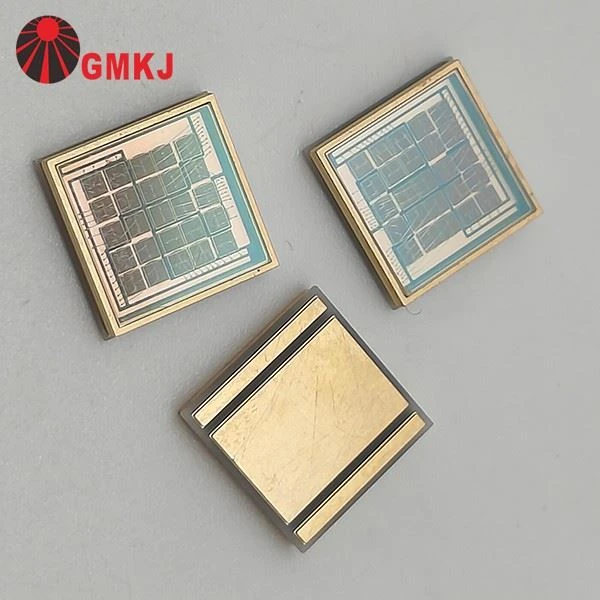

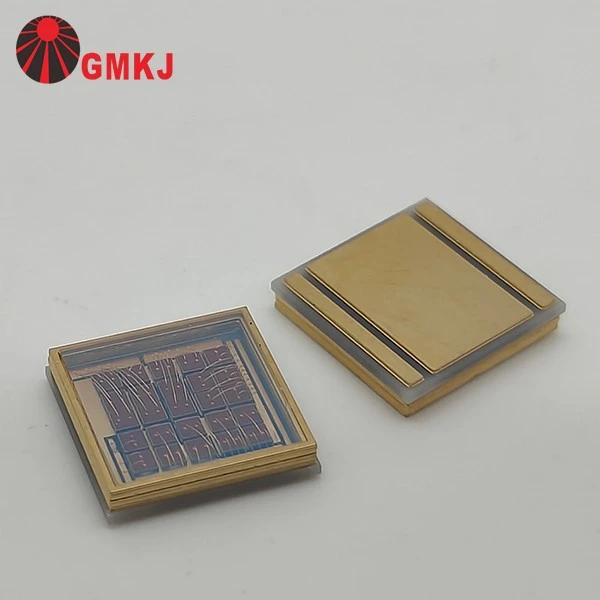

1350nm 1450nm 1550nm 1650nm IR SMD LED Array picture

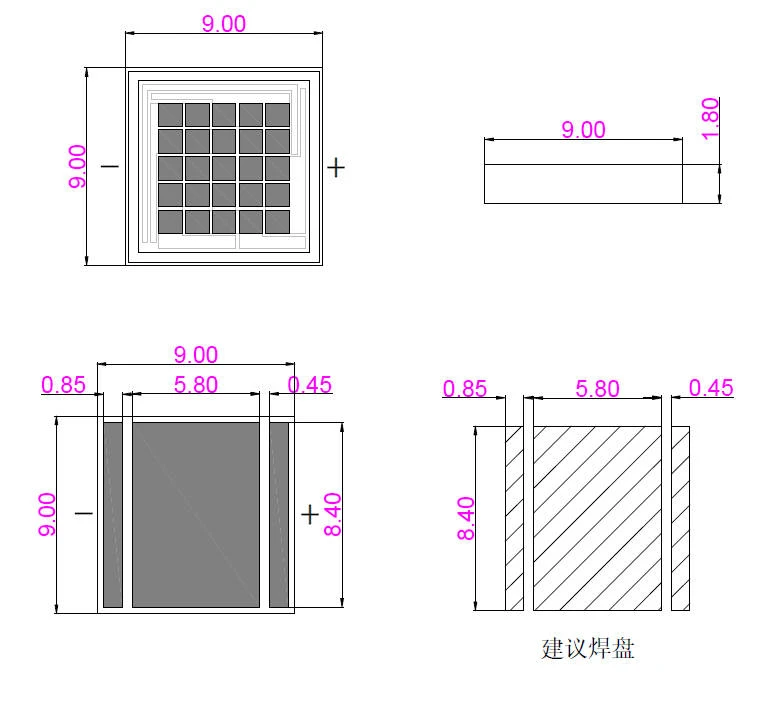

1350nm 1450nm 1550nm 1650nm IR SMD LED Array Dimension
1350nm 1450nm 1550nm 1650nm IR SMD LED Array details from the Specs Sheet
|
Parameter |
Symbol |
Conditions |
Min |
Avg. |
Max |
Units |
|
Forward Voltage |
VF |
IF=3500mA |
4.00 |
-- |
6.00 |
V |
|
Thermal Resistance Junction To Board |
RΘJ-B |
IF=3500mA |
-- |
2 |
-- |
°C/W |
|
Radiant Flux |
Φe |
IF=3500mA |
1000 |
-- |
3000 |
mW |
|
Peak wavelength |
λp |
IF=3500mA |
1440 |
-- |
1460 |
nm |
|
Reverse Current |
IR |
VR=5V |
−− |
−− |
10 |
μ A |
|
Viewing Angle |
2Θ1/2 |
IF=3500mA |
−− |
120 |
−− |
D |
