RGBWW 5050 SMD LED 12W Chip Light Source features:
Product specifications
Type : SMD LED
Model Number : RGBWW
Power : 12W
Chip : China Sanan
Viewing Angle : 120°
Emitting Color : RGBWW
Size: 5.0*5.0*1.1mm
Life span : 50000 hours
Warranty : 3Years
MOQ: 1000PCS
Certification : EN62471, CE, SDS, SGS, ROHS, LM-80
2. High brightness
3. High power 4-12W
4. Good color consistency
Parameter | Symbol | Conditions | Emitting Color | Values | Units | ||
Min | Avg. | Max | |||||
Forward Voltage | VF | IF=700mA | R | 2.00 | -- | 2.80 |
V
|
G | 3.00 | -- | 3.80 | ||||
B | 3.00 | -- | 3.80 | ||||
W | 3.00 | -- | 3.80 | ||||
Luminous Flux | Φv | IF=700mA | R | 160 | -- | 180 | lm |
G | 200 | -- | 220 | ||||
B | 30 | -- | 50 | ||||
W | 160 | -- | 180 | ||||
Dominant wavelength | λd | IF=700mA | R | 620 | -- | 630 | nm |
G | 520 | -- | 530 | ||||
B | 455 | -- | 470 | ||||
Color Temperature | CCT | IF=700mA | WW | 3000 | -- | 3500 | K |
Temperature Coefficient of Forward Voltage | ∆VF/∆T | IF=700mA | −− | −− | -2 | −− | mV/°C |
Reverse Current | IR | VR=5V | −− | −− | −− | 10 | μ A |
Viewing Angle [1] | 2Θ1/2 | IF=700mA | −− | −− | 120 | −− | Deg |
Thermal Resistance Junction To Board | RΘJ-B | IF=700mA | −− | -- | 8 | -- | °C/W |

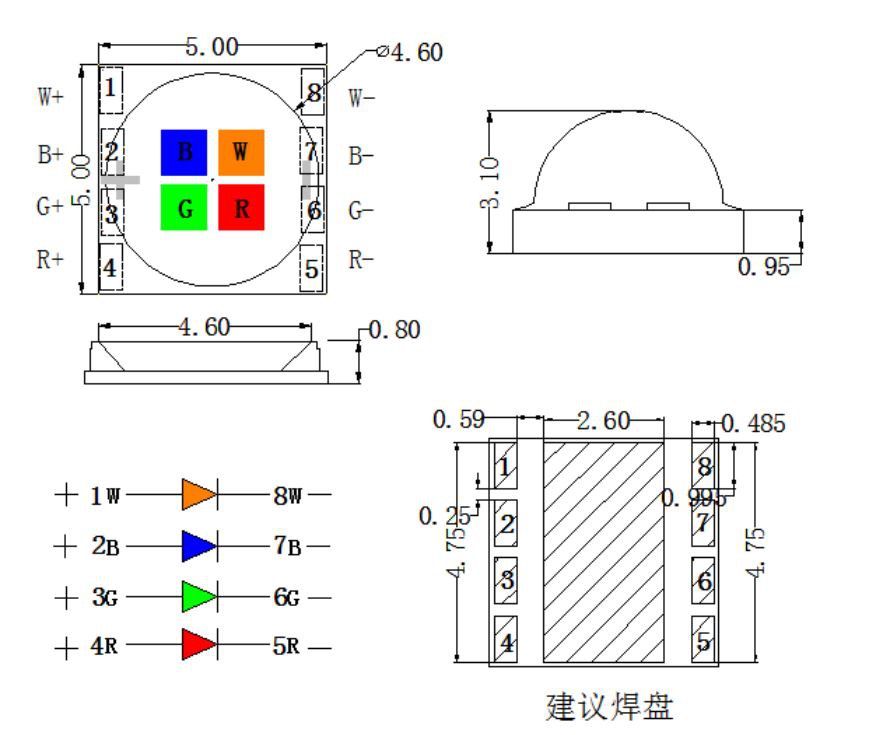

RGBWW 5050 SMD LED 12W Chip Light Source details:
RGBWW 5050 SMD LED 12W Chip Light Source application
1. Stage lights
2. Smart lamps
3. Floodlight
4. Outdoor wall washer lights and so on
About Guangmai LED/ GMKJ LED
Shenzhen Guangmai Technology Co., Ltd, was established in 2009. It is a high-tech enterprise specializing in R&D, production and sales of LEDs. In 2016, it was selected as one of the top ten innovative brand companies for lighting designers. Factory mainly producing super bright piranha series: red, yellow, orange, blue, green, purple, pink, white, warm white and SMD patch series: 3014 side view, 3528, 3535, 4040, 5050 and other patches SMD LED.
Products with low lighting decay, anti-moisture, anti-sulfurization, waterproof, anti-deadlight and other prominent features, are widely used in Automotive LED lights, outdoor landscape lighting, interior lighting, commercial lighting, LED advertising logo light.
Our factory has more than 8,000 sm² 100,000 level dust-free LED packaging workshops, more than 30 engineering technical and senior management personnel with over 10 years experience in LED industry packaging. The raw materials used in the products are mainly imported from Japan, Unites States, ans Taiwan.
Our company strictly operates in accordance with ISO9001:2008 quality management system. The white light area strictly complies with the American Energy Star IES LM-80 standard. Many products have passed the US Energy Star IES LM-80 test, ROHS, REACH, EN62471 certification.
Delivery:
We send goods by UPS/DHL/FEDEX/TNT express which take 3-5 days to arrive, or by air cargo which takes about one week to arrive, or by sea which takes about one month to arrive, depending on your actual requirements.
RGBWW 5050 SMD LED 12W Chip Light Source details:
Payment:
TT: (30% deposit and 70% payment before shipment)
Western Union: For some region,it is the best way for payment, but the service charge is a little high than other payments when the order reach 10,000USD.
Paypal: It is the best and quickerest way for trial orders in order to save time .
Shipment:
Shipment by Express:DHL,UPS,FEDEX,we working wth their for more than 5years,so we can get the best price with best service.
Shipment by Air:considering the expensive international freight,shipment by air is the good choice if the goods more than 100KG,note:it is door to airport,you need pick up the goods to airport ^ ^.
Shipment by Sea:It is cheapest shipment way,people always choose it when the goods weight more than1-2CBM at least,it is door to port,you have to pick up the goods to the port.
FAQ:
Q1. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q2. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q3: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q4: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Hot Tags: rgbww 5050 smd led 12w chip light source, China, manufacturers, suppliers, factory, price, cheap, quotation, datasheet, specs, specification
