Specification
20W COB LED with red copper base, our 20w-300w High Power COB LED are widely used in LED Street Light, Sports Light, Tunnel Light, Patio Light,Venue Light, Searchlight and so on.
●Higher Light efficiency up to 140LM/Watt;
●Famous branded chip: Bridgelux, Epistar and so on for your choose
●Red Copper Base + 99.99% purity gold wires
●Integrated circut with wide viewing angle
●The near-field distribution of phosphor greatly reduces the thermal resistance of the light source;
●Optical control to achieve precise light control;
●Pass LM-80 and EN62471 Certification.
For more details, please contact with GMKJ sales!
|
Product Name |
High Power White 20W COB LED |
Product Model |
GP-20WW6-P2345T-Z1GL |
|
Power Dissipation |
20W |
Light Color |
White Color |
|
Forward Voltage |
30-34V |
Viewing Angle |
120° |
|
Forward Current |
700mA |
Operating Temperature |
-40~+60 ℃ |
|
Luminous Flux |
2600-3000LM |
Storage Temperature |
-40~+85 ℃ |
|
Color Temperature |
6000-6500K/3000-3200K |
Soldering Temperature |
260℃ |
Our Outdoor Lighting 20w cob led is high heat dissipation, high power and high out-of-light technology.
Power available:10w-300w.
If you need any from below list, please contact with us!
|
High Power 20W COB LED SERIES SPECIFICATION |
||||||
|
Product Name |
Light Color |
CCT/Wavelength |
Voltage |
Current |
Chip Size |
Light Efficacy |
|
20W White COB LED |
Gold Yellow Warm White White Cold White |
2000-2200K 2900-3100K 4000-7000K 9000-15000K |
28-34V |
700mA |
33mil/35mil 38mil 45mil |
90-100-110LM/W 100-120LM/W 120-140LM/W |
|
20W Red COB LED |
Red |
620-630nm |
20-24V |
700mA |
30mil/33mil 42mil |
40-60LM/W 60-80LM/W |
|
20W Green LED |
Green |
520-530nm |
30-34V |
700mA |
30mil/35mil 38mil/45mil |
70-90LM/W 90-100LM/W 100-110LM/W |
|
20W Blue LED |
Blue |
450-470nm |
30-34V |
700mA |
30mil/35mil 38mil/45mil |
10-15LM/W 15-20LM/W 20-30LM/W |
|
20W Yellow LED |
Yellow |
590-595nm |
30-34V |
700mA |
30mil/42mil |
40-50LM/W 50-60LM/W |
|
20W Amber LED |
Amber |
600-610nm |
30-34V |
700mA |
30mil/42mil |
40-50LM/W 50-60LM/W |
|
20W Far Red LED |
Far Red |
660-665nm |
20-24V |
700mA |
30mil/42mil |
20-30LM/W 30-50LM/W |
|
30W RGB LED |
RGB |
R:620-630nm,20-24V,350mA,30-40LM/W@30mil,40-60LM/W@35mil,60-80LM/W@42mil G:520-530nm,28-34V,350mA,60-70LM/W@30mil Chip,70-80LM/W@38mil,80-100LM/W@45mil B: 460-470nm,28-34V,350mA,10-15LM/W@30mil, 15-20LM/W@38mil Chip,20-30LM/W@45mil |
||||
|
60W RGB LED |
RGB |
R:620-630nm,20-24V,700mA,30-40LM/W@30mil,40-60LM/W@35mil,60-80LM/W@42mil G:520-530nm,28-34V,700mA,60-70LM/W@30mil Chip,70-80LM/W@38mil,80-100LM/W@45mil B: 460-470nm,28-34V,700mA,10-15LM/W@30mil, 15-20LM/W@38mil Chip,20-30LM/W@45mil |
||||
|
90W RGB LED |
RGB |
R:620-630nm,20-24V,1050mA,30-40LM/W@30mil,40-60LM/W@35mil,60-80LM/W@42mil G:520-530nm,28-34V,1050mA,60-70LM/W@30mil Chip,70-80LM/W@38mil,80-100LM/W@45mil B: 460-470nm,28-34V,1050mA,10-15LM/W@30mil, 15-20LM/W@38mil Chip,20-30LM/W@45mil |
||||

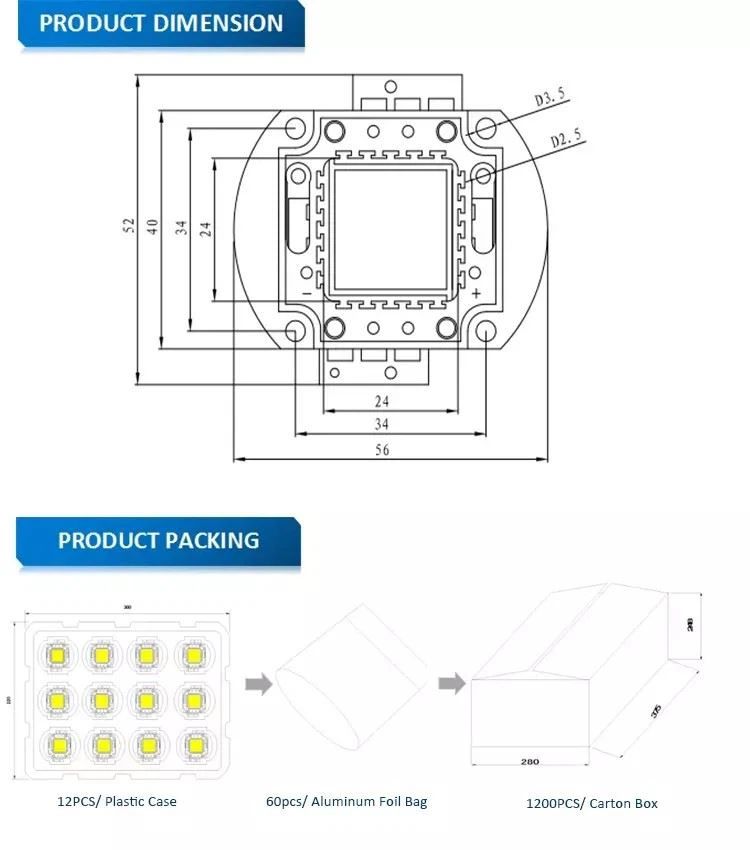

20W COB LED package details

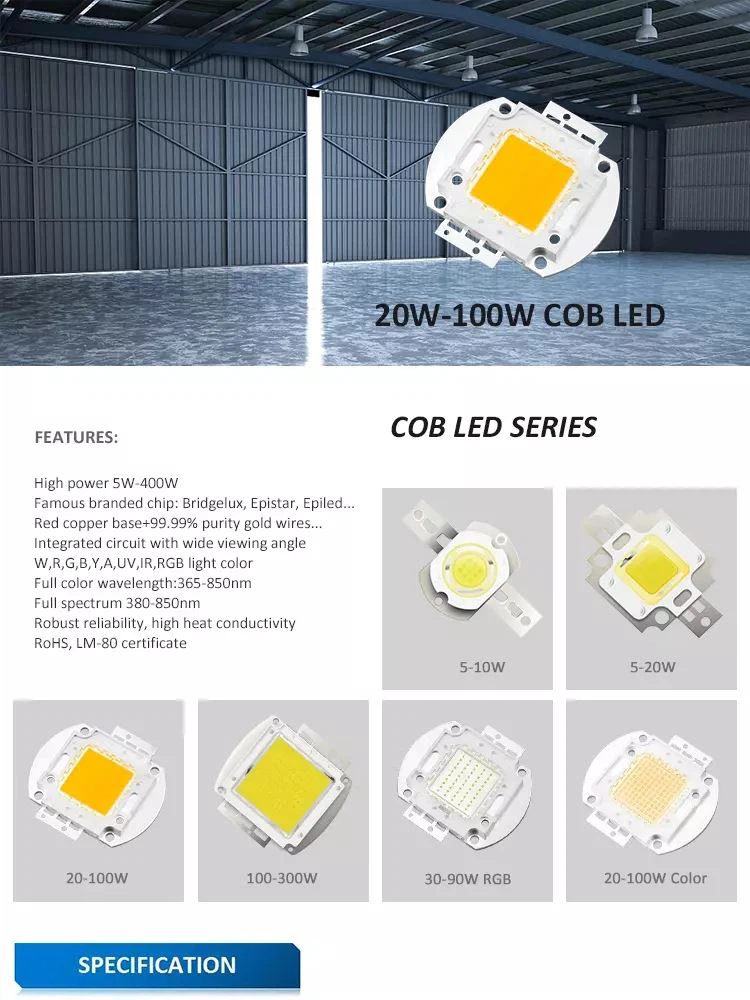

20W COB LED clear pictures
20W COB LED application
Application: 20W-100W COB LED could be widely used in LED Flood Light, LED Street Light, LED Tunnel Light, LED High Bay Light and so on....
