15W 9V 3535 Ceramic SMD High Power White LED for Long Range Flashlight Lighting
GMKJ 15W 9V 3535 Ceramic SMD High Power White LED features high luminous efficiency, powerful light output and consistent optical performance for professional portable lighting applications. Advanced ceramic packaging technology enables excellent thermal management and high current handling capability, maintaining stable brightness during extended operation.
Optimized chip design and compact 3535 package structure provide an ideal balance between high light intensity, heat dissipation and reliability. The concentrated beam output is suitable for long-range flashlights, portable searchlights and high-intensity lighting devices requiring powerful illumination and stable performance.
The robust ceramic SMD structure delivers excellent heat resistance and mechanical reliability, reducing performance degradation under high-power operating conditions and enabling manufacturers to develop more durable and efficient lighting products.
| Parameter | Specification |
|
|
1.3535 Ceramic Package Better thermal performance for high-power applications 2. 15W High Power Output Strong illumination for long-range lighting systems 3. 9V Electrical Design Suitable for compact portable lighting solutions |
| Part Number | GDY-3535W500-1CD0-G3H0M-R70 |
| LED Power | 15W |
| Luminous Flux(lm) | 900-1100lm at 700mA 9V |
| CCT(k) | 4000k/5000k/6000k/7000k |
| Drive Current(mA) | Max up to 1500mA |
| Package Material | Ceramic Substrate |
| Forward Voltage (Vf) | 9V |
| Beam angle(°) | 120° |
| Application | Flashlight, Searchlight, Portable Lighting, Outdoor Lighting |
Applications of 15W 9V High Power White LED
Long Range Flashlights
High‑power ceramic SMD LED for tactical flashlights and professional handheld lighting, delivering long beam throw and high‑intensity illumination for high‑load applications.
Mining & Industrial Inspection Lights
Tactical & Outdoor Lighting
Provides stable high-intensity illumination for tactical lighting, hunting lights, camping lights and outdoor exploration equipment.

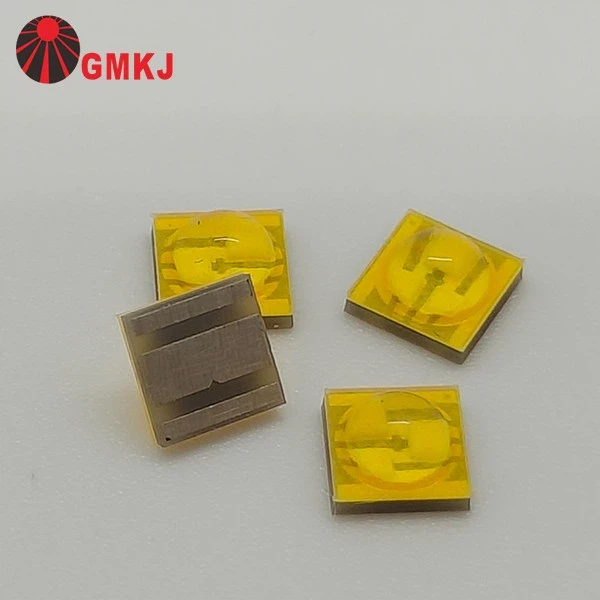

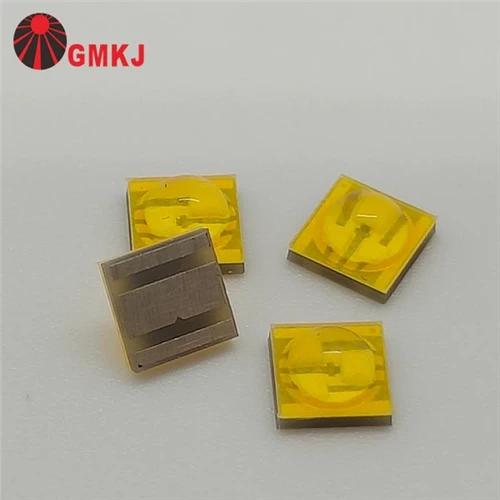

15W 9V 3535 ceramic packaged high power white LED with compact SMD design
15W 9V 3535 Ceramic SMD High Power White LED Electrical Parameters
|
Parameter |
Symbol |
Conditions |
Min |
Avg. |
Max |
Units |
| Forward Voltage (Vf) |
VF |
IF=700mA |
8.00 |
-- |
10.0 |
V |
|
Thermal Resistance Junction To Board (热阻) |
RΘJ-B |
IF=700mA |
-- |
2 |
-- |
°C/W |
|
Luminous Flux (流明) |
Φe |
IF=700mA |
900 |
-- |
1100 |
LM |
|
Color Temperature
(色温)
|
λp |
IF=700mA |
4700 |
-- |
5300 |
K |
|
CRI
(显色指数)
|
Ra
|
IF=700mA | -- | 70 | -- | |
|
Reverse Current (反向漏电流) |
IR |
VR=5V |
−− |
−− |
10 |
μ A |
|
Viewing Angle [1] (发光角度) |
2Θ1/2 |
IF=700mA |
−− |
120 |
−− |
Deg |
Request Samples & Engineering Support
Looking for a reliable high power LED solution for your flashlight, searchlight or portable lighting project?
GMKJ provides professional ceramic SMD LED solutions with flexible customization options, including electrical specifications, color temperature, optical design and packaging requirements. Our engineering team supports customers from prototype development to mass production, helping lighting manufacturers achieve higher brightness, better thermal performance and long-term reliability.
Contact GMKJ today for LED samples, technical specifications and customized solutions for your next high-power lighting project.
Technical Support Available
White LED Specification Selection
Color Temperature Customization
LED Module Design
PCB Layout Support
Thermal Performance Optimization
Sample Testing Support
