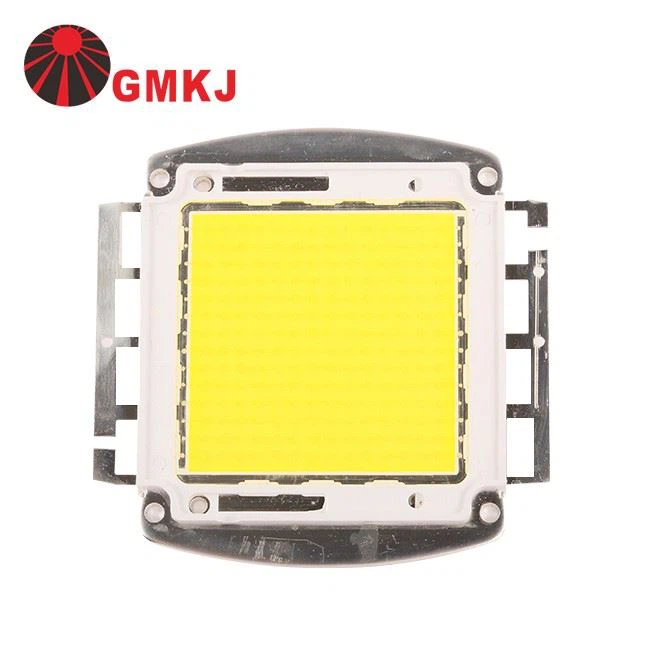

Guangmai Technology is professional in making the 500W High power COB LED array for film light.
The features of 500W COB LED:
LED Chip Type | High Power COB LED Chip |
COB LED Chip Power | 500w |
Base Type | Round / Square (according to your need) |
Lumen | 90-120lm/w, 50000lm LED CHIP |
CRI | 80-95Ra |
Dimensions(mm) | 10w, Square: 30x20mm 20w, Square: 50x45mm 30w, Square: 50x45mm 50w, Square: 50x45mm 100W, Square: 50x55mm |
input Voltage | 30-34V, 30-36V, 27-36V |
out voltage | 85-265V AC, 120-240V AC |
Dimmable | Dimmable/Non-Dimmable is Available |
Color Temperature
| Cool White (6000K-6500K) |
Pure White(4000-5500K) | |
Warm White(2800K-3200K) | |
Cold/Warm White, RGB, Red, Green, Blue, Yellow, Orange, Pink, Golden, Brown, UV Led cob chip | |
400-420nm,515-535nm,460-470nm,568-572nm,585-592nm,601-606nm,615-625nm | |
Quality Guarantee | 2 years |
Usage | Available for residential lighting, indoor lighting, commercial lighting |
Name: High CRI 95-98Ra 500W COB LED
CRI: 95-98Ra (CRI can be customized)
IF: ≤15000mA
VF: 30-34V
Power: 500 Watts
Beam Angle: 120 degree
Brightness: 50000-60000 lumen
Substrate: high quality copper
Warranty: 2 years
CCT: 1500K, 2000K, 3000K, 4000K, 5000K, 6000K, 7000K, 8000K, 9000K, 10000K... 25000K.(any CCT can be customized)
Main application: Video lamp, spotlight, moving head light, stage light, photographic lamp, film lamp, floodlight, high bay light, ect.
500W High power COB LED array for film light package size:
500W High power COB LED array for film light application
Products are widely used in various household appliances, electronic products, lighting ornament, digital products, automotive electronics communications traffic instructions urban lighting projects and other related production industries
About Guangmai LED/ GMKJ LED
Shenzhen GuangmaiTechnology Co., Ltd. is a high-tech enterprise specializing in R&D, production, sales and service of LED light sources.Our products have been exported to Europe, United States, the Middle East, Southeast Asia and other countries and area.The company cooperates with major manufacturers in China actively. The company introduces the most advanced automated production lines, production technologies and dust-free anti-static workshops domestically and abroad and is equipped with superior performance testing facilities, from solid crystal, welding wire, glue, spectroscopic separation,packaging, inspection and full automation in one step. The company promotes the development of the enterprises with advanced technology concepts and scientific management methods, establishes a sound quality management system, and has passed ISO9001 quality management certification, ISO14001 environmental management system certification, SGS (environmental system) certification and other parties.
Company goal: To build the industry's famous brand for China's top companies
Values: Technology drives development and brightens the future; quality creates harmony, integrity creates brilliance.
Quality policy: cooperate in good faith, create a win-win situation, pursue zero defects, perfect without limits!
Competitive Advantages of our LEDs:
1. Good quality guarantee, 50000 hours lifespan, 2-5 years warranty.
2. Professional engineers and experienced workers.
3. Short delivery time, normally 1-7 working days.
4. Customized specifications available in CCT, CRI, Lumen, VF, Color , etc.
5. Various module type, such as SMD LED, 1-2000W high power integrated / COB LED, Diode etc.
Delivery:
FAQ:
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 2-3years warranty to our products.
Q7: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.

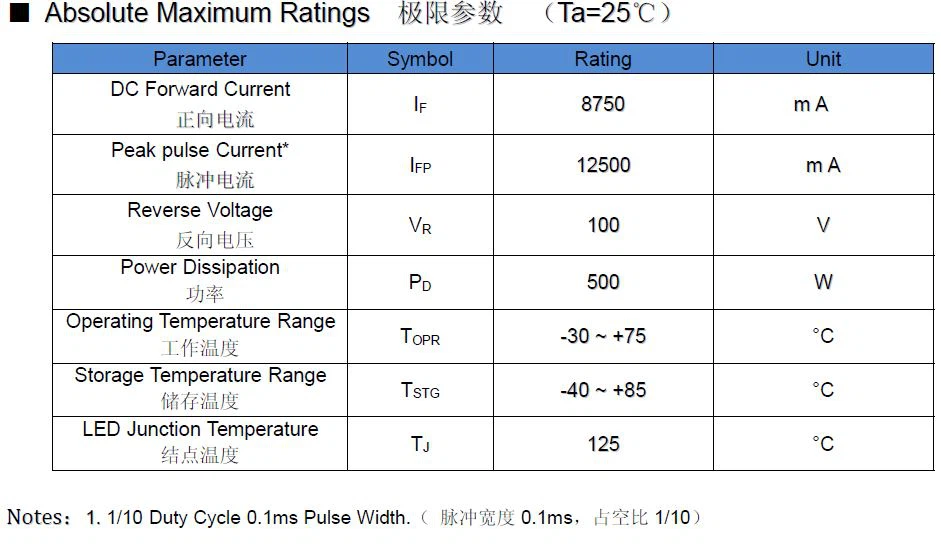

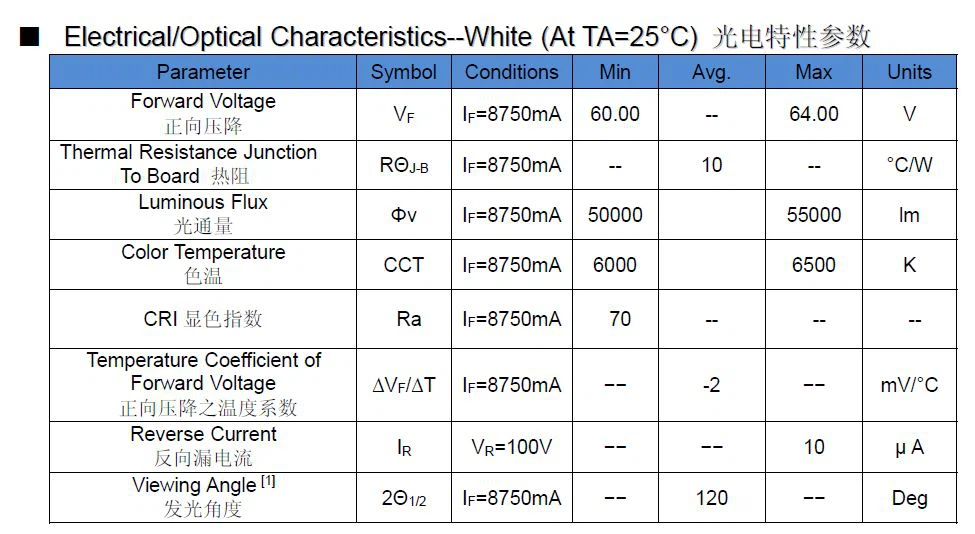

Datasheet:
For more details, please feel free to contact with Guangmai Tech directly.
You can download the English Version datasheet of 500W High power COB LED array for film light from the head of this page.
