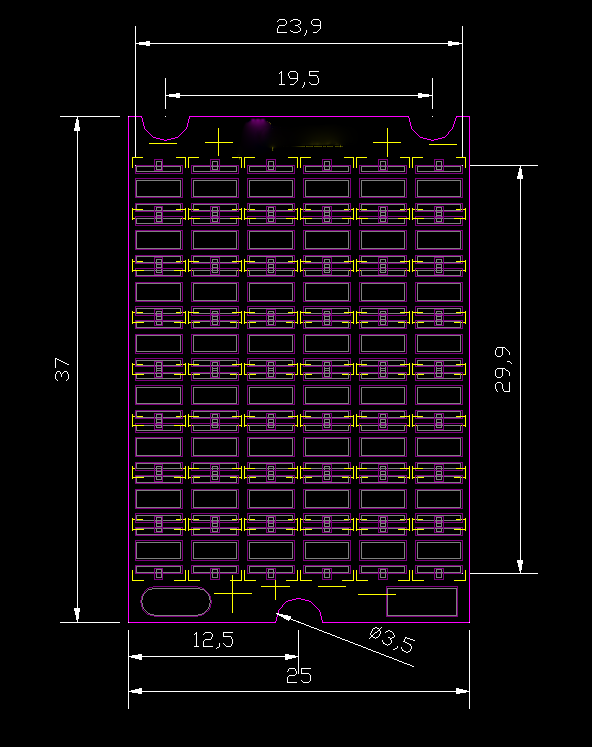

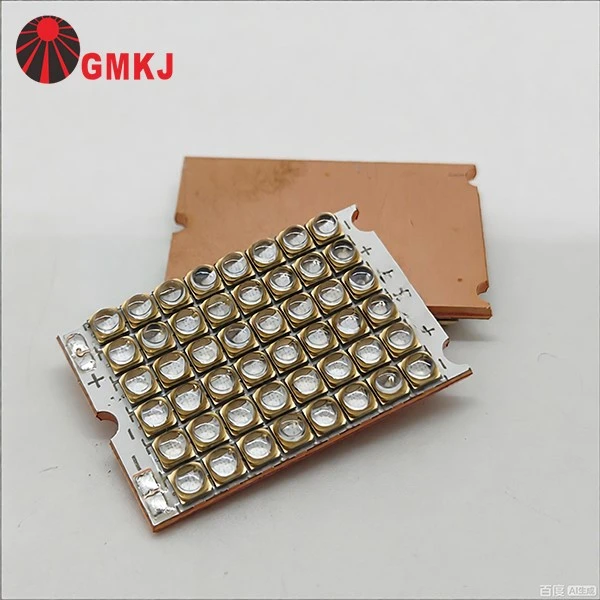

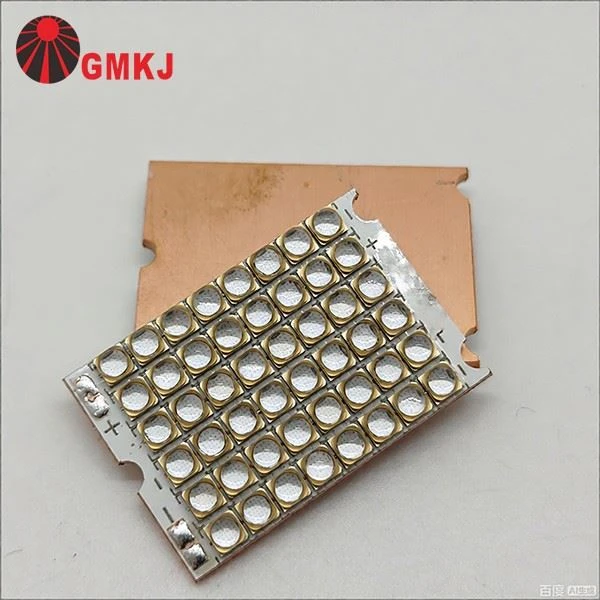

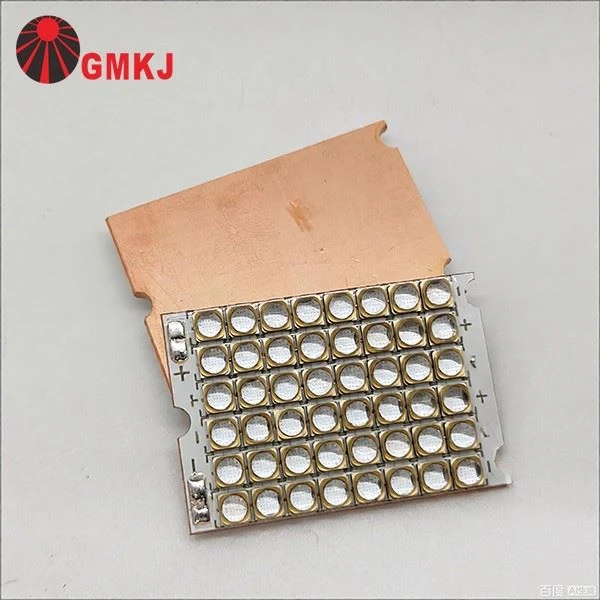

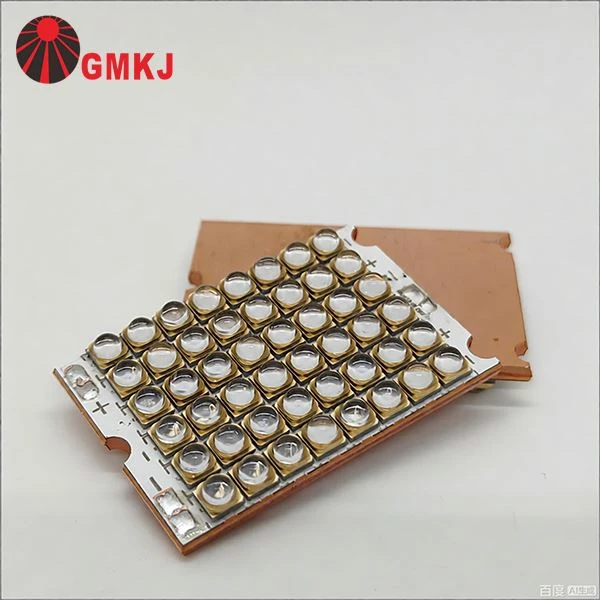

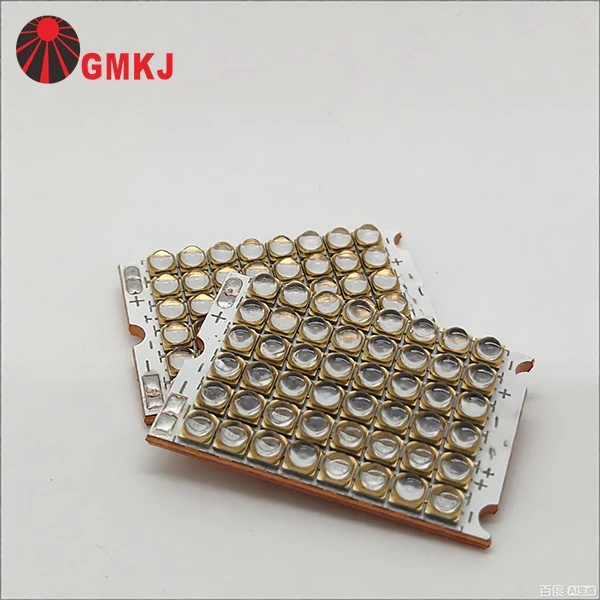

Small Size High Power UV Curing LED Module Board

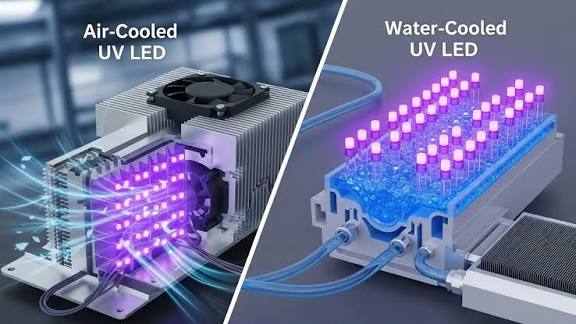

Why we need to cool the UV curing LED module by cold water recycle system instead of fans air cooling?

For a high-power UV curing LED module, water cooling is often used instead of fan/air cooling because the main issue is heat density, not simply total heat.

Why water cooling is preferred

Much higher heat-transfer capacity

Water can remove heat far more effectively than air.

A compact UV LED module may generate hundreds or thousands of watts of heat in a relatively small area.

A fan would need a very large airflow and heatsink to achieve the same cooling performance.

Better temperature uniformity
UV LEDs are sensitive to junction temperature. With water cooling, the cold plate can maintain a relatively uniform temperature across the whole LED array.

This helps reduce differences between LEDs at different positions.

Longer LED lifetime
UV LED output and lifetime are strongly affected by junction temperature.

Lower and more stable operating temperatures generally mean:
lower thermal stress → slower optical degradation → longer service life.

More stable UV output
This is particularly important for curing applications. As LED temperature rises, the optical output can decrease and the wavelength/forward characteristics can shift slightly.

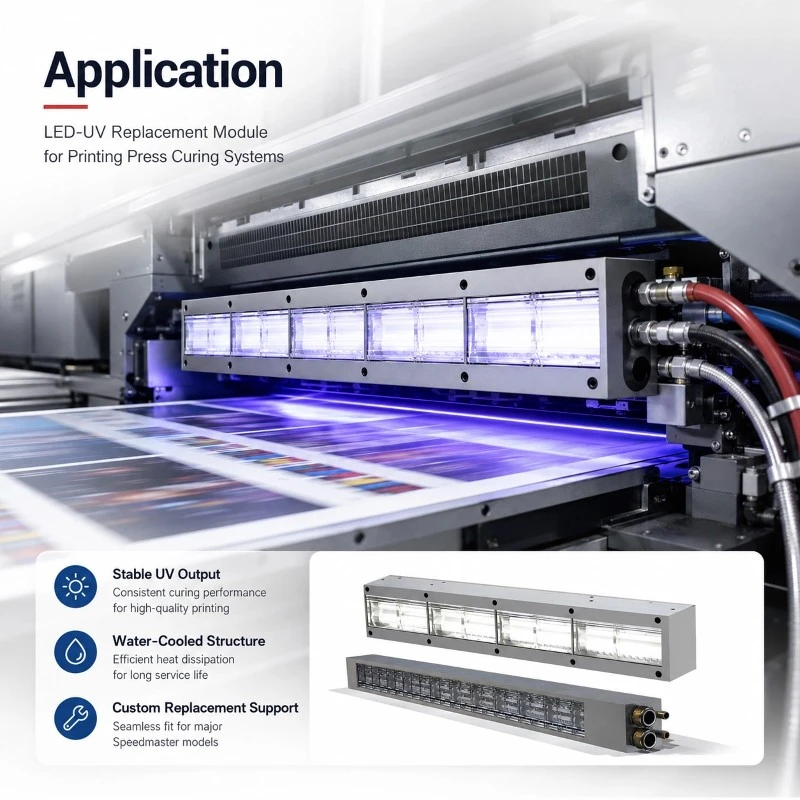

A recirculating water system can keep the LED module at a more stable temperature, helping maintain consistent UV irradiance during the curing process.

Compact design
If you use air cooling, you normally need:

LED → thermal interface → large heatsink → fans → airflow space

With water cooling:

LED → thermal interface → water-cooled cold plate → circulating water

This allows a much more compact high-power curing head.

Lower dependence on ambient conditions
Air cooling performance depends heavily on ambient temperature and airflow. If the factory temperature rises, the cooling capability of the fan/heatsink system decreases.

A properly designed water-chiller system can maintain a much more controlled coolant temperature.

In Summary, water cooling is preferred for high-power UV curing LED modules because the heat density is too high for conventional air cooling. A circulating cold-water system provides much higher heat-transfer efficiency, keeps the LED junction temperature more stable, and helps maintain consistent UV output and extend the LED's service life. It also allows the curing head to remain compact despite the high optical power.

One important point: water cooling is not automatically necessary for every UV LED module. For relatively low-power UV LEDs, a properly designed heatsink + fan can be sufficient. It becomes increasingly attractive when the module has high power density, continuous operation, a compact form factor, or tight UV irradiance/temperature requirements.
