Specification
Product Feature of cob led 460nm:
• Well-known chip material, Epileds
• 99.99% gold wire bonding
• High flux per LED
• More energy efficient than incandescent and most halogen lamps
• Instant light(less than 100ns)
Typical Applications of cob led blue chip:
• Portable (flashlight, bicycle)
• Uplighters/Downlighters
• Decorative/Entertainment (stage light)
• Bollards/Security/Garden
• Indoor/Outdoor Commercial and Residential Architectural
• Automotive Ext (Stop-Tail-Turn, CHMSL, Width Lamp)
For more details, please contact with GMKJ sales!
|
Part No. |
Power (W) |
WLD (nm) |
Lumen (lm) |
VF (V) |
IF (mA) |
Angle (deg) |
|
GP-20WB3-G30T-Z1GL |
20 |
460-470 |
200-400 |
30-34 |
700 |
140 |
|
GP-20WB3-G40T-Z1GL |
20 |
460-470 |
400-600 |
30-34 |
700 |
140 |
|
GP-20WB3-G45T-Z1GL |
20 |
460-470 |
500-700 |
30-34 |
700 |
140 |
|
GP-50WB3-G30T-Z1GL |
50 |
460-470 |
600-800 |
30-34 |
1750 |
140 |
|
GP-50WB3-G40T-Z1GL |
50 |
460-470 |
800-1000 |
30-34 |
1750 |
140 |
|
GP-50WB3-G45T-Z1GL |
50 |
460-470 |
1100-1300 |
30-34 |
1750 |
140 |
|
GP-100WB3-G30T-Z1GL |
100 |
460-470 |
1400-1600 |
30-34 |
3500 |
140 |
|
GP-100WB3-G40T-Z1GL |
100 |
460-470 |
1600-1800 |
30-34 |
3500 |
140 |
|
GP-100WB3-G45T-Z1GL |
100 |
460-470 |
2200-2400 |
30-34 |
3500 |
140 |

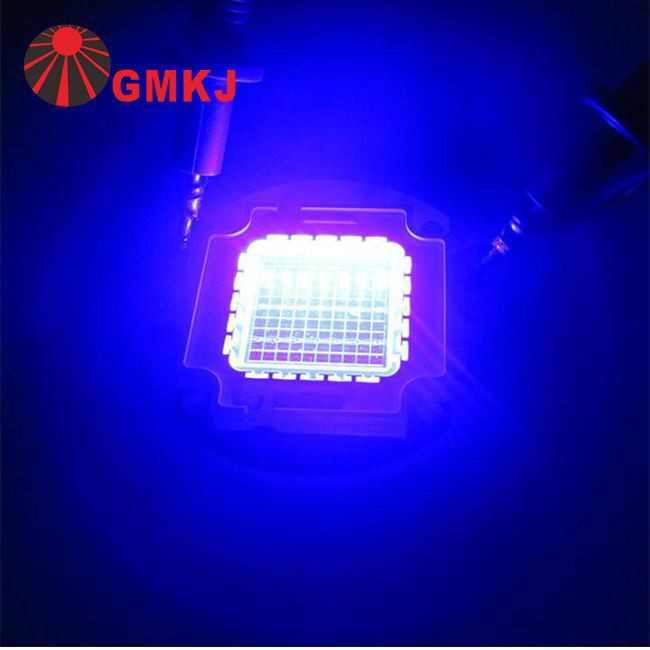

20W-100W BLUE COB LED clear pictures
GMKJ was established in 2010 with a registered capital of 67.23 million yuan, is one of a leading semiconductor light-emitting diode enterprises in China. Our company focus on R&D and innovation continuely, now it owns more than 70 patents for inventions and utility models, the products have passed international quality certifications such as CE,RoHS,EN62471,LM-80,etc.,.
With excellent quality, diversity and reliable performance, reasonable price, and satisfactory after-sales service, all of our products comply with international quality standards and are greatly welcomed in a variety of different markets throughout the world.
Production Ability
A. Our workshop covers an area of 50000 square meters
B. 180 advanced level fully automatic packaging lines
it was introduced the world's most advanced fully automatic production equipment (ASM, KAIJO, etc.).
C. Production Ability:
SMD 12000KK Per year
Power LED150KK per year
COB LED chip 6KK per year
D.Annual output value 4.0~4.5Billion Yuan.
Q: Is there any discount for bulk order?
A: Yes, if you need bulk order or you want customized products, we can provide wholesale price.
Q: How to place an order?
A: If you want to place an order, Please feel free to send us an inquiry email or contact us by trademanager online, we will reply you within 24hours(working day).
Q: What payment terms are available?
A: T/T,PayPal, Western Union and Secure Payment are preferred.
Q: Do you support drop shipping and how much is the shippping cost?
A: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, and it can be calculated.
Q: All the pictures are real photo?
A: Yes, the pictures of all products on this page are 100% real shoot by us.
Q: How about the quality of led?
A: Please do not worry about the quality. Our company is the main manufacturer of led in China. Our products have exported worldwide since the year 2009.
Q: Is there any custom duty and import tax?
A: Due to different policy in different countries, there might be some custom duty and import tax, but it is not considered in the price and should be paid by yourself. We are not responsible for any custom duty and import tax.
