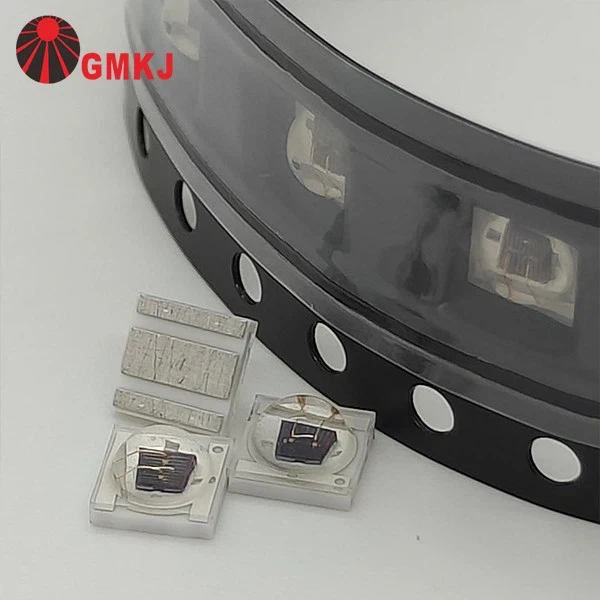

1450nm 3535 Ceramic SMD NIR LED for Water Molecule Detection
Why 1450nm NIR LED is Used for Water Molecule DetectionWater molecules show prominent absorption at the 1450nm near‑infrared band. As 1450nm infrared light interacts with moisture‑bearing materials, light intensity changes occur due to molecular energy absorption. Systems interpret these absorption signals to realize non‑contact, accurate moisture‑content measurement. Featuring fast real‑time measurement capability, 1450nm NIR light fits automated industrial inspection and process control. Stable optical performance and compact ceramic package make this LED a dependable light source for long‑run moisture‑detection instrument |
Grain & Agricultural Product Moisture Analysis
Food & Material Processing Moisture Detection
Paper, Textile & Industrial Material Moisture Monitoring
Optical and Electrical Performance Characteristics
| Item | Specification |
| Product Model |
GTY-3535R1400-1CC0-G1D2M
|
| Package Type | 3535 Ceramic SMD |
| Radiant Power (Po) | 80-100mW at 700mA |
| Dimension |
|
| Spectral Bandwidth(FWHM) | 90-100NM |
| Forward Current (If) | 700mA |
| Viewing Angle |
|
| Radiant Intensit | Custom Available |
| Forward Voltage (Vf) | 0.90-1.1v |
Related Products NIR LED 1450NM
|
|
|
|
|
|
|
|
| 1616 NIR LED 1450nm | 2020 LED 1450NM 3W | 5050 LED NIR 1450NM |
Electrical values listed below reflect standard operating conditions for stable infrared emission performance.
|
Parameter |
Symbol |
Conditions |
Min |
Avg. |
Max |
Units |
| Forward Voltage (Vf) |
VF |
IF=700mA |
0.90 |
-- |
1.20 |
V |
|
Thermal Resistance Junction To Board (热阻) |
RΘJ-B |
IF=700mA |
-- |
6.5 |
-- |
°C/W |
|
Radiant Output (光功率) |
Φe |
IF=700mA |
70 |
-- |
100 |
mW |
|
Peak wavelength (峰值波长) |
λp |
IF=700mA |
1400 |
-- |
1500 |
nm |
|
Temperature Coefficient of Forward Voltage (正向压降之温度系数) |
∆VF/∆T |
IF=700mA |
−− |
-- |
−− |
mV/°C |
|
Reverse Current (反向漏电流) |
IR |
VR=5V |
−− |
−− |
10 |
μ A |
|
Viewing Angle [1] (发光角度) |
2Θ1/2 |
IF=700mA |
−− |
120 |
−− |
Deg |
Industrial NIR LED Solutions for Moisture Detection Systems
Developing advanced moisture detection equipment and NIR sensing systems? GMKJ offers high-reliability 1450nm ceramic SMD LED light sources tailored for water molecule detection, featuring stable wavelength accuracy, superior thermal stability and consistent optical output for industrial precision measurement systems.
We provide professional customized LED solutions covering wavelength calibration, optical characteristic adjustment, package optimization and application adaptation testing. From prototype validation to large-scale mass production, GMKJ supports equipment manufacturers in integrating high-stability NIR LED light sources into moisture analysis and industrial inspection systems.
Feel free to contact GMKJ to obtain 1450nm NIR LED samples, detailed technical datasheets and exclusive customized solutions for your moisture detection projects.
