3w high power led 300lm 6500k Bridgelux chips
Product Features:
Super high Lumen Efficiency up to 170LM/W+
Use Original US Bridgelux45mil High Bin chips
Use Pure Gold Wire from Germany Heraeus
Use Pure Copper Base with high thermal conductivity.
Various CCT Choice: from 2000k to maximum 20000k
Lower Light Decay less than 3% after 8000hrs
IEC62778, EN62471, RoHS, LM-80 certificate approved
Electrical/Optical Characteristics--White (At TA=25°C)
Parameter | Symbol | Conditions | Min | Avg. | Max | Units |
Forward Voltage
| VF | IF=700mA | 3.2 | -- | 3.60 | V |
Thermal Resistance Junction To Board
| RΘJ-B | IF=700mA | -- | 8 | -- | °C/W |
Luminoux flux
| Φe | IF=700mA | 250 | 300 | mw | |
Color Temperature
| λp | IF=700mA | 6000 | 6500 | nm | |
Temperature Coefficient of Forward Voltage
| ∆VF/∆T | IF=700mA | −− | -2 | −− | mV/°C |
Reverse Current
| IR | VR=10V | −− | −− | 10 | μ A |
Viewing Angle [1]
| 2Θ1/2 | IF=700mA | −− | 120 | −− | Deg |
Product Picture
Package Dimension
Application
High power LED ligting advantage:
Advantages of high power LED lighting:
1. The dynamic control of brightness and color is more possible: the brightness can be adjusted continuously, the color purity is high, the dynamic color conversion and digital control can be realized;
2. Long life: LED product life up to 55000 hours, 24 hours continuous light can be used for 6 years;
3. Low power consumption: the power consumption of LED with luminous efficiency of 60 LM / w will be about 80% lower than that of the same incandescent lamp;
4. Environmental protection: no toxic metal mercury, no infrared semiconductor lighting network and ultraviolet radiation;
Five dimensions of flexibility: it can realize the organic combination with architecture, so that only light is not light;
The high-power LED lighting with so many advantages makes us think that it is a valuable work to vigorously promote the use of it. However, it also has some disadvantages, such as the low color of white light lighting. At present, the yellow and blue fluorescent white light LEDs with color rendering index of about 80 can also be used for general lighting, but it is difficult for some places requiring high resolution It's not enough. Although red phosphor is added by proper method, it can make up for 90% CRI above the shortcomings, but compared with the incandescent lamp 99, there is still a certain gap, and its efficiency will be affected. In terms of color, high-power LED lighting needs to be upgraded. Finally, because the price is too high, in fact, due to the consideration of comprehensive cost, the use of LED lighting in many occasions still saves a lot of cost.
High POWER LED use instructions:
1、 Storage:
1. In order to avoid moisture absorption, it is recommended to store the product in the drying cabinet with desiccant at 5 ℃ ~ 30 ℃ and humidity ≤ 60% hr;
2. After storage for six months, it is recommended to use it again after light and color separation to prevent photoelectric parameters from changing.
2、 If the product is sealed with silica gel
1. It is recommended to dry the products that have been sealed for more than six months before use. The drying condition is 65 ℃± 5 ℃ for 10 hours;
2. The product should be used up within 24 hours after opening, otherwise it should be baked at 65 ℃ for 4-6 hours before reflow soldering;
3. Do not press the silicone surface with any sharp objects (such as tweezers). Do not leave fingerprints on the surface of silicone. The normal pressure on the surface of silica gel should be less than 2 N, and the pressure should be less than 2 n
The pressing times are less than 3 times; the side pressure of silicone gel is less than 1.5 Newton, and the pressing times are less than 3 times. Pick up materials correctly (as shown in the figure below)
3、 Rapid cooling is not allowed after reflow.
4、 Soldering iron is used for manual welding, and the condition is 300 ℃ / 3sec.
5、 Welding on deformed PCB board is forbidden.
6、 The product shall not come into contact with water, oil or organic solution.
7、 The junction temperature of LED should be considered for the working current value of the product.
8、 Repackage unused products and store them in a dry place after sealing in a moisture-proof bag.
9、 Product dimensions can be changed without notice.
10、 Anti static requirements: when using the product, you must wear anti-static ring or anti-static gloves
About GMKJ LED

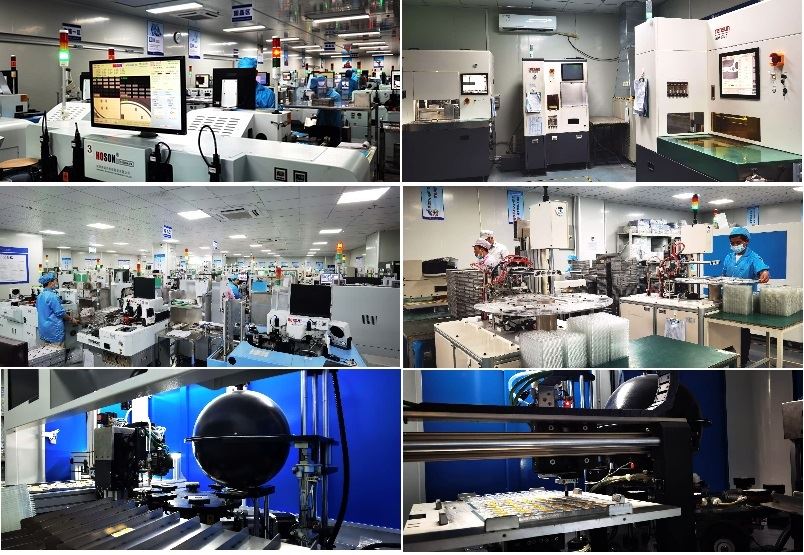

Founded in 2009, Shenzhen Guangmai electronics Co., Ltd. is a high-tech optoelectronic lighting enterprise integrating development, production, sales and after-sales service. It adopts advanced and mature production equipment, professional optoelectronic technology and management talents, and constantly introduces advanced technology and management experience, Committed to providing new and old customers with high-quality products, services and design solutions.
The company specializes in the production of LED single integrated high-power, 1-500w; SMD chip 2835, 3020, 3535, 5050, 5074, 5630, 5730 and other 0.1-1w series products, as well as finished lamps and lanterns led floodlights, led mining lights, LED fluorescent tubes, led ceiling lights, LED landscape lighting, LED indoor lighting, LED road lighting and other application products. All the light source series products of our company adopt imported chip, 1.0 gold wire and silica gel package; they have the characteristics of high luminous efficiency, narrow spectrum, good monochromaticity, high color rendering, green environmental protection, precise constant current, life up to 50000 hours, low attenuation, high brightness, low energy consumption, strong antistatic ability, high brightness, good light color consistency and high cost performance; they are widely used in LED lamps, etc
FAQ
Q: What technical support can I get after purchase?
A:Data sheet and operation manual will be provided to dear you. Our sales engineer will be answering your questions any time.
Q: What’s the highest efficiency of your smd led.
A: For SMD5050 LED, highest efficiency is 220lm/w.
For SMD3030 LED, the highest efficiency is 200lm/w .
For SMD2835 LED, the highest efficiency is 195lm/w
Q: What about the lead time?
A:It depends on the order quantity. In general, lead time is about 5-7 working days. For samples, the delivery could be as fast as same day.
Q: Would you offer free samples?
A:Yes, We would offer free samples for P02 LED (1W high power LED, 6 pins 3W RGB LED), 3030 SMD LED, 5050 SMD LED, 3535 RGB LED,
3535 RGBW LED, etc.
