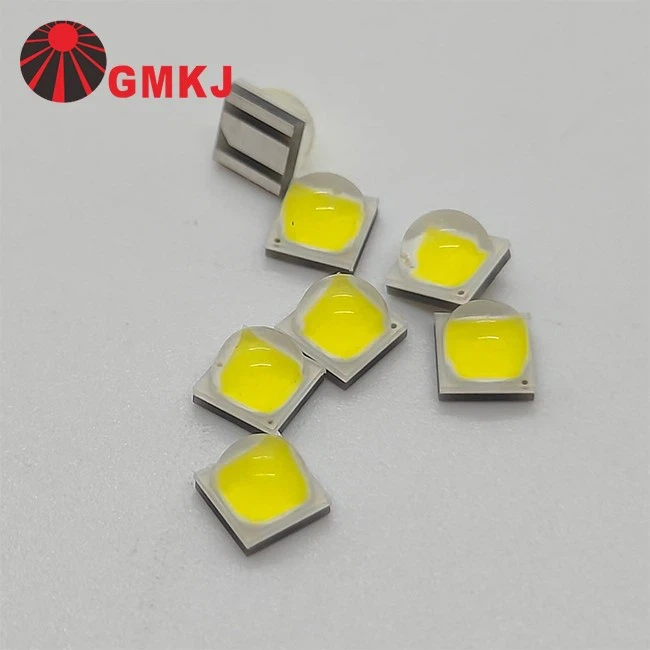

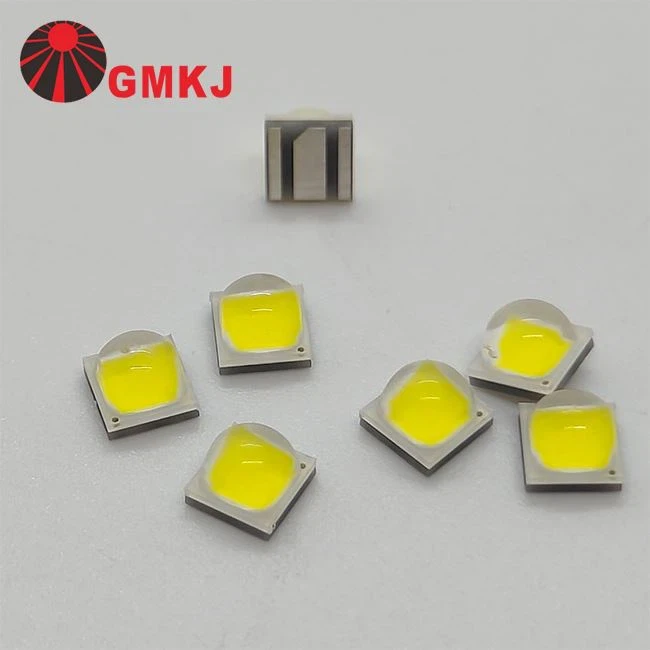

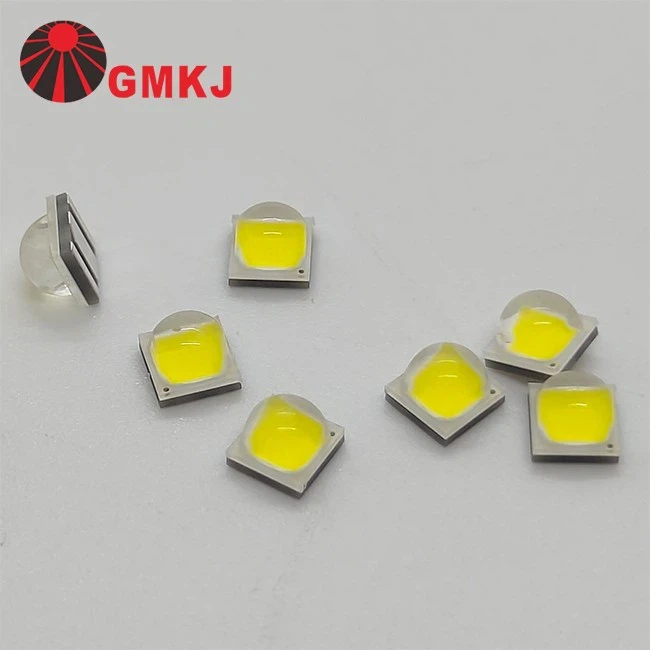

High Power 3535 Ceramic LED 10W for Industrial Lighting Applications
High-Efficiency Intro
GMKJ High Power 3535 Ceramic LED 10W is designed for demanding industrial lighting applications requiring high luminous efficacy, excellent thermal management, and long operational life.
Featuring a ceramic substrate with low thermal resistance, this LED delivers stable optical performance under high current operation. It is suitable for high bay lights, floodlights, stadium lighting, explosion-proof fixtures, and heavy-duty outdoor lighting systems.
Key Benefits:
• High luminous efficiency
• Excellent heat dissipation
• High reliability under continuous operation
• Low thermal resistance ceramic package
• Long service lifetime
High Power 3535 LED 10W
|
|
|
3535 LED 10W Electrical Parameters
|
Parameter |
Symbol |
Conditions |
Min |
Avg. |
Max |
Units |
| Forward Voltage (Vf) |
VF |
IF=3000mA |
2.80 |
-- |
3.40 |
V |
|
Thermal Resistance Junction To Board (热阻) |
RΘJ-B |
IF=3000mA |
-- |
3 |
-- |
°C/W |
|
Luminous Flux (流明) |
Φe |
IF=3000mA |
1150 |
-- |
1350 |
LM |
|
Color Temperature
(色温)
|
λp |
IF=3000mA |
2800 |
-- |
3200 |
K |
|
CRI
(显色指数)
|
Ra
|
IF=3000mA | -- | 80 | -- | |
|
Temperature Coefficient of Forward Voltage (正向压降之温度系数) |
∆VF/∆T |
IF=3000mA |
−− |
-- |
−− |
mV/°C |
|
Reverse Current (反向漏电流) |
IR |
VR=5V |
−− |
−− |
10 |
μ A |
|
Viewing Angle [1] (发光角度) |
2Θ1/2 |
IF=3000mA |
−− |
120 |
−− |
Deg |
| Parameter | Specification |
| Power | 10W |
| Forward Voltage | 3V |
| Max Current | 3A |
| Luminous Flux | 1100-1400lm at 3A CRI 80, 3000k 25° |
| Color Temperature | 2700-6500K |
| Color Rendering Index | CRI 70/80/90 |
| Beam Angle | 120° |
| Operating Temperature | 40°C to +85°C |
Applications
GMKJ 3535 Ceramic LED 10W is engineered for high-power lighting systems that require superior thermal performance, stable lumen output, and long-term reliability. Its ceramic package design makes it suitable for both indoor and outdoor industrial environments.
Typical Applications
• LED High Bay Lighting
• Industrial Flood Lights
• Warehouse Lighting
• Tunnel Lighting
• Stadium and Sports Lighting
• Port and Harbor Lighting
Need a Reliable 3535 Ceramic LED Solution?
GMKJ provides high-performance 3535 Ceramic LED 10W solutions for industrial and outdoor lighting applications. Our engineering team supports both standard and customized projects to meet your specific requirements.
Our Services
✓ Custom CCT and CRI Options
✓ High-Efficiency Industrial Lighting Solutions
✓ Optical and Thermal Design Support
✓ PCB Integration Recommendations
✓ OEM & ODM Manufacturing
✓ Fast Sample Service
✓ Stable Mass Production
Whether you are developing high bay lights, flood lights, stadium lighting, or other industrial lighting systems, GMKJ can help optimize your LED solution for performance and reliability.
