Deep Blue 3W 5W 470nm 3535 SMD LED Specs
| Product name | Deep Blue 3W 5W 470nm 3535 SMD LED |
| Part number | GD-3535B470-1CC0-S1C8M |
| Chips brand | China Sanan 38mil vertical chip |
| Manufacturer brand on Label |
GMKJ Brand Manufactured by Guangmai Technology Co., Ltd, located in Shenzhen city, China |
| Input |
2.8-3.2vdc IFmax 1500mA |
| Luminous/ Radiant Flux |
60-80lm at 700mA, 80-100lm at 1000mA |
| Lighting Efficiency |
Around 50 lm/w at 350mA |
| Wavelength/Color | Deep blue 470-475nm |
| Power |
Max power 5 Watt at 1500mA |
| Package material |
ALN ceramic, 3.5x3.5 mm size smd led |
| Lighting angle |
120 degree lighting angle, dome silicone lens |
| Price | Please contact with GMKJ Sales team for the Price |
| Warranty | 3-4 years |
| OEM service |
1. SKD parts available; 2. Customised LED array with the size you need is OK here. |

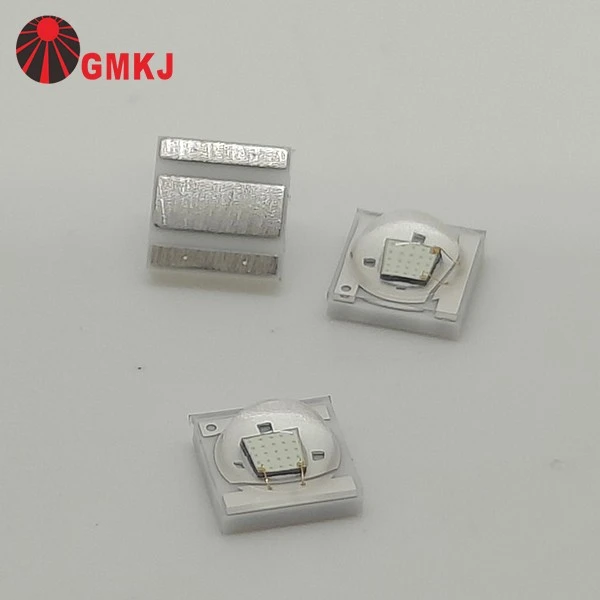

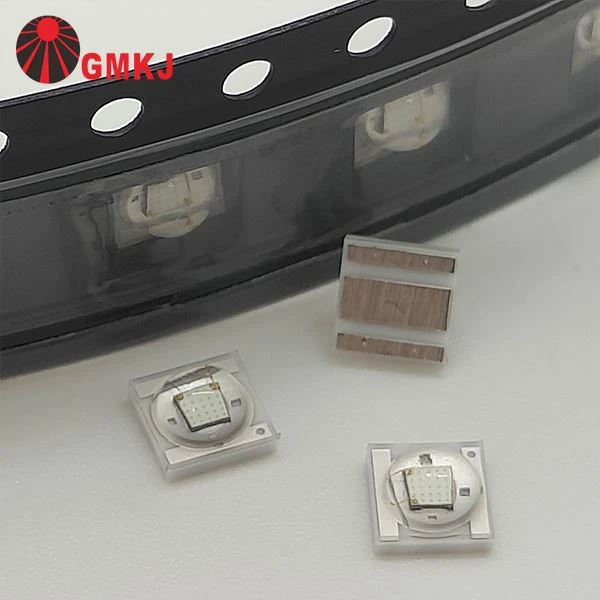

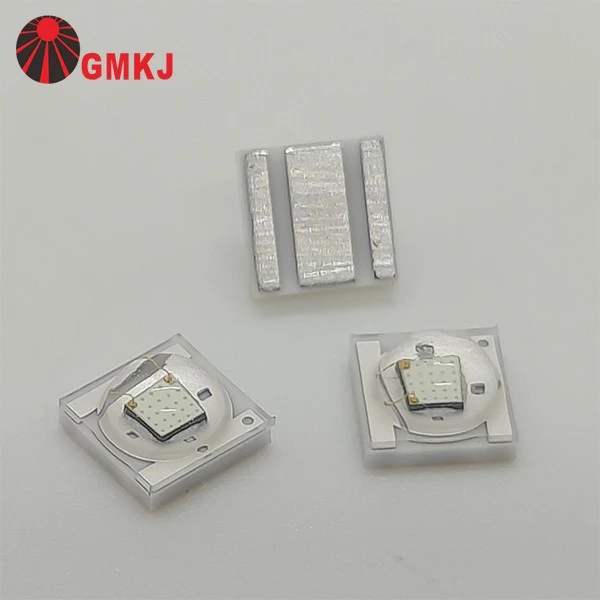

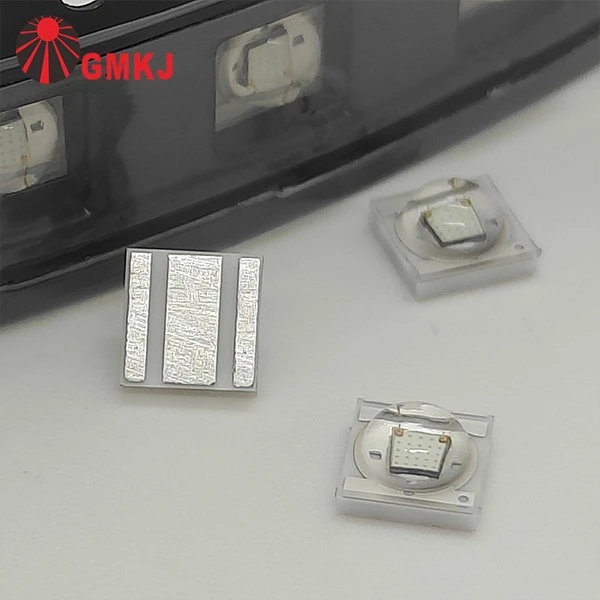

Deep Blue 3W 5W 470nm 3535 SMD LED picture
What we are making now for 3535 smd leds:
 |
 |
|
3535 RGB 3in1 smd leds 3535 RGBW 4in1 smd leds
|

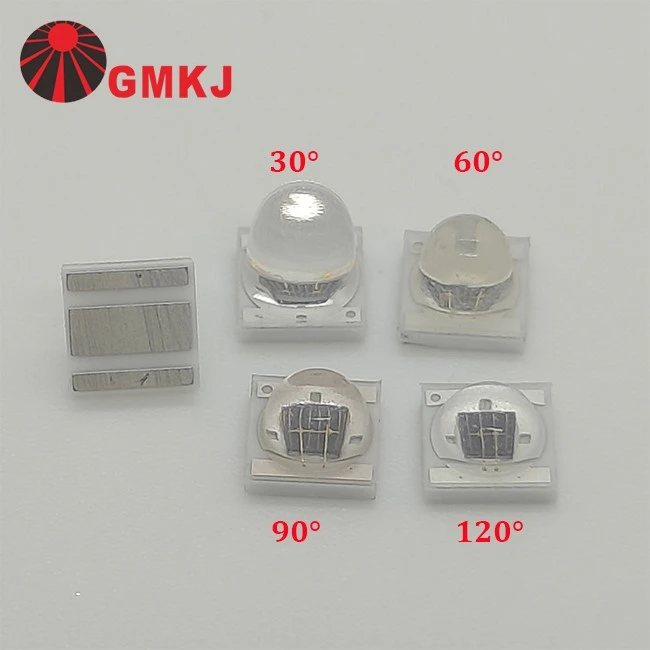

3535 smd leds with different lighting angles: 30, 60, 90 and 120 degree beam angle |
 |
 |

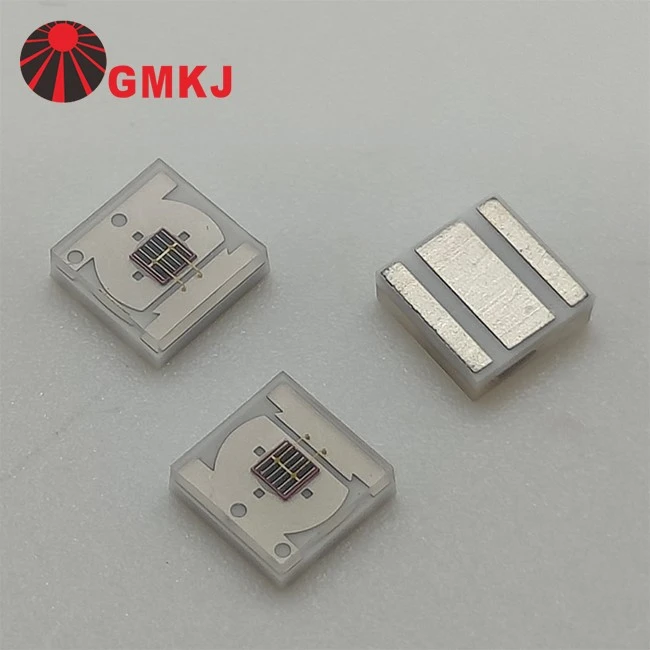

| Flat pkg 3535 smd leds with thin thickness |
3535 smd leds soldered with MCPCB boards, size including: 8mm, 12mm, 16mm and 20mm diameter |

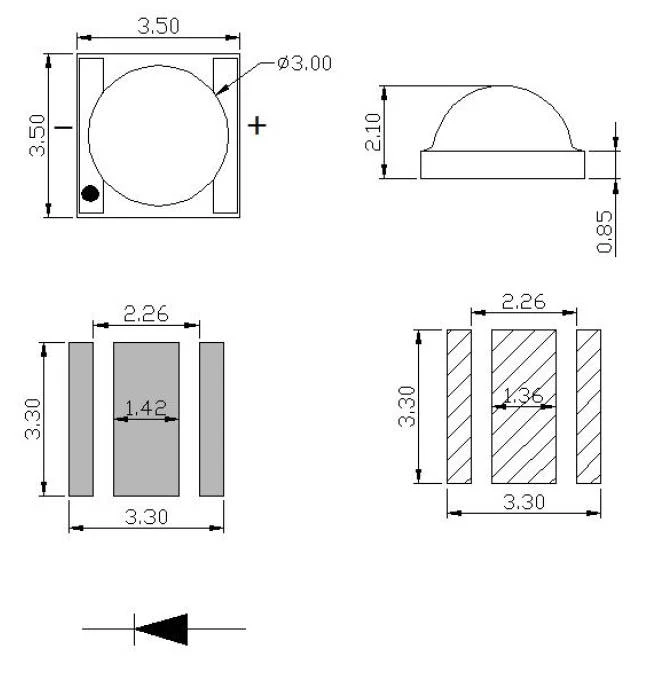

Deep Blue 3W 5W 470nm 3535 SMD LED Dimension
Deep Blue 3W 5W 470nm 3535 SMD LED Specs
|
Parameter |
Symbol |
Conditions |
Min |
Avg. |
Max |
Units |
|
Forward Voltage |
VF |
IF=700mA |
2.80 |
-- |
3.20 |
V |
|
Forward Voltage |
VF |
IF=1000mA |
3.00 |
-- |
3.40 |
V |
|
Luminous Flux |
Φv |
IF=700mA |
60 |
-- |
80 |
lm |
|
Luminous Flux |
Φv |
IF=1000mA |
80 |
-- |
100 |
lm |
|
Dominant wavelength |
λd |
IF=700mA |
470 |
-- |
475 |
nm |
|
Dominant wavelength |
λd |
IF=700mA |
470 |
-- |
475 |
nm |
|
Reverse Current |
IR |
VR=5V |
−− |
−− |
10 |
μ A |
|
Viewing Angle [1] |
2Θ1/2 |
IF=700mA |
−− |
120 |
−− |
Deg |
|
Thermal Resistance Junction To Board |
RΘJ-B |
IF=700mA |
-- |
5 |
-- |
°C/W |

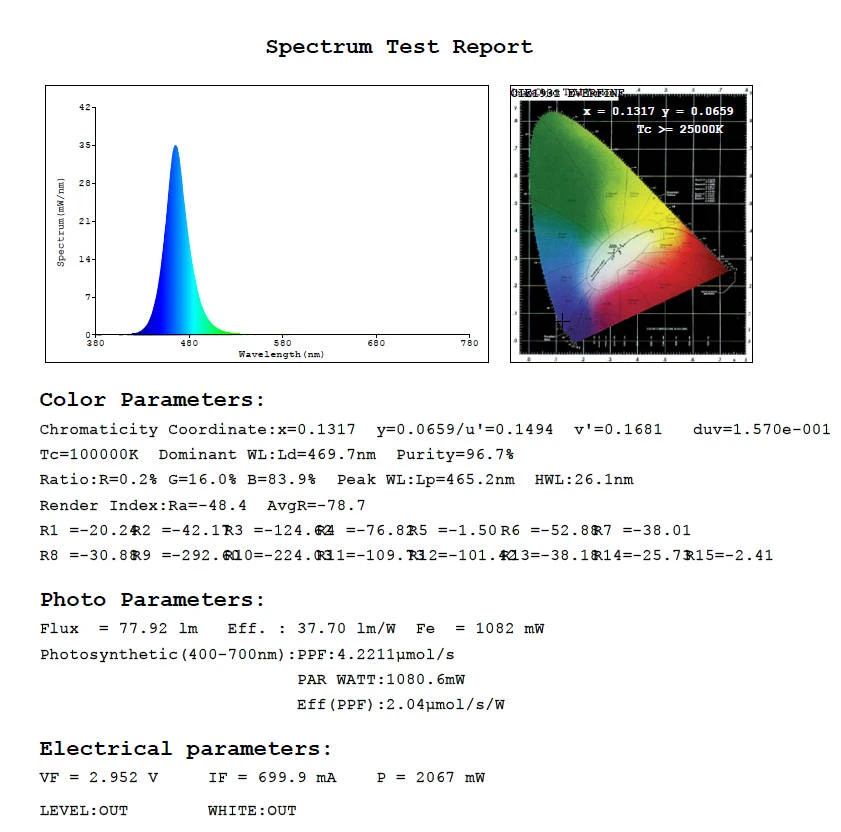

470nm 3535 smd leds test report at 700mA:
About GMKJ
Guangmai Technology is a professional LED manufacturer established in 2009, specializing in LED packaging and custom LED solutions.
Our main products include SMD LEDs, High Power LEDs, COB LEDs, UV LEDs, IR LEDs, VCSELs, and ceramic substrate LEDs. We offer wavelengths from 200nm to 3000nm for applications such as horticulture lighting, medical devices, industrial curing, machine vision, security, and scientific research.
With advanced production equipment, strict quality control, and experienced engineering support, we provide reliable products and customized solutions to customers in more than 50 countries worldwide.
We are committed to delivering high-quality LED products, competitive pricing, and professional service to our global partners.
You can download the datasheet from this page for related SMD LEDs.
If you need more details like price, min order quantity, stock status and lead time, please contact with GMKJ LEDs directly!
