2016 Ceramic UV LED 3W 365nm UVA Chip for Curing & Fluorescent Detection
Why 365nm UV Illumination Improves Image Detection
365nm UVA is the ideal wavelength for industrial image detection. It delivers pure, low-noise UV light without visible stray interference, effectively exciting hidden flaws like micro-cracks, oil stains and fluorescent residues. Compared with white light, it significantly boosts image contrast, suppresses background noise, and reduces misdetection. Our stable 3W 365nm UV LED provides flicker-free uniform illumination for precise, high-speed machine vision inspection.
Industrial Application Fields of 3W 2016 UV LED 365nm
PCB Surface Inspection
365nm UV illumination improves the visibility of residues, coatings, and fine surface details during electronic inspection.
Security Printing and Banknote Authentication
365nm UV illumination is widely used to reveal security features embedded in banknotes and security documents that are not visible under normal lighting conditions.
Industrial Surface Inspection
High-contrast UV illumination helps reveal scratches, cracks, and surface imperfections that are difficult to observe under visible light.
This 2016 3W 365nm ceramic UV LED serves multiple industrial fields. It works for UV glue curing, printing ink drying and 3D printing resin molding. It also fits machine vision defect inspection, oil stain detection and anti-counterfeit identification. Besides, it can be assembled into nail lamps and laboratory photochemical equipment. Mercury-free and stable, it matches all small and medium UV light modules for long-time continuous production.

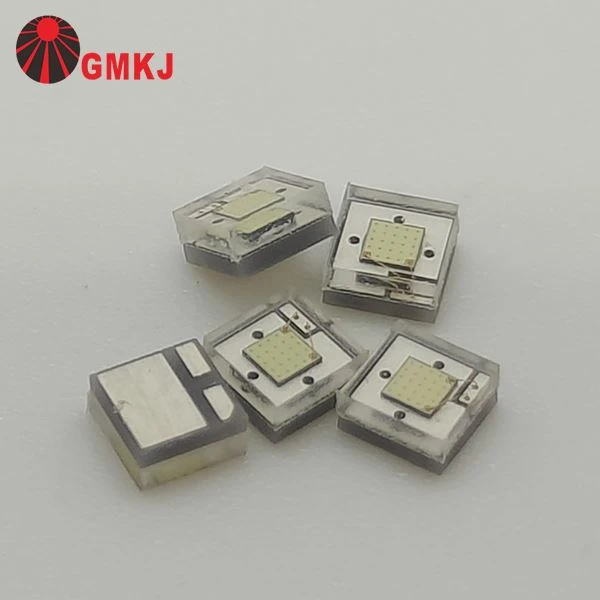

High Power 365nm UVA Ceramic UV LED Product Pictures
Technical Electrical Specifications
The following parameters describe the typical electrical and optical characteristics of the 2016 Ceramic 365nm UV LED. Actual performance may vary depending on driving conditions and thermal design.
| Parameter | Specification |
| Part Number | GDY-2016P365-1CC0-G1D5PM |
| Peak Wavelength | 365nm |
| Power rating | 3W |
| Package Type | 2016 package |
| Viewing Angle | 120 beam angle |
| Forward Current | 1000mA |
| Applications | Fluorescence inspection UV illumination Machine vision Industrial detection |
| Radiant flux | 800-1000mW at 700mA 3.4V |
Customized optical power levels and viewing angle configurations are available for UV imaging systems and application-specific lighting designs.
The following electrical values represent typical operating conditions for stable near-UV illumination performance.
|
Parameter |
Symbol |
Conditions |
Min |
Avg. |
Max |
Units |
| Forward Voltage (Vf) |
VF |
IF=700mA |
3.20 |
-- |
3.60 |
V |
|
Thermal Resistance Junction To Board (热阻) |
RΘJ-B |
IF=700mA |
-- |
5.0 |
-- |
°C/W |
|
Radiant Output (光功率) |
Φe |
IF=700mA |
800 |
-- |
1000 |
mW |
|
Peak wavelength (峰值波长) |
λp |
IF=700mA |
365 |
-- |
370 |
nm |
|
Temperature Coefficient of Forward Voltage (正向压降之温度系数) |
∆VF/∆T |
IF=700mA |
−− |
-- |
−− |
mV/°C |
|
Reverse Current (反向漏电流) |
IR |
VR=5V |
−− |
−− |
10 |
μ A |
|
Viewing Angle [1] (发光角度) |
2Θ1/2 |
IF=700mA |
−− |
120 |
−− |
Deg |
| These electrical characteristics support consistent output required for material differentiation and spectral response analysis. |
Light Source Solution for UV Visual Testing & Precision Defect Detection
If you develop fluorescent visual equipment, industrial inspection machines or high-contrast UV vision kits, GMKJ offers custom 365nm UV LED light sources for precision optical projects.
We provide wavelength sorting, optical design suggestions and personalized UV module development matching your imaging demands.
Our engineers help develop durable UV lighting systems for industrial vision, covering individual LED assembly as well as PCB UV array design.
Get Engineering Support
GMKJ LED | UV & Machine Vision Lighting Solutions
Jennin
GMKJ LED | UV Solutions
Email: gmkj06@gmleds.com
WhatsApp: +86-18878641376
Available Support:
- UV Wavelength Selection (365 / 385 / 395 / 405nm)
- Machine Vision Light Source Design
- PCB UV Module Customization
- Sample Evaluation & Testing Support
