Production Introduction

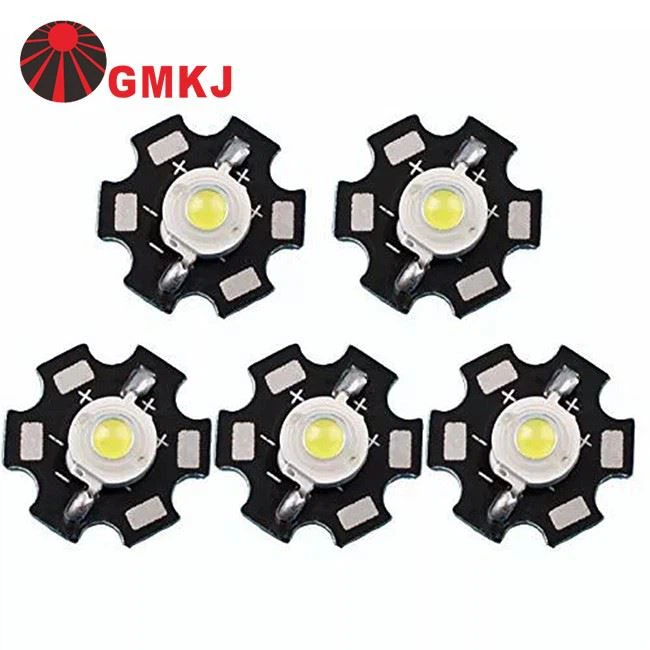

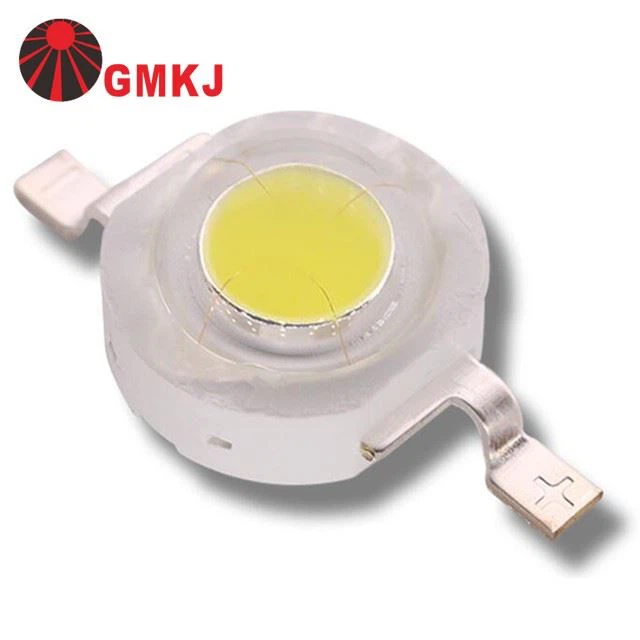

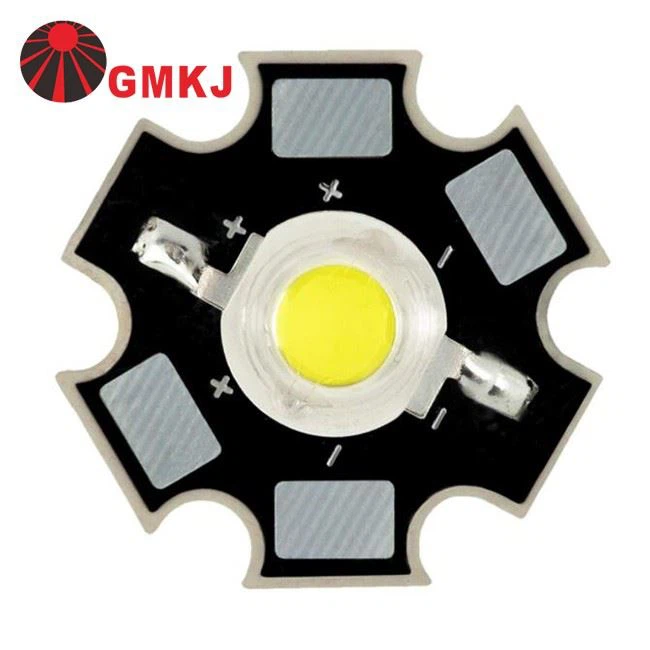

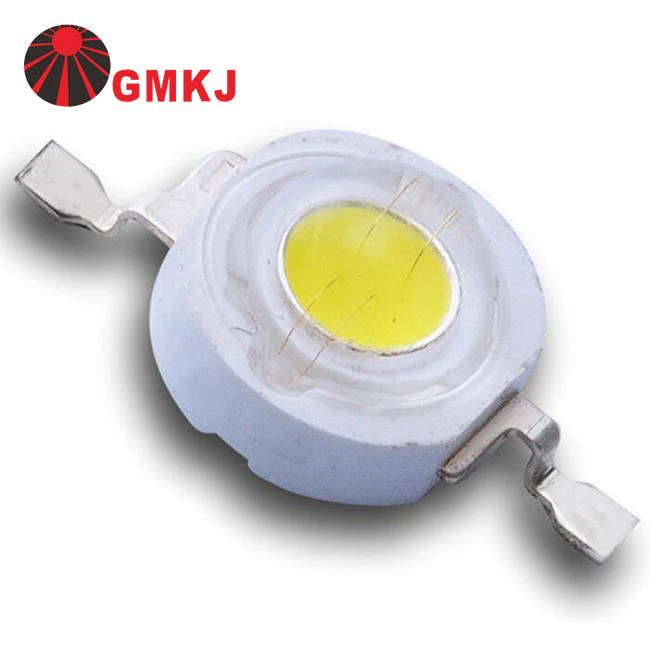

| Name | High power white led 1w 3w 5w led chip with star pcb |
| Power | 3w |
| Current | 700mA |
| Voltage | 3-3.4vdc |
| Lumen | 260-300lm |
| CCT | 6000-6500k |
| CRI | 70 |
| Chip brand | Bridgelux |
| Life-span | 50000 hours |
| Usage | Street light, sopt light, flood light, ceiling light, down light, garden light, wall lamp, tunnel light, lighting project and so on |

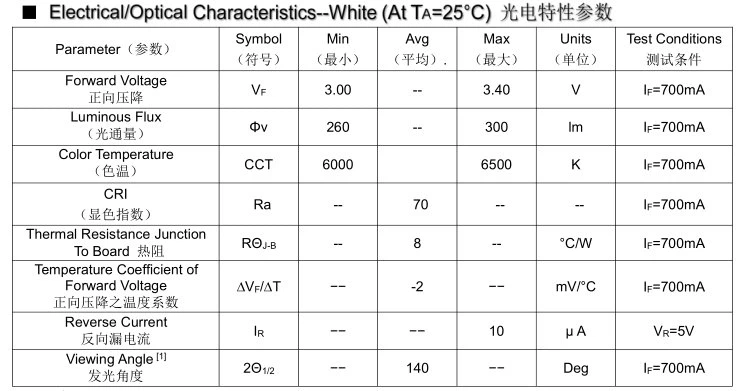

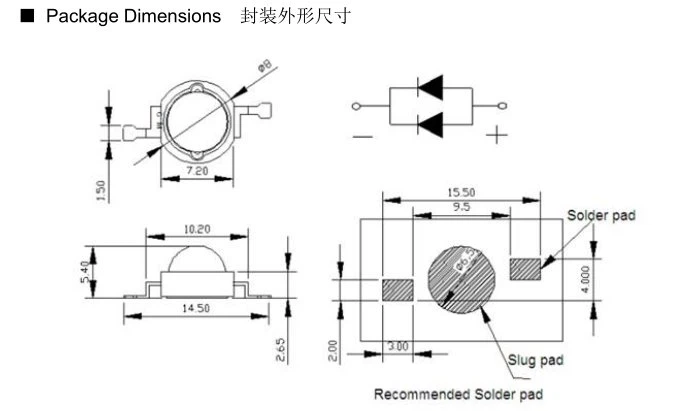

Product parameters
Features
* High-brightness lamp beads: general bright, high-brightness, super-brightness, mixed white light
* Imported chips: Epistar, Cree, uniform color
* Imported glue: moisture-resistant, anti-vulcanization, undead light
* Super long life: up to 50,000 hours
* High quality: low impedance, high brightness, zero light decay
* Wide range of applications: automotive light, keyboard light, backlight, indication light

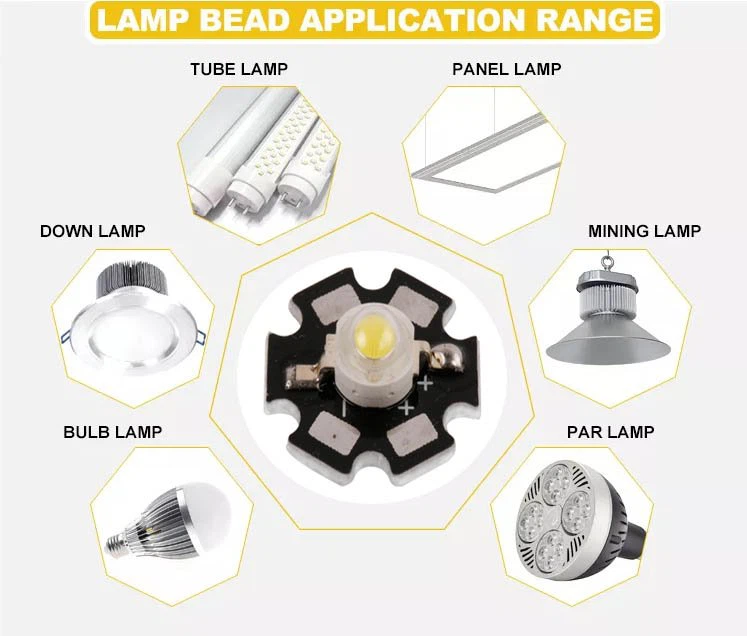

Applications
Why choose us
1. Quality: professional customization, three-year warranty
2. Reputation: rich experience, export quality
3. Service: provide one-to-one 24-hour service
4. Commitment: During the warranty period, there is no reason to replace
5. Factory: strong factory, long-term spot
Importance of LED chips
The most essential component of an LED light bulb is the chip. Think of a computer chip that holds all the data and knowledge of the computer. This is where all the action happens! If you didn’t know already, LED stands for light emitting diode. A diode is a two-way electronic component that emits light by allowing an electrical current to flow throughout the light bulb.
You can find these LED chips in every LED light fixture, from bulbs to tubes. Due to their fundamental components, LED chips play a huge role in determining light quality. They are manufactured with various brightness, voltage, and wavelengths. They are manufactured through a process called MOCVD or metal-organic chemical vapor deposition. During this process, semi-conductor layers are built to allow the electricity to flow.
Shippment
FAQ
1. Do your products have quality assurance?
Our products are certified by LM-80, CE, FCC, RoHS, please rest assured to buy.
2. Are you a factory?
Yes, our factory is located in Bao'an, Shenzhen, welcome to visit when you have time.
3. Can I just buy a little sample?
Yes, we support small orders.
4. How do I place an order?
Please contact our sales manager after you find your mailbox on the website.
5. What payment methods do you support?
We support TT, Alibaba online payment, Euro, RMB and other payment methods.
