Products Description
LED module lens details:
| Power | LED QTY on board | LED type | Input LED driver specs | Lighting angle |
| 30W | 30 LEDs |
3030 smd leds 1w, USA Bridgelux 160-180lm/W or USA Bridgelux 200-210lm/W |
5S6P, 28-34vdc 900mA | 30, 60, 90 degree and street light 70*140 degree lighting angle |
| 40W | 40 LEDs |
3030 smd leds 1w, USA Bridgelux 160-180lm/W or USA Bridgelux 200-210lm/W |
5S8P, 28-34vdc 1200mA | 30, 60, 90 degree and street light 70*140 degree lighting angle |
| 50W | 50 LEDs |
3030 smd leds 1w, USA Bridgelux 160-180lm/W or USA Bridgelux 200-210lm/W |
5S10P, 28-34vdc 1500mA | 30, 60, 90 degree and street light 70*140 degree lighting angle |
| 56W | 56 LEDs |
3030 smd leds 1w, USA Bridgelux 160-180lm/W or USA Bridgelux 200-210lm/W |
8S7P, 46-50vdc 1050mA | 30, 60, 90 degree and street light 70*140 degree lighting angle |
| 64W | 64 LEDs |
3030 smd leds 1w, USA Bridgelux 160-180lm/W or USA Bridgelux 200-210lm/W |
8S8P, 46-50vdc 1200mA | 30, 60, 90 degree and street light 70*140 degree lighting angle |

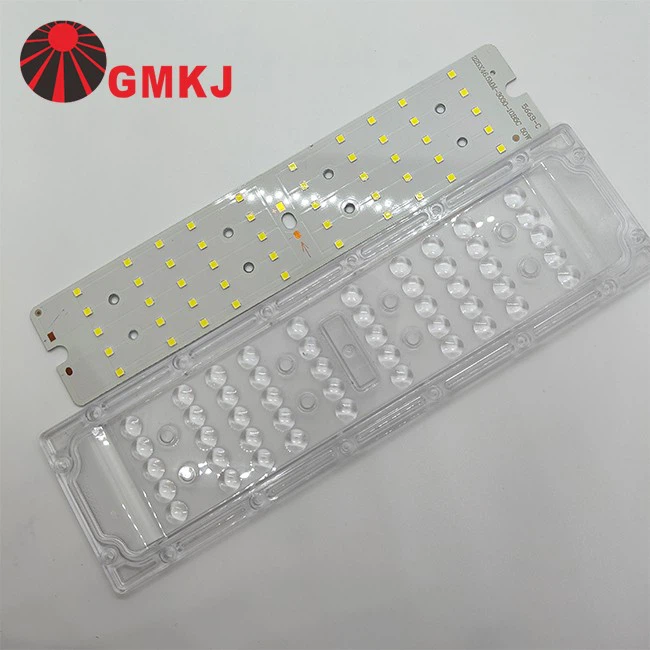

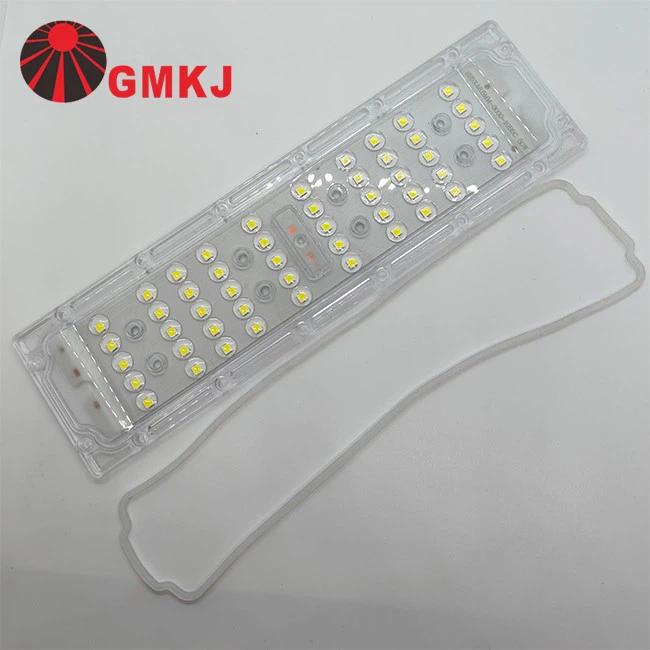

GMLEDs provide SKD parts for LED module lens including items as shown below:
1. LED lens kit with different lighting angle
2. Waterproof silicone gasket
3. Aluminum pcb boards with LED soldered
4. Aluminum heat sink, optional type
About the LED module lens LED soldered on boards, we can choose 1W 3030 smd leds with different chips brand, different brightness as your preference:
| MODEL NO. | POWER | Color | Chips specs | Input specs | ||
| GS-3030W6-SA1530-2 | 1W | White 130-140LM | Sanan 1530mil*2 chips | 3V 300MA/6V 150MA | ||
| GS-3030W6-SA1734-2 | 1W | White 140-150LM | Sanan 1734mil*2 chips | 3V 300MA/6V 150MA | ||
| GS-3030W6-SA2235-2 | 1W | White 150-160LM | Sanan 2235mil*2 chips | 3V 300MA/6V 150MA | ||
| GS-3030W6-JC2240-2 | 1W | White 160-170LM | Focus 2240mil*2 chips | 3V 300MA/6V 150MA | ||
| GS-3030W6-PR2240-2 | 1W | White 160-170LM | Sanan 2240mil*2 chips | 3V 300MA/6V 150MA | ||
| GS-3030W6-PR2240-3 | 1W | White 170-190LM/W | Sanan 2240mil*3 chips | 3V 300MA/ 1S3P | ||
| GS-3030W6-PR2240-4 | 1W | White 190-200LM/W | Sanan 2240mil*4 chips | 6V 150MA/ 2S2P | ||
| GS-3030W6-JC2240-4 | 1W | White 200-210LM/W | Focus 2240mil*4 chips | 6V 150MA/ 2S2P | ||
Application
LED module lens applications:
General Lighting: LED module lens lights are widely used for general illumination in residential, commercial, and industrial settings. They can replace traditional incandescent or fluorescent bulbs to provide energy-efficient lighting.
Architectural Lighting: LED module lens lights are used to highlight architectural features in buildings, bridges, and monuments. They can be used to create stunning lighting effects and change colors dynamically.
Street Lighting: Many cities and municipalities are replacing traditional streetlights with LED module lens lights to save energy and improve visibility on roadways.
About GMKJ LED
Guangmai Technology Co. Ltd is a well-established LED chips packaging factory with a decade of experience, having operated since 2009. They specialize in the production of various LED products, including: 3-100W COB LED: They manufacture Chip-On-Board (COB) LED modules in a wide range of wattages, offering high-performance lighting solutions.
IR/UV LED Chips: Guangmai Technology produces Infrared (IR) and Ultraviolet (UV) LED chips for specialized applications such as remote controls, security systems, and UV curing.
3535/3030/2835/5050 SMD LED: They offer Surface Mount Device (SMD) LEDs in various popular package sizes, suitable for diverse lighting and display applications.
1-3W Emitter High Power LED: These high-power LEDs are designed for applications demanding intense and focused illumination, such as flashlights, spotlights, and automotive lighting.
The company has a dedicated workforce of over 100 skilled employees, ensuring quality production. They take pride in their commitment to quality, offering a substantial 3-year warranty on their LED products. This commitment to both product quality and customer satisfaction underscores their reputation as a reliable and established player in the LED industry.
About Round glass lens kits, for more details, please write back to us GMLEDs Team directly! |
