Specification
GMKJ 200W COB LED Product Advantages:
●High Light Efficacy up to 150LM/W+
●100% Purity 1.5mil Gold Wires
●Chip Brand used: USA Bridgelux, China Taiwan Epistar,China Taiwan Epileds
●Red Copper Substrate Plate with High Heat Conductivity
●CRI70,80,90,95+
●Full Spectrum 3000K, 4000K, 5000K, 6000K Available
●3-5 Years Warranty
●IEC62778, EN62471, RoHS, LM-80 compliant
If you need more details, please contact with GMKJ sales!
|
Product Name |
High Power 200W COB LED |
Product Model |
GP-200WW6-P2345T-Z1GL |
|
Power Dissipation |
200W |
Light Color |
White Color |
|
Forward Voltage |
30-34V |
Viewing Angle |
120° |
|
Forward Current |
7.0A |
Operating Temperature |
-40~+60 ℃ |
|
Luminous Flux |
24000-30000LM |
Storage Temperature |
-40~+85 ℃ |
|
Color Temperature |
6000-6500K/3000-3200K |
Soldering Temperature |
260℃ |

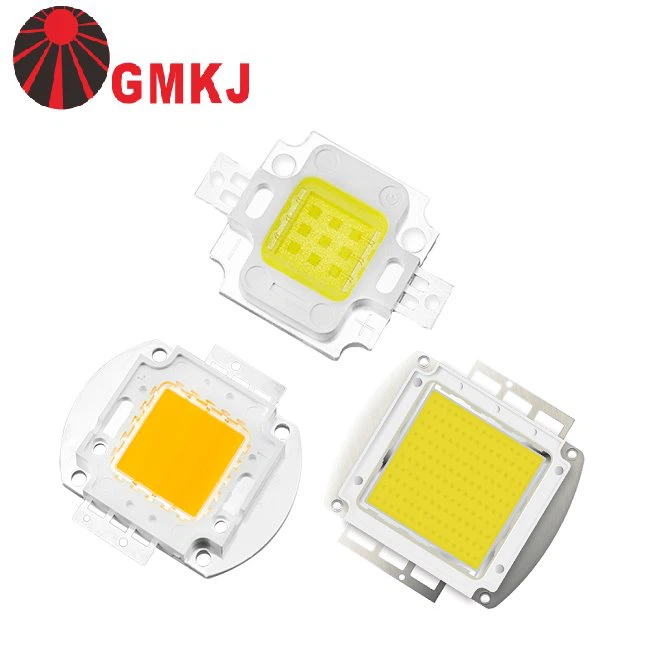

We have a large variety of 10W-300W high power LEDs available.
If you need any from below list, please contact with us!
|
10W-100W White High Power COB LED SERIES SPECIFICATION |
||||||
|
Product Name |
Light Color |
CCT/Wavelength |
Voltage |
Current |
Chip Size |
Light Efficacy |
|
10W High Power COB LED |
Gold Yellow Warm White Cool White Cold White |
2000-2700K 2900-3100K 4000-7000K 7000-9000K 10000-20000K |
14-17V 9-11V 28-34V |
350mA 700mA 1050mA |
1000-1200LM 1200-1400LM |
100-120LM/W 120-140LM/W |
|
20W High Power COB LED |
28-34V |
700mA |
2000-2400LM 2400-2800LM |
100-120LM/W 120-140LM/W |
||
|
30W High power COB LED |
28-34V |
1050mA |
3000-3600LM 3600-4200LM |
100-120LM/W 120-140LM/W |
||
|
40W High Power COB LED |
28-34V |
1400mA |
4000-4800LM 4800-5600LM |
100-120LM/W 120-140LM/W |
||
|
50W High Power COB LED |
28-34V |
1750mA |
5000-6000LM 6000-7000LM |
100-120LM/W 120-140LM/W |
||
|
60W High Power COB LED |
28-34V |
2100mA |
6000-7200LM 7200-8400LM |
100-120LM/W 120-140LM/W |
||
|
70W High Power COB LED |
28-34V |
2450mA |
7000-840LM 8400-9800LM |
100-120LM/W 120-140LM/W |
||
|
80W High Power COB LED |
28-34V |
2800mA |
8000-9600LM 9600-11200LM |
100-120LM/W 120-140LM/W |
||
|
90W High Power COB LED |
28-34V |
3150mA |
9000-10800LM 10800-12600LM |
100-120LM/W 120-140LM/W |
||
|
100W High Power COB LED |
28-34V |
3500mA |
10000-12000LM 12000-14000LM |
100-120LM/W 120-140LM/W |
||
200W COB LED application
About GMKJ
Shenzhen Guangmai Electronics Co., Ltd. established in Shenzhen of China in 2009, is a National High-Tech Enterprise focuses on high-end LED package service. GMKJ Strives to bring in high-end machines for full-automatic production and aging test equipment for making itself a leading International LED production base.
GMKJ was established in 2010 with a registered capital of 67.23 million yuan, is one of a leading semiconductor light-emitting diode enterprises in China. Our company focus on R&D and innovation continuely, now it owns more than 70 patents for inventions and utility models, the products have passed international quality certifications such as CE,RoHS,EN62471,LM-80,etc.,.

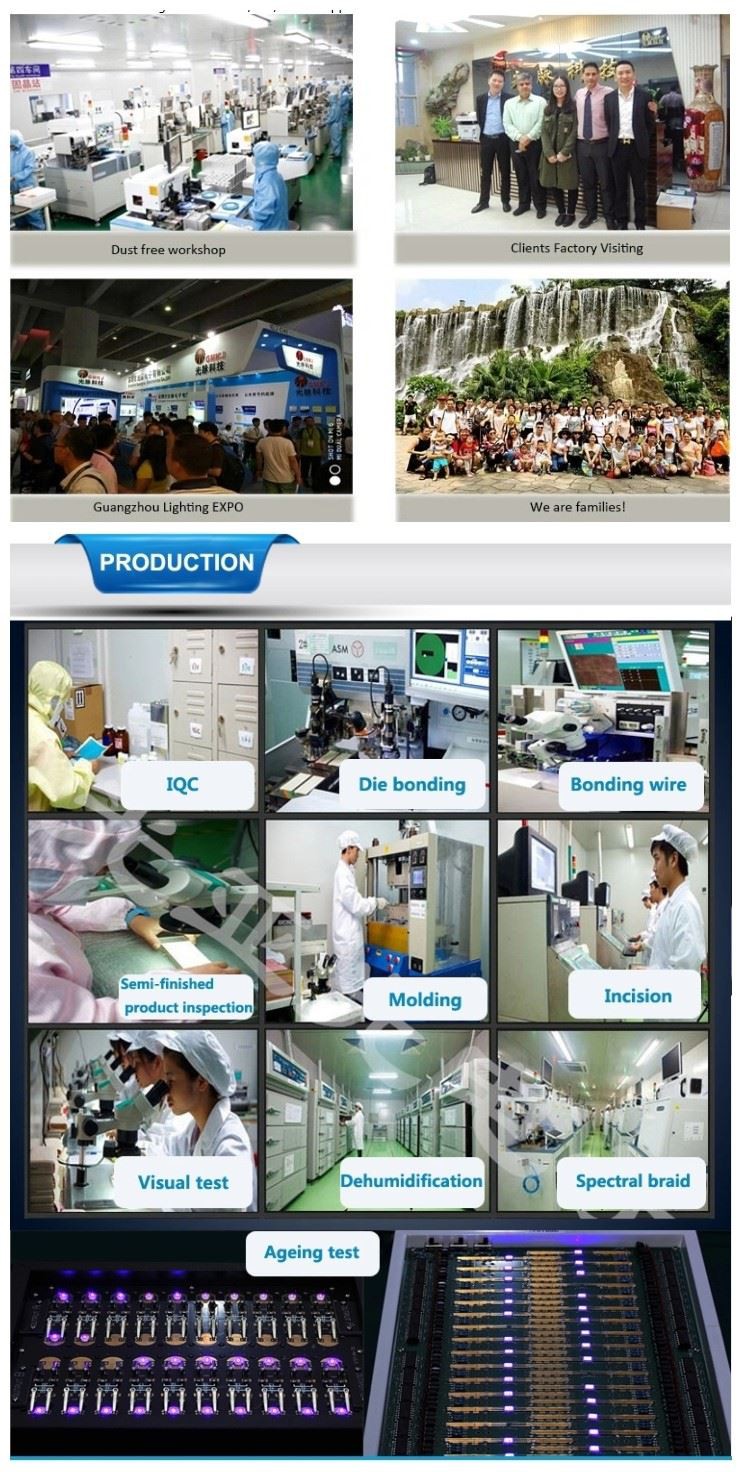

Production Ability
A. Our workshop covers an area of 50000 square meters
B. 180 advanced level fully automatic packaging lines
it was introduced the world's most advanced fully automatic production equipment (ASM, KAIJO, etc.).
C. Production Ability:
SMD 12000KK Per year
Power LED150KK per year
COB LED chip 6KK per year
D. Annual output value 4.0~4.5Billion Yuan.
OEM Overview:
OEM/ODM services are available, we can do your own Brand as well
Warranty
a: We offer 3-5 years warranty !
b: Once the product get problem within warranty, kindly please send picture or video to us, it will be helpful for us to make sure what is problem.
If the problem can be solved by replace parts, then we will send parts to you free of charge, if serious, we will send OUR engineer for asistantance.
PCBA(SMT) assemble Service.
We Offer PCBA(SMT) Services for LED Rigid strip, LED Rigid module.
Our service
RFQ
Q: Would you offer free samples?
A:Yes, We would offer free samples for P02 LED (1W high power LED, 6 pins 3W RGB LED), 3030 SMD LED, 5050 SMD LED, 3535 RGB LED,
3535 RGBW LED, etc.
Q:What payment method do you accept?
A:We accept T/T, Paypal, Western Union and others more as clients’ requirement.
Q: How can I get a quotation from you?
A:Please kindly leave us messages about your needs,including products and quantity,our professional team will reply you very soon
(mostly within few hours).
Q: If there is LED failure, how can you support?
A:Customers provide pictures of the failed products or the samples rejected, the engineer will analyze the failure and find out
the reasons. If the failure was caused by the product quality, we will compensate with qualified replacement!
