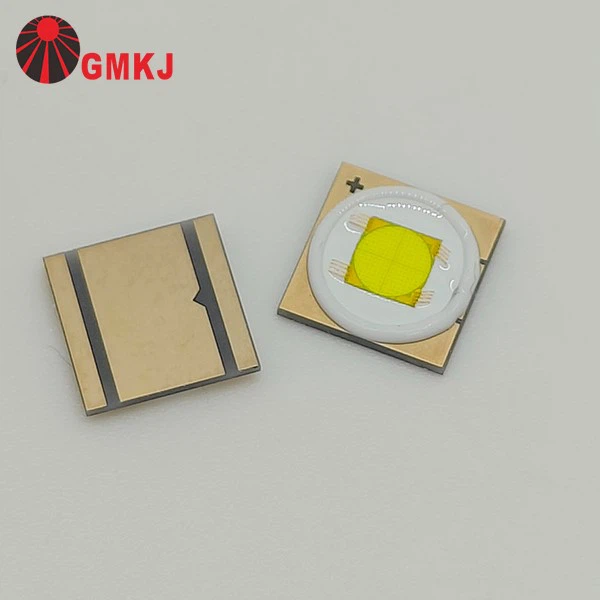

High Power 50W SMD LED for LED Flashlight Specs
| Product name | High Power 50W SMD LED for LED Flashlight |
| Part number | GD-7070W600-1CC-G3L0YP |
| Chips brand | China Sanan chips inside |
| Manufacturer brand on Label |
GMKJ LEDs Manufactured by Guangmai Technology Co., Ltd |
| Input |
6-6.8vdc with IFmax 8000mA |
| Luminous/ Radiant Flux | IF 5000mA, 2800-3200lm |
| Lighting Efficiency | IF 5000mA, around 100-120 lm/w |
| Wavelength/Color |
White 6000-8000K |
| Power |
Max 50 Watt |
| Package material |
ALN ceramic, 7.0x7.0mm size smd led, without dome lens on top |
| Lighting angle |
120 degree lighting angle, flat pkg |
| Price | Please contact with GMKJ for the Price |
| Min order quantity |
Depends on the stock availablity: If we have ready to ship stock, then even 100 pcs with samples test purpose is acceptable here. If no stock, then we need min order quantity with at least 1,000 pcs with 2 rolls package/ |
| Warranty | 4 years |
| OEM service |
1. SKD parts available; 2. Customised LED array with the size you need is OK here. |
GMKJ SMD LED full series for LED torch light picture
 |
 |
|
Part number: GD-3535WXXX-1CC0-S1E5YBP Size: 3.5x3.5mm 3535 smd led, 3vdc IFmax 3000mA Max power 10 Watt Laser alike version for LED flashlight |
Part number: GD-5050WXXX-1CC0-S1G2YBP Size: 5x5mm 5050 smd led, 3vdc IFmax 5000mA Max power 18-20 Watt Laser alike version for LED flashlight |
 |
 |
|
Part number: GD-7070W600-1CC-G3I5YB Size: 7x7mm 7070 smd led, 3vdc IFmax 13000mA Max power 40 Watt, high power version Laser alike version for LED flashlight |
Part number: GD-100110W600-1CC-G3L0YP Size: 10x11 mm 100110 smd led, 6vdc IFmax 8000mA Max power 50 Watt, high power version Laser alike version for LED flashlight |
Aluminum LED PCBA Assembled by GMKJ (PCB drawing and BOM provided by our clients)
GMKJ has our self-own SMT LED pcb board assembly line, including automatic picking and placing machine, automatic soldering paste applying machine, high temperature reflow oven.
We are able to do the LED pcb board assembly for our clients if they are able to provide us the pcb boards drawing and pcb board BOM list.
 |
 |
|
PCB soldering assembly service for LED flash light Star copper pcb boards: 20mm diameter size |
PCB soldering assembly service for LED flash light Star aluminum pcb boards: 20mm diameter size |
High Power 50W SMD LED for LED Flashlight Dimension
High Power 50W SMD LED for LED Flashlight Electrical Specs
|
Parameter |
Symbol |
Conditions |
Min |
Avg. |
Max |
Units |
|
Forward Voltage |
VF |
IF=5000mA |
5.80 |
-- |
6.80 |
V |
|
Thermal Resistance Junction To Board |
RΘJ-B |
IF=5000mA |
-- |
1 |
-- |
°C/W |
|
Luminous Flux |
Φv |
IF=5000mA |
2800 |
-- |
3200 |
lm |
|
Color Temperature |
CCT |
IF=5000mA |
6000 |
-- |
8000 |
K |
|
CRI |
Ra |
IF=5000mA |
70 |
-- |
-- |
-- |
|
Reverse Current |
IR |
VR=5V |
−− |
−− |
10 |
μ A |
|
Viewing Angle |
2Θ1/2 |
IF=5000mA |
−− |
120 |
−− |
Deg |
Lighting on effect for the LED flashlight at night (laser alike effect with narrow lighting angle reflectors)
Looking for More details
You can download the datasheet from this page for related SMD LEDs.
If you need more details like price, min order quantity, stock status and lead time, please contact with GMKJ LEDs directly!
We are always here for you!
