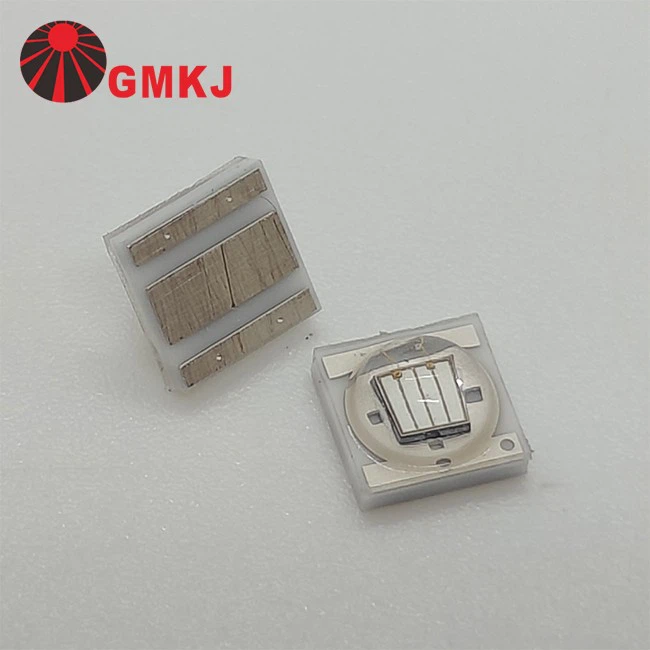

1W 3W 365nm SMD LED for Currency Detector Specs
| Product name | 1W 3W 365nm SMD LED for Currency Detector |
| Part number | GT-3535P365-1CC0-G1D5M |
| Chips brand | Taiwan Epileds chips inside |
| Manufacturer brand on Label |
GMKJ LEDs Manufactured by Guangmai Technology Co., Ltd |
| Input |
3.2-3.6vdc with IFmax 700mA |
| Luminous/ Radiant Flux | IF 700mA, Radiation power: 1000-1400mW |
| Lighting Efficiency | UVA insiable light with low or none LM/W |
| Wavelength/Color |
Peak wavelength: 365-370nm |
| Power |
Max 3 Watt |
| Package material |
ALO ceramic, 3.5x3.5mm smd led, with dome silicone lens |
| Lighting angle |
120 degree lighting angle |
| Price | Please contact with GMKJ for the Price |
| Min order quantity |
Depends on the stock availablity: If we have ready to ship stock, then even 100 pcs with samples test purpose is acceptable here. If no stock, then we need min order quantity with at least 2,000 pcs. |
| Warranty | 4 years |
| OEM service |
1. SKD parts available; 2. Customised LED array with the size you need is OK here. |
GMKJ UVA 3535 SMD LED full series picture
 |
 |
|
120 degree lighting angle Dome silicone lens UVA 365nm 3535 smd leds |
60 degree lighting angle Quartz glass lens UVA 365nm 3535 smd leds |
 |
 |
|
120 degree lighting angle, flat window Quartz glass lens UVA 365nm 3535 smd leds |
30 degree lighting angle Dome silicone lens UVA 365nm 3535 smd leds |
Aluminum LED PCBA Assembled by GMKJ (PCB drawing and BOM provided by our clients)
GMKJ has our self-own SMT LED pcb board assembly line, including automatic picking and placing machine, automatic soldering paste applying machine, high temperature reflow oven.
We are able to do the LED pcb board assembly for our clients if they are able to provide us the pcb boards drawing and pcb board BOM list.
1W 3W 365nm SMD LED for Currency Detector Dimension
1W 3W 365nm SMD LED for Currency Detector Electrical / Spectrum Distribution Specs
|
Parameter |
Symbol |
Conditions |
Min |
Avg. |
Max |
Units |
|
Forward Voltage |
VF |
IF=700mA |
3.20 |
-- |
3.80 |
V |
|
Radiant Flux |
Φe |
IF=700mA |
1000 |
1400 |
mW |
|
|
Peak wavelength |
λp |
IF=700mA |
365 |
370 |
nm |
|
|
Temperature Coefficient of Forward Voltage |
∆VF/∆T |
IF=700mA |
−− |
-2 |
−− |
mV/°C |
|
Reverse Current |
IR |
VR=5V |
−− |
−− |
10 |
μ A |
|
Viewing Angle [1] |
2Θ1/2 |
IF=700mA |
−− |
120 |
−− |
Deg |
|
Thermal Resistance Junction To Board |
RΘJ-B |
IF=700mA |
-- |
6.5 |
-- |
°C/W |
Performance of 365 nm UVA LEDs in Key Applications
What is the performance for UVA 365nm leds in Currency detector, UV skin analysis for acne detection,photocatalytic air purifier?
✅ 1. Currency Detectors
Purpose: Reveal security features (fluorescent fibers, inks) on banknotes.
Performance Characteristics:
Strong UV Output at 365 nm: Accurately excites security inks and fibers designed for true UVA excitation.
High Contrast Fluorescence: Produces clear, high-contrast visibility of anti-counterfeit features.
Low Visible Light Leakage: Minimizes eye strain and improves detection accuracy.
Reliable Long-Term Stability: Essential for continuous or repeated use in commercial and banking environments.
Key Benefit:
365 nm UVA LEDs maximize anti-counterfeit detection sensitivity and accuracy compared to longer-wavelength UV (e.g., 395 nm).
✅ 2. UV Skin Analysis (Acne Detection)
Purpose: Detect acne-related porphyrins, pigmentation, oil distribution, and structural skin features.
Performance Characteristics:
Fluorescence Excitation: 365 nm effectively excites porphyrins produced by Propionibacterium acnes, producing visible fluorescence patterns used in acne evaluation.
Contrast Visualization: Enhances visualization of sebum, pore activity, and hidden pigmentation that are otherwise invisible under normal light.
Safe UVA Band: Within UVA range that is commonly used for dermatological imaging with appropriate controls and filters.
Compatibility with Filters: Works well with Wood's lamp filters to isolate UVA fluorescence.
Key Benefit:
Provides detailed fluorescence-based skin analysis, enabling clinicians and skincare professionals to assess acne activity and related conditions with higher visual clarity.
✅ 3. Photocatalytic Air Purifiers
Purpose: Activate photocatalyst (commonly TiO₂) to decompose VOCs, bacteria, viruses, and odors.
Performance Characteristics:
Effective Photocatalyst Activation: 365 nm UV strongly activates TiO₂ catalysts, producing hydroxyl radicals and superoxide ions that break down pollutants.
Sustained UV Intensity: Stable UV output ensures continuous catalytic reaction and consistent purification performance.
Enhanced Air Quality Efficiency: Increases rates of decomposition for organic contaminants compared with longer-wavelength light sources.
Low Heat Emission: LED-based UVA sources reduce thermal load compared with traditional mercury lamps.
Key Benefit:
365 nm UVA LEDs optimize photocatalytic reactions, improving purification efficiency, reducing pollutant load, and extending catalyst life.
Looking for More details
You can download the datasheet from this page for related SMD LEDs.
If you need more details like price, min order quantity, stock status and lead time, please contact with GMKJ LEDs directly!
