265nm LED UVC 3535 for Sterilization
• Nitride Aluminum Ceramic Base
• Eutectic Bonding technology
• Wavelength from 265nm to 280nm
• Radiance Decay only 5% over 1000hrs working.
• True Radiance Power from 2mw to 4mw
• More energy efficient than254nm mercury lamps
• Low Voltage DC operated
• Instant light(less than 100ms)
Product Features
Application:
Disinfection, Phototherapy, Fluorescent Spectroscopy, Sensor Light,
Bio-Analysis / Detection, Counterfeit Detectors, etc
Chip Brand: LG or Michia
Base Material: High Thermal conductivity Aluminum Nitride Base
Wire Brand: Germany Heraeus Gold wire.
Radiant Power: 2-4mw or 5-8mw
Forward Current: 40mA or 100mA
Forward Voltage: 5-7v
Dimension: 3.5x3.5 x1.35mm
View angle: 120 degree
Working Temperature: -30ºC -- + 60ºC
Certificates : LM-80. CE. Rohs,Fcc .
Loading time: 5 workdays for qty<10.000pcs / 12 workdays for qty <50.000pcs
Payment Terms: 50% TT Before Production. Balance before Delivery .
Product Dimension
Product Specification
Absolute Maximum Ratings(At TA =25℃)
Parameter | Symbol | Rating | Unit |
DC Forward Current | IF | 60 | m A |
Peak pulse Current* | IFP | 80 | m A |
Power Dissipation | PD | 1 | W |
Operating Temperature Range | TOPR | -30 ~ +75 | °C |
Storage Temperature Range | TSTG | -40 ~ +85 | °C |
Electrical/Optical Characteristics--White (At TA=25°C)
Parameter | Symbol | Conditions | Min | Avg. | Max | Units |
Forward Voltage | VF | IF=60mA | 5.00 | -- | 8.00 | V |
Thermal Resistance Junction To Board | RΘJ-B | IF=60mA | -- | 8 | -- | °C/W |
Radiant Flux | Φe | IF=60mA | 2 | 4 | mW | |
Peak wavelength | λp | IF=60mA | 265 | 285 | nm | |
Temperature Coefficient of Forward Voltage | ∆VF/∆T | IF=60mA | −− | -2 | −− | mV/°C |
Reverse Current | IR | VR=5V | −− | −− | 10 | μ A |
Viewing Angle [1] | 2Θ1/2 | IF=60mA | −− | 100 | −− | Deg |

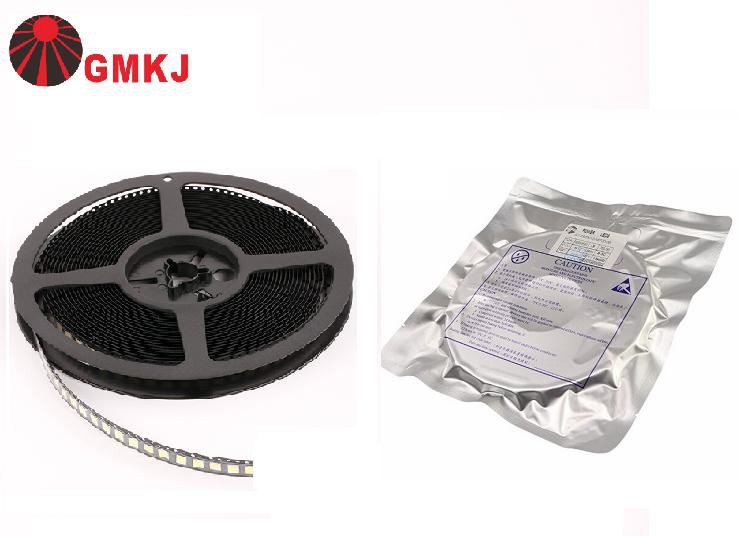

Normal packing Quantity: 1000pcs/reel in vacuum bag.
Shipping Method
Delivery time:
●Order Qty<500.000pcs, 3-7 workdays.
●Order Qty>500.000pcs, 7-12 workdays.
●Order Qty>2000.000pcs,12-20 workdays.
Delivery by DHL/FEDEX EXPRESS
Q&A
Several questions about UVC LED disinfection and UVC wavelength
What is the "sterilizing range" of UV?
According to the International Ultraviolet Association, "the ultraviolet spectrum (the 'sterilization' region) that is important for water and air disinfection is the range absorbed by DNA (RNA in some viruses). This sterilization range is about 200-300nm."
It is known that the bactericidal range extends above 280 nm, and it is now generally considered to extend to 300 nm, however this may also change with more research. Scientists have shown that ultraviolet light with a wavelength between 280nm and 300nm can be used for disinfection and sterilization.
What is the optimal wavelength for disinfection?
There is a misunderstanding that 254nm is the optimal wavelength for disinfection because the peak wavelength of a low-pressure mercury lamp (determined solely by the physics of the lamp) is 253.7nm. The wavelength of 265 nm is generally considered to be optimal because this wavelength is the peak of the DNA absorption curve. However, a range of wavelengths have disinfection and sterilization effects.
Ultraviolet mercury lamps were once considered the best choice for disinfection and sterilization. Why is this?
Historically, mercury lamps have been the only option for disinfection and sterilization. With the advancement of UV LED technology, there are new options because LEDs are smaller, more powerful, non-toxic, longer life, more energy efficient, and allow more switching times. This makes the solution smaller, battery-powered, more portable, and capable of instant full-light output.
