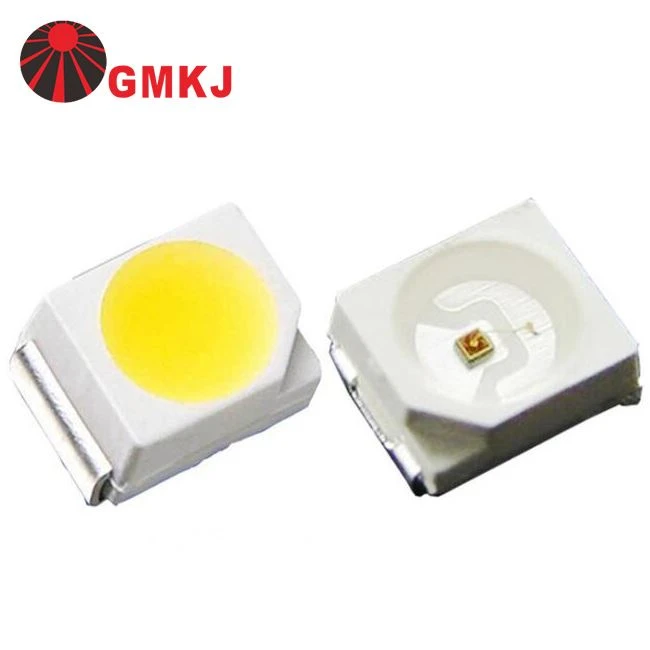

Guangmai Technology is professional in making the 3528 SMD LED White Red Blue Green Color Chip 20mA.
Guangmai Technology 3528 products:
White color 3000K/4000K/5000K/6000K. Brightness 6-7lm, 7-8lm and 8-9lm

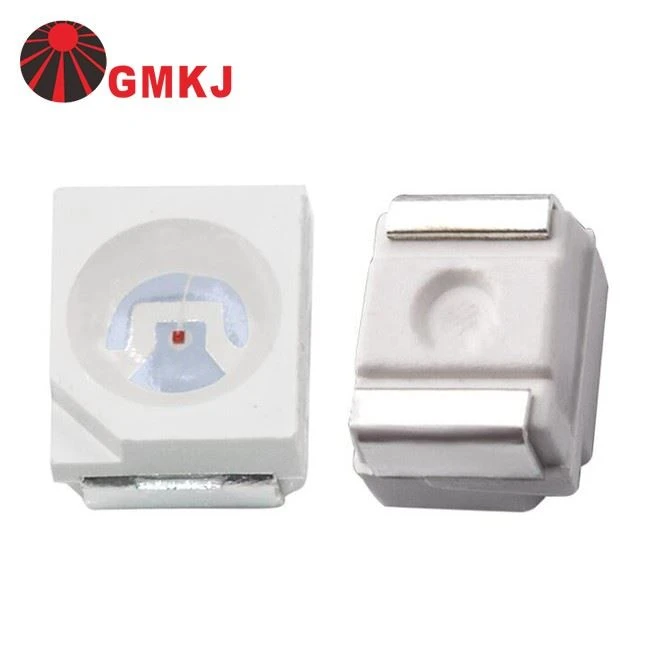

Red 620-630nm
Green 520-530nm
Blue 460-470nm
Green 520-530nm
Input 20mA 0.06W current constant
3528 patch is mainly used in: indoor lighting, commercial lighting, industrial lighting. Such as LED lighting products, LED decoration products, LED backlight products, lighting lighting, backlight display (LCD, billboards), car lights, etc.
Low light decay: After the LED is working, 20mA is normally continuously lit, the brightness will gradually increase to about 1500 hours, and the brightness will increase by 12%; 10000 hours, the light decay will be less than 25%.
The maximum current that can pass through the patch is 500mA, which can only be instantaneous, and the time does not exceed 2 seconds. Normal 15mA, 20mA lighting does not affect the light decay
SMD LED has undergone strict light splitting and color separation, with uniform brightness
High brightness, concentrated color zone, large angle, low thermal resistance, ultra-low light decay technology, ultra-long life

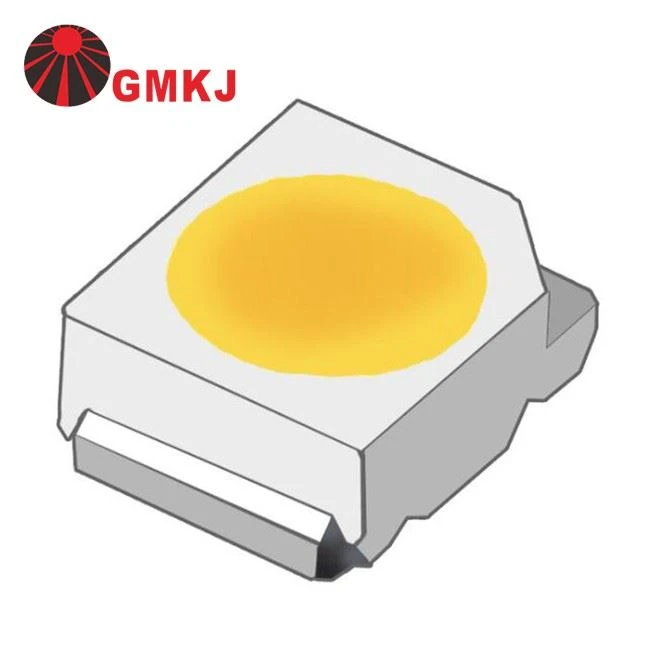

Package Size:
Application
About Guangmai
Shenzhen Guangmai Technology Co., Ltd. is a green and environmentally friendly high-tech enterprise and group company integrating scientific research, development, production and sales;
Mainly produce and sell high-efficiency, high-quality 2835, 5730, 3030 lamp beads, 0603, 0805, two-color, RGB, Chip series products; with years of experience in LED packaging, the luminous efficiency, color rendering and stability of LED light sources are improved And other technical problems, breakthrough achievements have been made.
The company has advanced production equipment such as KS from Japan, ASM from the United States, KAJJO from Japan, MUSASHI from Japan, and Weikong from Taiwan, etc., and it aging and testing a series of high and low temperature, vibration and impact tests to ensure the quality of the products. After continuous progress and innovation, we provide LED lighting products with low attenuation and high luminous efficiency LED components, and provide LED lighting manufacturers with more competitive products.
Our company's research and development goals have been around:
*Improve the BIN rate of SMD LEDs and reduce costs.
*Improve the brightness of SMD LED to reach the international level of light efficiency.
*Continuously improve the light attenuation ability of SMD LEDs and increase the retention rate of SMD LEDs.
Quality is the life of an enterprise, and efficiency is the cost of an enterprise.

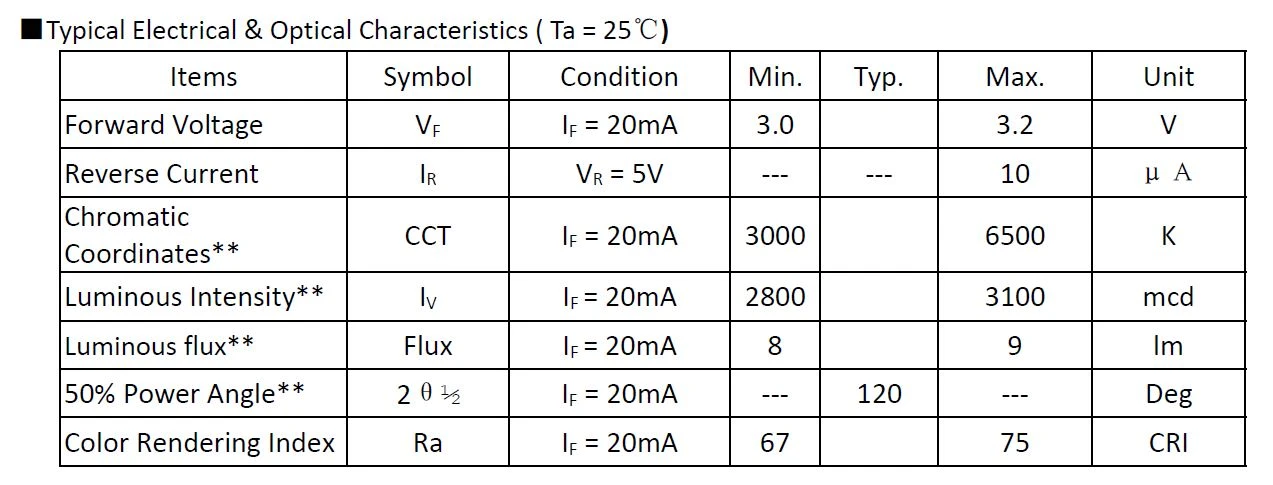

Datasheet:
For more details, please feel free to contact with Guangmai Tech directly.
You can download the datasheet of 3528 SMD LED White Red Blue Green Color Chip 20mA from the head of this page.
