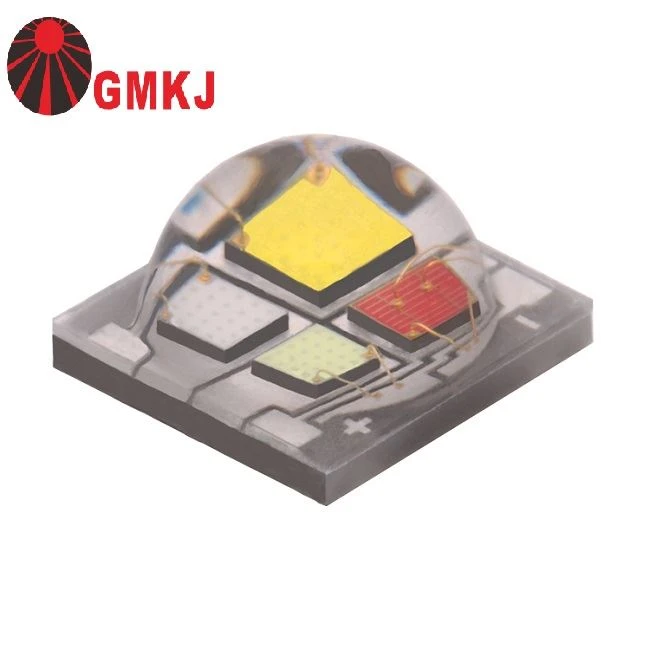

5050 RGBW SMD LED is new and hot sale products of GMKJ LED now.
This diode tape is multicolor, has many shades of color, four crystals (red, green, blue, white) RGBW are placed in one LED, 3 or 4 colors are mixed with the help of controllers, as a result, you can get any shade.
It could be made into RGBW LED strip to work, a controller is required with which you can change the color of the strip glow.
We use ceramic package for better heat dissipation. And its max power can reach 12 watt. Each color reach 700mA 3 Watt.
About the white chips inside, we can do with 3000K, 4000k and 6000K customised.
The advantages of Chip-on-Board LED arrays include:
• Famous chip material, Epileds or San'an
• 99.99% Gold Connection
• Full color spot, good color consistency
• R, G, B, W four colors in one package
• High flux per LED
• Low temperature and lead free reflow soldering
• More energy efficient than incandescent bulbs and most halogen bulbs
• Low DC voltage
• Instant light (less than 100 ns)
• Lack of UV radiation
Product Specification
Typical Electrical & Optical Characteristics ( Ta = 25°C)
Package Dimension
Packing Method
Vacuum reel package with 1000 pcs per reel.
Company Introduction
Shenzhen Guangmai Electronics Co., Ltd. established in Shenzhen of China in 2009, is a National High-Tech Enterprise focuses on high-end LED package service. GMKJ Strives to bring in high-end machines for full-automatic production and aging test equipment for making itself a leading International LED production base.
We mainly produce COB LED 2-400W, Power LEDs 1-100W, SMD LEDs, Color LEDs 275-940nm etc, which are widely applied to general lighting, horticulture, studio lighting, landscape & architectural lighting and stage lighting.
Application
• Portable (flashlight, bike)
• Lifters / down lighters
• Decorative / entertainment (stage light)
• Bollards / Security / Garden
• Indoor / Outdoor commercial and residential architectural
• Automotive Ext (stop-tail-turn, CHMSL, lamp width)
SMD LED Using Manual
Thank you for using the SMD LED series of Shenzhen Guangmai Technology Co., Ltd., in order to enhance your understanding of the characteristics of our company's products, so that you can grasp the characteristics of the use during use, and minimize or avoid the problem caused by human factors. The necessary product is damaged or the performance does not match. Here is an explanation.
Static electricity
• Static electricity or overvoltage will damage the high power LED. It is recommended to use a wrist or anti-static glove when transmitting LEDs.
• The soldering iron tip must be grounded, the ionizer must also be installed where there is a risk of static.
• All devices, equipment and equipment must be properly grounded, it is recommended to take measures against overvoltage to the equipment that mounts the high power LED.
Heat production
• When illuminating LEDs, the operating current must be determined after taking into account the maximum ambient temperature.
• Please consider the thermal production of LEDs when it is designed by PCB.
• LEDs must be installed on the metal core of the PCB or heat sink or applied thermal pad.
Led indicator
GMKJ LED recommends the following at all times when transmitting LEDs or assemblies containing these LEDs:
• When transmitting the LED using tools such as tweezers or Nipper, do not apply mechanical force directly to the surface of the LED.
• Do not touch the lens surface by hand. It can contaminate the lens surface and affect the optical performance.
• The LED must be treated from the side, because the molding material of the LED can be damaged by surface scratches, piercing molding material, and brogues.
(The picture below is for reference only)
Caution: Electrostatic Discharge (ESD) Protection
The above symbol represents "Electro-Optical Characteristics". ESD protection for chip-based AIGaInP and InGaN is still required, even though they are safe for low static discharge. The material in the AIGaInP and InGaN based chips are static sensitive devices. ESD protection should be considered and adopted at the initial design stage. If manual work is required, make sure the device is well protected against ESD during the entire process.
Datasheet:
5050 RGBW SMD LED 4 in 1 12W 700mA datasheet can be download from this page.
