Product Introduction:

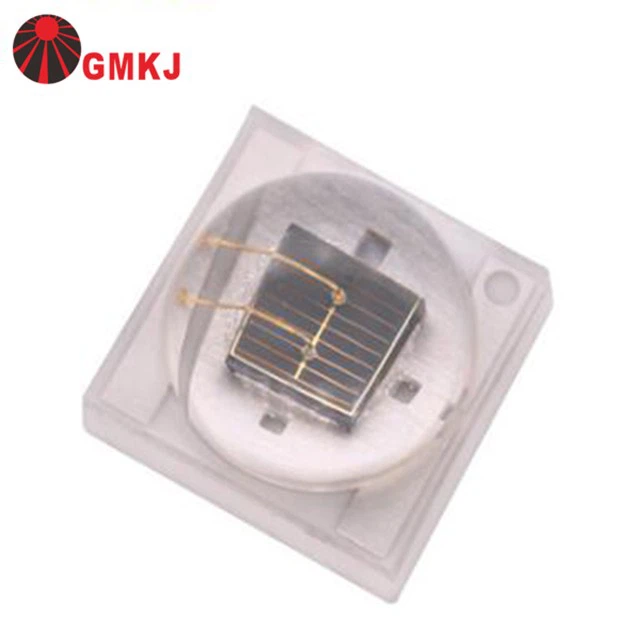

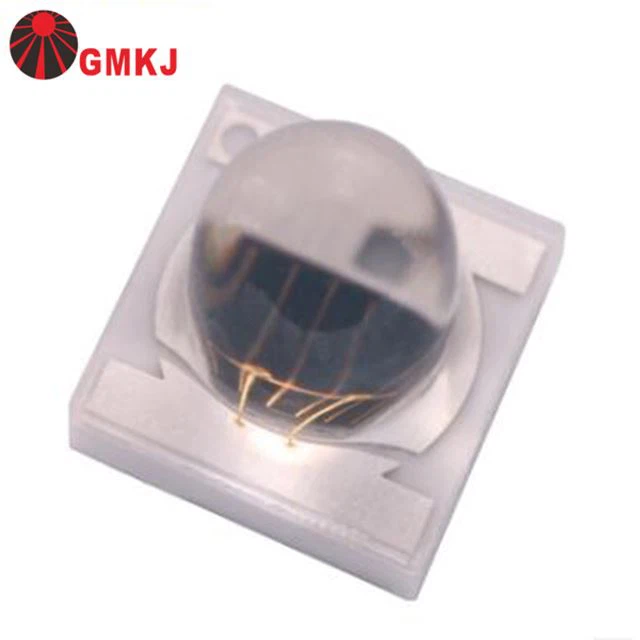

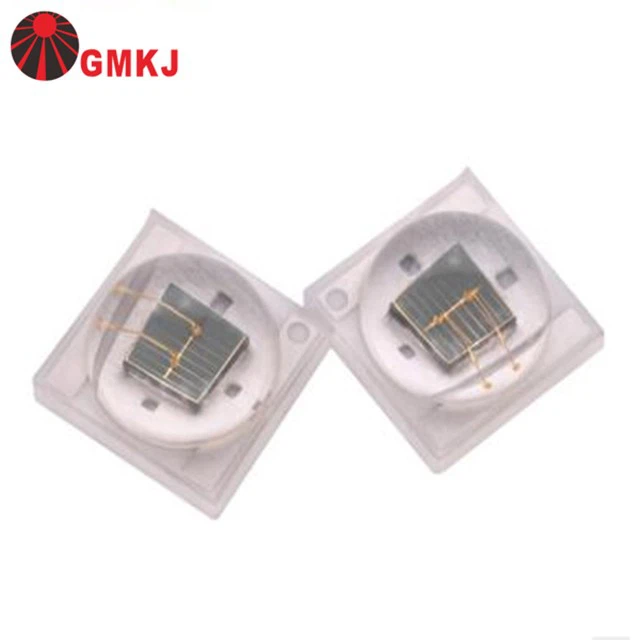

30 60 90 degree infrared 850nm 3535 SMD LED 1W 3W is using sharp shape silicone lens to reach narrow lighting angle, such as 30, 60 and 90 degree.
Those narrow lighting angle can make the IR infrared light reach longer distance.
It is mainly used for those security night version cameras.
GMKJ LED makes 30 degree, 60 degree and 90 degree 3535 smd leds available with infrared wavelength 730-740nm, 840-850nm, 940-950nm, 1050-1055nm, 1300-1350nm.

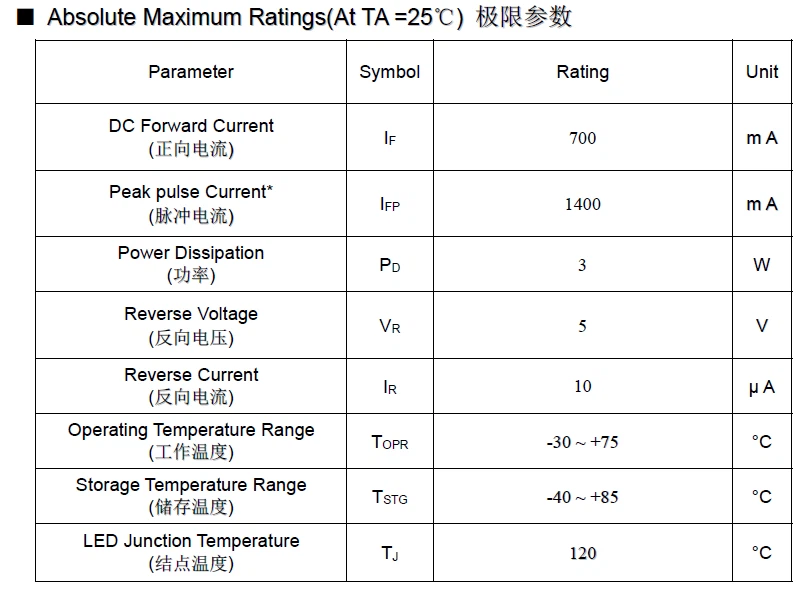

| Product name | 30 60 90 degree infrared 850nm 3535 SMD LED 1W 3W |
| LED base material | 3535 ceramic Al2O3 base |
| Chips brand | Taiwan Epileds 42mil |
| Power | 1W 350mA / 3W 700mA |
| Wavelength | 730-740nm, 840-850nm, 940-950nm, 1050nm and 1350nm |
| Lighting angle | 30 degree, 60 degree, 90 degree, 120 degree selectable |
| Emitting power | 400-600mW emission power with 3W 700mA |
| Input | 1.8-2.2vdc 700mA |
| Warranty | 5 years |
| LED manufacturer | Guangmai Technology (GMKJ LED) |

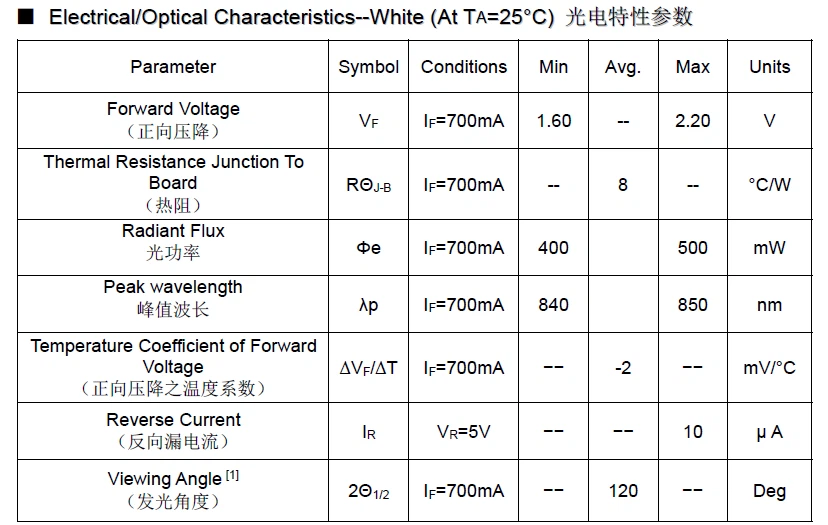

30 60 90 degree infrared 850nm 3535 SMD LED 1W 3W Tecnical specs:
Compared with 120 degree, 30 degree, 60 degree and 90 degree lighting angle 3535 smd led IR wavelength has a sharp and tall silicone LED lens.
This LED lens helps the light distribute with more narrow lighting angle. And it makes those light shoot much more further in longer distance.
By using this, IR cameras can see more clearly in the night with longer eagle-like eyes.
And this special design helps the IR camera saves more space about the LED pcb boards design. Because it does not need the second lens any more.
As far as we know, the LED second lens is very big.
Application:

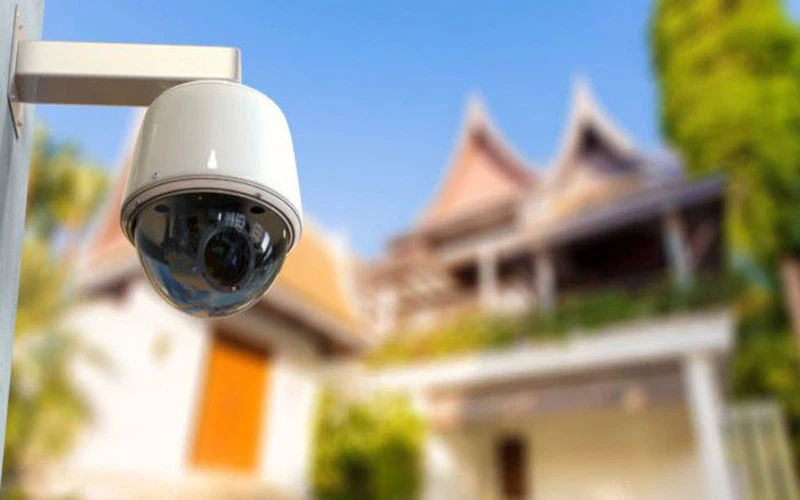

30 60 90 degree infrared 850nm 3535 SMD LED 1W 3W is mainly used for IR security camera. Some clients are using it for red threapy light for cure those disease. It helps people get more healthy faster.
And it is widely used for beauty device for the face too. It will make our face looks younger and get older slower.
