Dual Yellow 590nm IR 850nm 3535 SMD LED For Skin Whitening

Dual Yellow 590nm IR 850nm 3535 SMD LED for Skin Whitening Specs:

Product name	Dual Yellow 590nm IR 850nm 3535 SMD LED for Skin Whitening
Part number	GT-3535YR85-2BC0-S2C6M
Chips brand	Yellow 590nm China S1C8 38mil chips; IR 850nm China S2C6 36mil chips;
Input	Yellow 590-595nm: 2.2-2.6vdc; IR  850-855nm:  1.4-1.8vdc; Max 700mA forward current for each color;
Flux	Yellow: 90-110lm at 700mA; IR: 600-800mW at 700mA
Lighting Efficiency	IR 850nm is not invisible light. So we do not mention about LPW here.
Color	Yellow 590-595nm;  IR 850-855nm;
Power	Max around 3 watt x 2 colors at 700mA forward current loaded
Package material	Ceramic substrated with the most advanced technology package; It is the similar package like XPE,XTE;
Lighting angle	120 degree with dome silicone lens on top; Max reflow temperatuare< 240C
Brand and manufacturer	GMLEDs, GMKJ
Warranty	4 years
OEM service	1. SKD parts available; 2. Aluminum pcb boards LED assembly service is also available here.

Why we need to use yellow 590nm and IR 850nm for the skin whitening lamp?

The use of yellow 590nm and infrared (IR) 850nm wavelengths in skin whitening lamps is based on their specific biological effects on the skin. Here's why these wavelengths are chosen:

---

1. Yellow Light (590nm):

Targets Pigmentation: Yellow light penetrates the skin and helps break down melanin clusters, which are responsible for dark spots and uneven skin tone. This leads to a brighter and more even complexion.

Anti-Inflammatory Properties: Yellow light soothes the skin, reduces redness, and calms irritation, making it ideal for sensitive or acne-prone skin.

Stimulates Collagen Production: It promotes collagen synthesis, which improves skin elasticity and texture, contributing to a youthful appearance.

Safe for Most Skin Types: Yellow light is gentle and non-invasive, making it suitable for regular use.

---

2. Infrared Light (850nm):

Deep Penetration: Infrared light reaches deeper layers of the skin, stimulating cellular activity and improving blood circulation. This helps in skin rejuvenation and detoxification.

Enhances Healing: IR light accelerates the repair of damaged skin cells and tissues, which is beneficial for post-inflammatory hyperpigmentation or acne scars.

Boosts Metabolism: It increases the metabolic rate of skin cells, promoting the removal of toxins and dead skin cells, which contributes to a clearer and brighter complexion.

Synergistic Effect: When combined with yellow light, IR light enhances the overall effectiveness of the treatment by addressing both surface and deeper skin issues.

---

Why Combine Yellow 590nm and IR 850nm?

Comprehensive Treatment: Yellow light targets surface pigmentation and inflammation, while IR light works on deeper skin layers to promote healing and regeneration. Together, they provide a more holistic approach to skin whitening and rejuvenation.

Faster Results: The combination of these wavelengths accelerates the skin whitening process and improves overall skin health.

Suitable for Various Skin Concerns: This combination is effective for treating hyperpigmentation, acne scars, dullness, and uneven skin tone.

---

In summary, yellow 590nm and IR 850nm are used in skin whitening lamps because they complement each other to address both superficial and deep skin issues, leading to brighter, healthier, and more even-toned skin.

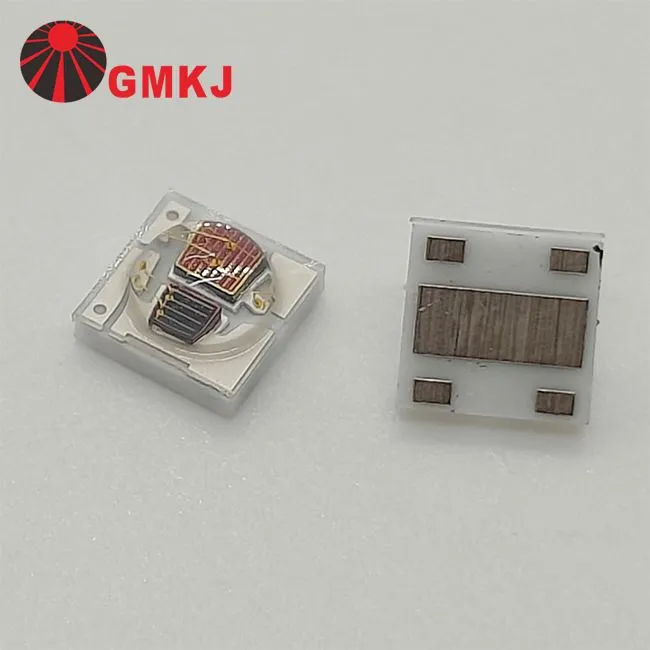

Dual Yellow 590nm IR 850nm 3535 SMD LED for Skin Whitening Picture:



Dual Yellow 590nm IR 850nm 3535 SMD LED for Skin Whitening dimensions:



Dual Yellow 590nm IR 850nm 3535 SMD LED for Skin Whitening specs:

■ Electrical/Optical Characteristics--White (At TA=25°C)

Parameter	Symbol	Conditions	Color	Min	Avg.	Max	Units
Forward Voltage	VF	IF=700mA	Y	2.20	--	2.60	V
			R8	1.50	--	1.90
Luminous Flux	Φv	IF=700mA	Y	90	--	110	lm
Radiant Flux	Φe	IF=700mA	R8	600	--	800	mW
Dominant wavelength	λd	IF=700mA	Y	590	--	595	nm
Peak wavelength	λp	IF=700mA	R8	845	--	855	nm
Reverse Current	IR	VR=5V	Y/R8	−−	−−	10	μ A
Viewing Angle	2Θ1/2	IF=700mA	Y/R8	−−	120	−−	Deg
Thermal Resistance Junction To Board	RΘJ-B	IF=700mA	Y/R8	--	6.5	--	°C/W
