Products Description
5050 RGB RGBW SMD LED with flat glass lens specs shown as below:
| Product name | 5050 RGB RGBW SMD LED with flat glass lens |
| Chips brand |
China Sanan 30mil chips |
| Input |
RGB 3in1 color: 3*3W, each color 700mA RGBW 4in1 color: 4*3W, each color 700mA |
| Brightness |
Red color: 100-130lm with 3W 700mA Green color: 200-250lm with 3W 700mA Blue color: 45-60lm with 3W 700mA White color: 180-220lm with 3W 700mA |
| Color |
2700K, 3000K, 4000K, 5000K and 6500K are OK for the White color LED Red color wavelength: 620-630nm Green color Wavelength: 520-530nm Blue color wavelength: 460-465nm |
| CRI |
Ra>70, Ra>80 optional |
| Board material |
ALN ceramic package |
| Lighting angle | 120 degree flat quartz glass lens |
| Brand and manufacturer | GMLEDs, GMKJ |
| Warranty | 4 years |
5050 RGB RGBW SMD LED with flat glass lens size:
| 5050 RGB SMD LED with flat glass lens | 5050 RGBW SMD LED with flat glass lens |
 |
 |

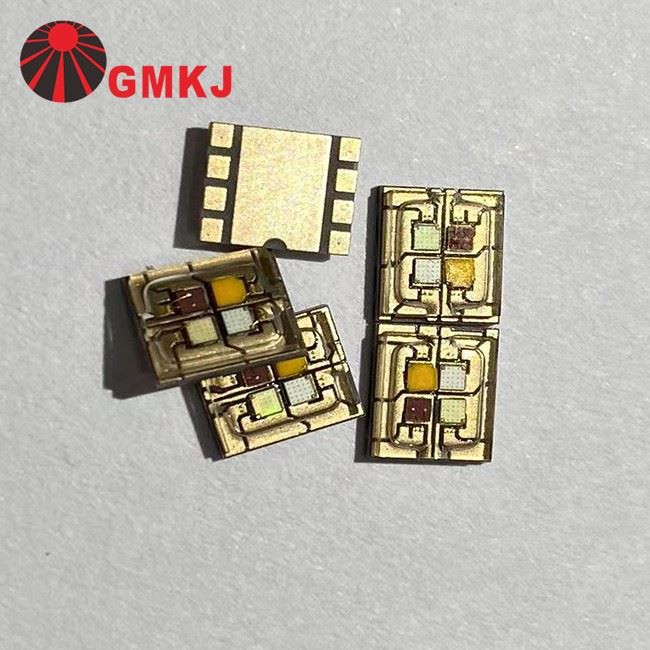

5050 RGB RGBW SMD LED with flat glass lens picture:
5050 RGB SMD LED with flat glass lens technical specs:
■ Electrical/Optical Characteristics--White (At TA=25°C)
|
Parameter |
Symbol |
Conditions |
Emitting Color |
Values |
Units |
||
|
|
|
|
|
Min |
Avg. |
Max |
|
|
Forward Voltage |
VF |
IF=700mA |
R |
1.80 |
-- |
2.40 |
V
|
|
|
|
|
G |
2.80 |
-- |
3.40 |
|
|
|
|
|
B |
2.80 |
-- |
3.40 |
|
|
Luminous Flux |
Φv |
IF=700mA |
R |
140 |
-- |
160 |
lm |
|
|
|
|
G |
180 |
-- |
220 |
|
|
|
|
|
B |
40 |
-- |
60 |
|
|
Dominant wavelength |
λd |
IF=700mA |
R |
620 |
-- |
630 |
nm |
|
|
|
|
G |
520 |
-- |
530 |
|
|
|
|
|
B |
450 |
-- |
460 |
|
|
Temperature Coefficient of Forward Voltage |
∆VF/∆T |
IF=700mA |
−− |
−− |
-2 |
−− |
mV/°C |
|
Reverse Current |
IR |
VR=5V |
−− |
−− |
−− |
10 |
μ A |
|
Viewing Angle |
2Θ1/2 |
IF=700mA |
−− |
−− |
120 |
−− |
Deg |
|
Thermal Resistance Junction To Board |
RΘJ-B |
IF=700mA |
−− |
-- |
5 |
-- |
°C/W |
5050 RGBW SMD LED with flat glass lens technical specs:
|
Parameter |
Symbol |
Conditions |
Emitting Color |
Values |
Units |
||
|
|
|
|
|
Min |
Avg. |
Max |
|
|
Forward Voltage |
VF |
IF=700mA |
R |
1.80 |
-- |
2.40 |
V
|
|
|
|
|
G |
2.80 |
-- |
3.40 |
|
|
|
|
|
B |
2.80 |
-- |
3.40 |
|
|
|
|
|
W |
2.80 |
-- |
3.40 |
|
|
Luminous Flux |
Φv |
IF=700mA |
R |
140 |
-- |
160 |
lm |
|
|
|
|
G |
180 |
-- |
220 |
|
|
|
|
|
B |
40 |
-- |
60 |
|
|
|
|
|
W |
180 |
-- |
220 |
|
|
Dominant wavelength |
λd |
IF=700mA |
R |
620 |
-- |
630 |
nm |
|
|
|
|
G |
520 |
-- |
530 |
|
|
|
|
|
B |
450 |
-- |
460 |
|
|
Color Temperature |
CCT |
IF=700mA |
W |
2800 |
-- |
3200 |
K |
|
CRI |
Ra |
IF=700mA |
W |
70 |
-- |
-- |
|
|
Temperature Coefficient of Forward Voltage |
∆VF/∆T |
IF=700mA |
−− |
−− |
-2 |
−− |
mV/°C |
|
Reverse Current |
IR |
VR=5V |
−− |
−− |
−− |
10 |
μ A |
|
Viewing Angle |
2Θ1/2 |
IF=700mA |
−− |
−− |
120 |
−− |
Deg |
|
Thermal Resistance Junction To Board |
RΘJ-B |
IF=700mA |
−− |
-- |
5 |
-- |
°C/W |
Application
5050 RGB SMD LED with flat glass lens is mainly used for LED wall washer lights, LED flood light, LED landscape light, LED fountain light, drone LED lights for special performance and so on.
About GMKJ LEDGMKJ is an ISO Certificated manufacturer of high quality, high reliability LED diodes, formed in January of 2009. Our staff has over 10 years of experience with excellent English. All of our employees have a strong work ethic and a strong commitment to provide the high quality products that consistently meet or exceed our customer's requirements.
