Multicolor 12W RYBW 5050 SMD LED Chip Specs:
| Product name | Multicolor 12W RYBW 5050 SMD LED Chip |
| Part number | GD-5050RYBW6-4BC0-SA38M |
| Chips brand |
China Sanan 38mil vertical chip and Taiwan Epistar 42mil red color chip, Good lighting effect with seconardy led lens |
| Input |
Red and ambe color with 2-2.4vdc; Blue and white with 2.8-3.2vdc; Each color max 700mA |
| Flux |
Red and amber color: 100-120lm; Blue: 40-60lm; White: 180-220lm |
| Warranty | 4 years long time fully guaranteed |
| Color |
Red: 620-630nm; Ambe: 590-595nm; Blue: 455-465nm; Whiite available with: 1. 3000K Ra>80, 2. 4000K Ra>80 3. And 6500K Ra>70 |
| Power |
4*3W Watt |
| Ceramic package material |
Ceramic package; Both dome silicone lens and flat package 5050 smd leds are available. |
| Lighting angle |
120 degree dome silicone lens or 120 degree flat package without lens |
| Brand and manufacturer | GMLEDs, GMKJ |
| Warranty | 3 years |
| OEM service |
1. SKD parts available; 2. Aluminum pcb boards LED assembly service is also available here. |

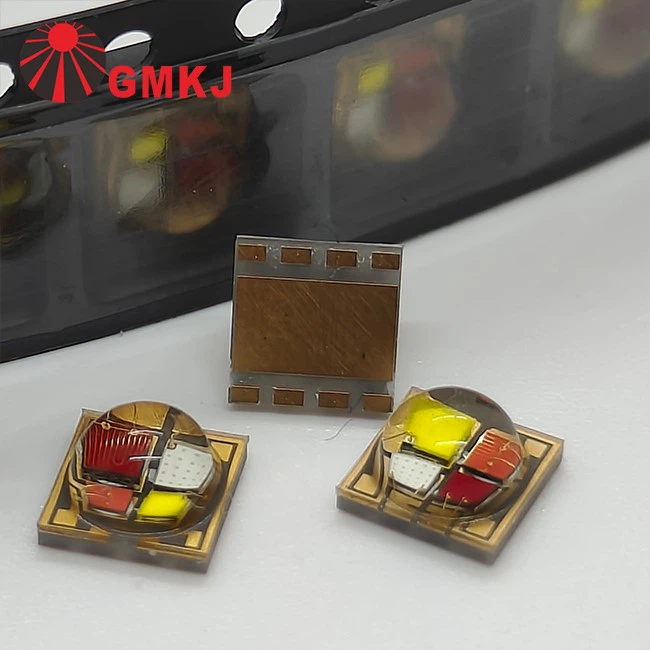

Multicolor 12W RYBW 5050 SMD LED Chip picture:
Multicolor 12W RYBW 5050 SMD LED Chip star pcb boards soldering service:
Multicolor 12W RYBW 5050 SMD LED Chip dimensions:
Multicolor 12W RYBW 5050 SMD LED Chip Eletrical specs:
■ Absolute Maximum Ratings(At TA =25℃)
|
Parameter |
Symbol |
Rating |
Unit |
|||
|
R |
G |
B |
W |
|||
|
DC Forward Current |
IF |
700 |
700 |
700 |
700 |
m A |
|
Peak pulse Current |
IFP |
1000 |
1000 |
1000 |
1000 |
m A |
|
Power Dissipation |
PD |
3 |
3 |
3 |
3 |
W |
|
Reverse Voltage |
VR |
5 |
5 |
5 |
5 |
V |
|
Reverse Current |
IR |
10 |
10 |
10 |
10 |
μ A |
|
Operating Temperature Range |
TOPR |
-40 ~ +85 |
-40 ~ +85 |
-40 ~ +85 |
-40 ~ +85 |
°C |
|
Storage Temperature Range |
TSTG |
-40 ~ +100 |
-40 ~ +100 |
-40 ~ +100 |
-40 ~ +100 |
°C |
|
LED Junction Temperature |
TJ |
120 |
120 |
120 |
120 |
°C |
■ Electrical/Optical Characteristics- (At TA=25°C)
|
Parameter |
Symbol |
Conditions |
Emitting Color |
Values |
Units |
||
|
Min |
Avg. |
Max |
|||||
|
Forward Voltage |
VF |
IF=700mA |
R |
2.20 |
-- |
2.60 |
V |
|
Y |
2.20 |
-- |
2.60 |
||||
|
B |
3.00 |
-- |
3.40 |
||||
|
W |
3.00 |
-- |
3.40 |
||||
|
Luminous Flux |
Φv |
IF=700mA |
R |
100 |
-- |
120 |
lm |
|
Y |
100 |
-- |
120 |
||||
|
B |
40 |
-- |
60 |
||||
|
W |
200 |
-- |
220 |
||||
|
Dominant wavelength |
λd |
IF=700mA |
R |
620 |
-- |
630 |
nm |
|
Y |
585 |
-- |
595 |
||||
|
B |
455 |
-- |
465 |
||||
|
Color Temperature |
CCT |
IF=700mA |
W |
6000 |
-- |
7000 |
K |
|
CRI |
Ra |
IF=700mA |
W |
70 |
-- |
-- |
|
|
Reverse Current |
IR |
VR=5V |
−− |
−− |
−− |
10 |
μ A |
|
Viewing Angle |
2Θ1/2 |
IF=700mA |
−− |
−− |
120 |
−− |
Deg |
|
Thermal Resistance Junction To Board |
RΘJ-B |
IF=700mA |
−− |
-- |
5 |
-- |
°C/W |
Application
Multicolor 12W RYBW 5050 SMD LED Chip applications
Multicolor 12W RYBW 5050 SMD LED Chip is mainly used for LED Wall washer lights, LED fountain lights and LED RGB underwater lights and other applications.
