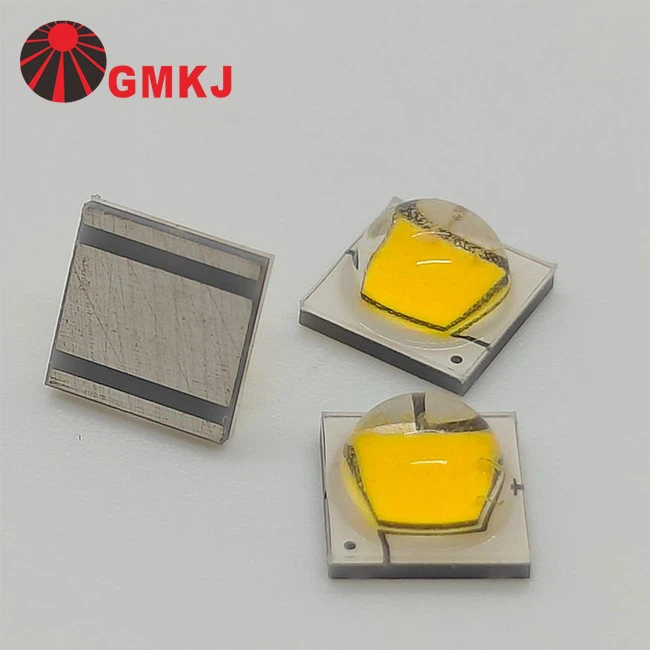

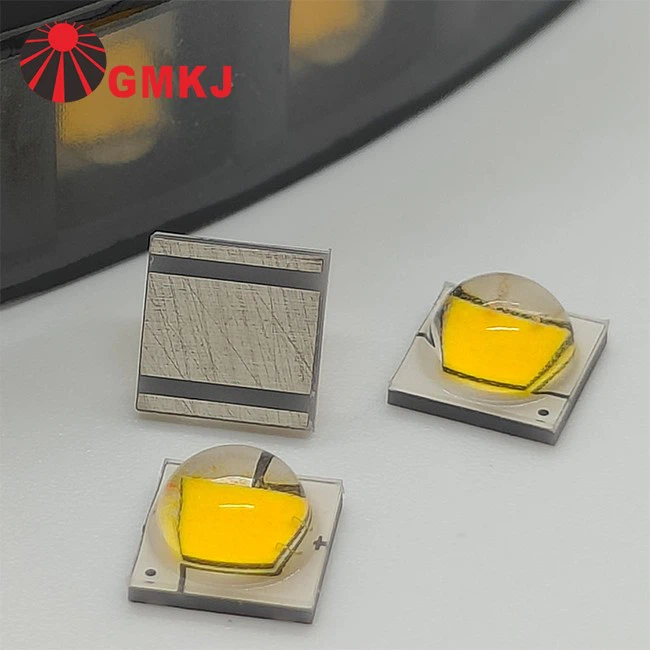

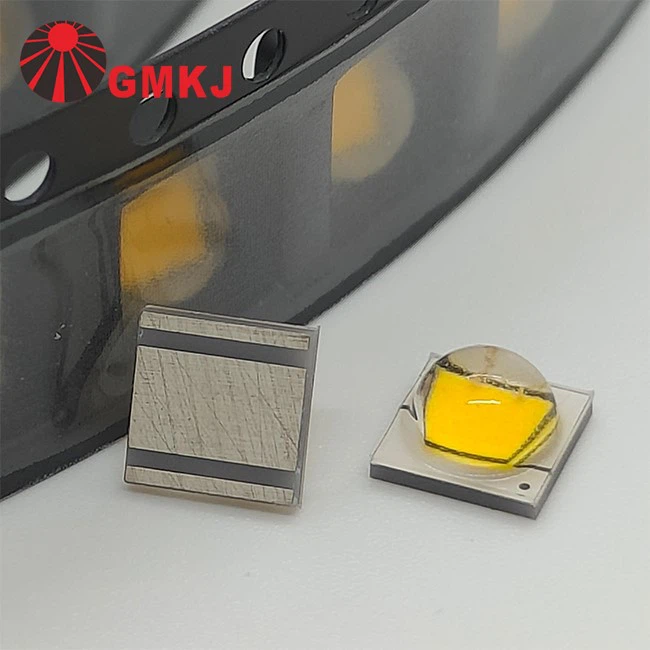

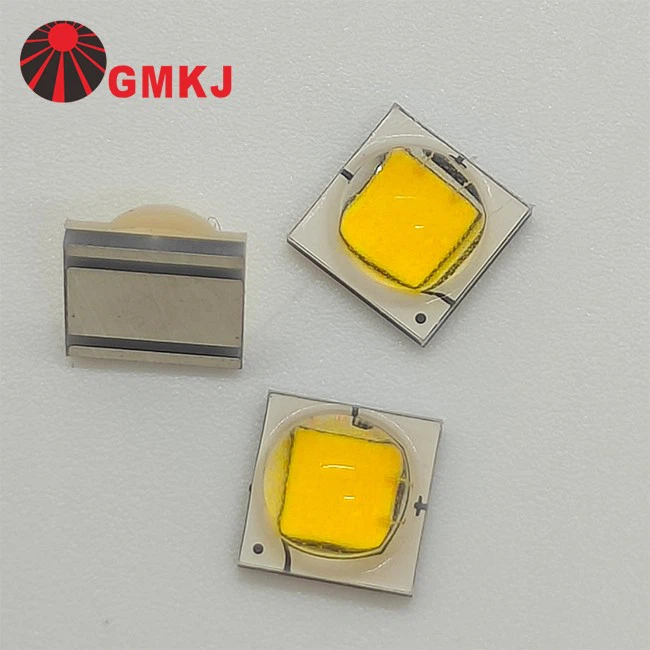

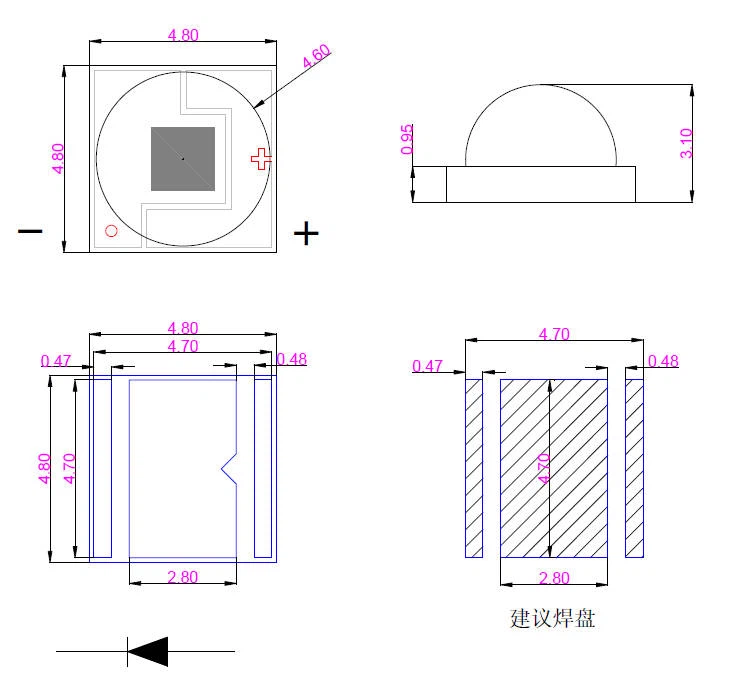

10W 3V 3A 5050 SMD LED For Wall Washer Lights

China Shilan 81mil vertical chip with golden wire boneded.

The advantage of vertical chip:

1. Higher junction temperature: compared with normal flat chip with Tj=120C, vertical chip LED has Tj with 150C. It means it is more stable compared with normal leds.

2. Vertical chip leds can distribute the light further if you use small lighting angle lens or reflector. So it is mainly used for the LED torch light and LED flash light.

3. Vertical chip LED has better lighting shade compared with normal chip. So it can be used for LED wall washer lights for the buildings.

3-3.6vdc with max 3000mA

1000-1200lm at 3000mA full power loaded

Ra>70 and Ra>80 available for regular stock;

Ra>90 for customized available too with min order quantity request;

2700K, 3000K, 4000K 5000K, 5700K and 6500K optional

CRI: Ra>70 for outdoor lights

CRI: Ra>80 for indoor lights

CRI: Ra>90 customized service available

Max 10 Watt power loaded with 3000mA forward current

Ceramic package with ALN with superb thermal condutive performance

Thermal resistance is just 3 C/W.

120 degree dome silicone lens

1. SKD parts available;

2. Aluminum pcb boards LED assembly service is also available here.

Parameter

Symbol

Rating

Unit

DC Forward Current

I_F

3000

m A

Peak pulse Current

I_FP

4000

m A

Power Dissipation

P_D

10

W

Reverse Voltage

V_R

5

V

Reverse Current

I_R

10

μ A

Operating Temperature Range

T_OPR

-40 ~ +85

°C

Storage Temperature Range

T_STG

-40 ~ +100

°C

LED Junction Temperature

T_J

120

°C

Parameter

Symbol

Conditions

Min

Avg.

Max

Units

Forward Voltage

V_F

I_F=3000mA

3.40

--

3.80

V

Thermal Resistance Junction To Board

RΘ_J-B

I_F=3000mA

--

3

--

°C/W

Luminous Flux

Φv

I_F=3000mA

1000

--

1200

lm

Color Temperature

CCT

I_F=3000mA

2800

--

3200

K

CRI

Ra

I_F=3000mA

70

--

--

--

Reverse Current

I_R

V_R=5V

−−

−−

10

μ A

Viewing Angle

2Θ_1/2

I_F=3000mA

−−

120

−−

Deg
