Guangmai Technology is proffesional in making the LED 5050 3528 SMD LED Chip.

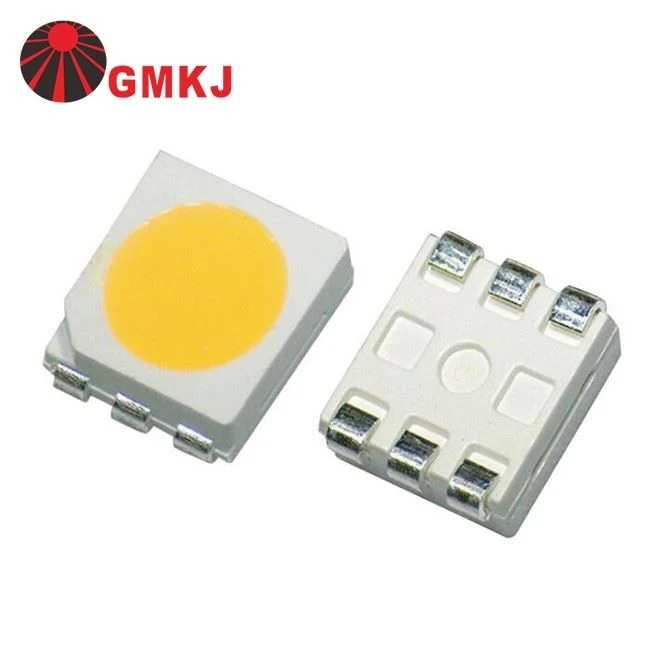

This series of products has a size of 5.0*5.0mm, a thickness of 1.6mm, and various colors, including red, orange, yellow, yellow-green, emerald green, blue, white, pink, and purple. It is suitable for lead-free reflow soldering, environmentally friendly products, and meets the requirements of the ROSH directive published by the EU This series of products are mainly used for signal indication and lighting, such as home appliance indications, automobile instruments, etc.
Detailed explanation of the principle of 5050 rgb led smd chip color change:
When two LEDs are lit by three primary color LEDs, it can emit yellow, purple, and cyan colors (for example, red and blue LEDs emit purple light when they are lit); if the red, green, and blue LEDs are lit at the same time , It will produce white light. If there is a circuit that can make the red, green, and blue LEDs light up two by two, individually light up, and light up the three primary color LEDs at the same time, it can emit seven different colors of light, so the colorful LED lights appear. This phenomenon.
The color-changing light is composed of three primary colors of red (R), green (G), and blue (B) LEDs. Two-color LEDs are very familiar to us. It is generally composed of red LED and green LED. It can emit red or green light alone. If the red light and the green light are bright at the same time, the red and green lights are mixed into orange-yellow.
Different color to choose:
Product Specification

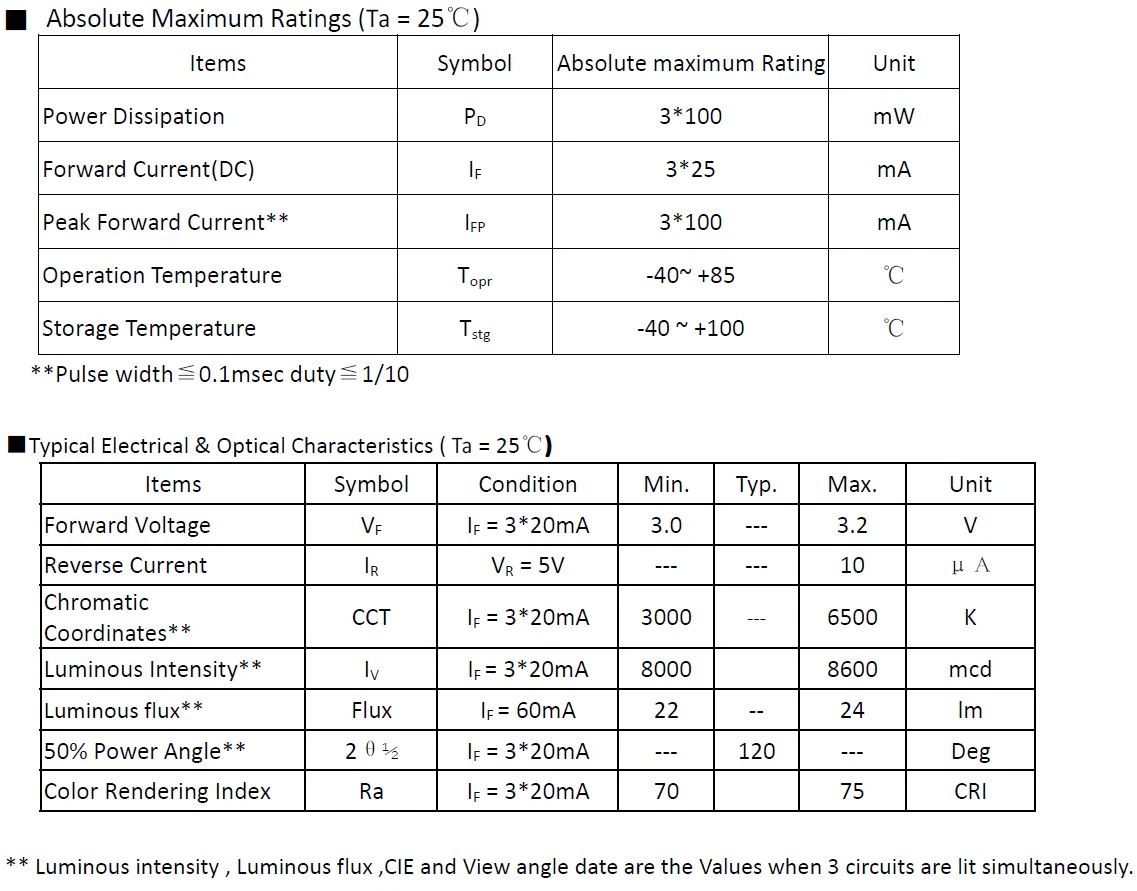

Typical Electrical & Optical Characteristics ( Ta = 25°C)
Package Dimension
Application
Products are widely used in the new energy automotive industry, digital tubes for small home appliances, smart homes, set-top box industries, sports outdoor products, Bluetooth digital products, signal indicators, automotive instrument lighting, lighting, mobile phone backlights, LCD energy and other fields to provide customers with products Good and cheap products.
About Guangmai LED
Shenzhen Guangmai Technology Co., Ltd. is a high-tech enterprise integrating scientific research, development, manufacturing, and sales. The company introduces more advanced production and testing equipment at home and abroad, and uses chips from well-known brands such as Taiwan and the United States for production. It has scale, equipment, The advantages of technology, quality and high starting point. The company's product categories are complete, the main products are
CHIP LED: (0402, 0603, 0805, 1206, 1615, 0602, 0802, 1204, 1209, 0807 fast flashing, 0805 slow flashing, etc. front/side)
TOP LED: (020, 215, 335, 3020, 3014, 3528, 2835, 5050, 5730, etc. front/side)
Various luminous colors are complete: (red light; orange light; yellow light; yellow-green light; emerald green light; blue light; purple light; warm white light; natural white light; positive white light; cold white light; red and blue light; red and green light; red and yellow light; RGB Colorful; three-color light; infrared; transmitting and receiving tubes, etc.)
Symphony series: (0603 Symphony, 5050 Symphony, Side 4020 Symphony, 0807 Self-flashing full color)
Since there are many white light parameters, if you need to inquire about color temperature, brightness, wavelength, voltage and other parameters, please contact our customer service staff for consultation. If the products you need are special, our company can provide customized services. Thank you for your support.
Datasheet:
LED 5050 3528 SMD LED Chip datasheet can be download from this page.
