LED SMD 2835 3V

LED SMD 2835 3V

●Use Germany Heraeus Pure Gold wire only

●PCT+ Copper base ensurer good heat dissipation ability

●Original chips from Epistar,Bridgelux or Sanan

●Various Lumen level for difefrent project needs

●Full Range of CCT from 1800-20000k

●Highest CRI up to Ra98 as Godo as Cree JE Series

●Just only need 60% Cost Compare with big brands

●Over 10 Years LED Manufacturer Experience

●5 Years Long time Quality Guarantee

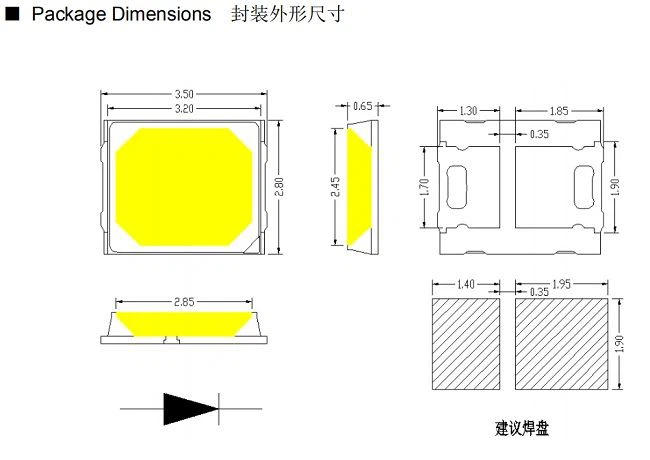

Packaging Dimension

GM SMD LED Product list

202003 GM SMD LED WHITE PRODUCT LIST
power	model	Lumen(lm)RA70/80	IF/VF(V)	(MAX CRI)
0.2W 2835 SMD
0.2w	2835 Sanan7*16mil	20-22/19-21	60mA/3.0-3.3	80
	2835 Sanan 11*18mil	24-26/23-25	60mA/3.0-3.3	80
	2835 Sanan 8*18mil	24-26/23-25	60mA/3.0-3.3	80
	2835 Sanan 8*18mil	26-28/24-26	60mA/3.0-3.3	80
	2835 Sanan 10*21mil	26-28/24-26	60mA/3.0-3.3	80
	2835 epistar 9*29mil	26-28/25-27	60mA/3.0-3.2	80
	2835 Jucan 12*29mil	28-30/26-28	60mA/2.8-3.1	80
	2835 Sanan 10*30mil	28-30/26-28	60mA/2.8-3.1	80
	2835 epistar 14*28mil	28-30/26-28	60mA/2.8-3.0	80
	2835 Jucan 17*34mil	30-32/28-30	60mA/2.7-3.0	80
	2835 Bridgelux 17*34mil	30-32/28-30	60mA/2.7-3.0	80
	2835 epistar 17*34mil	30-32/28-30	60mA/2.7-3.0	80
	2835 Bridgelux 26*30mil	32-34/30-32	60mA/2.7-3.0	80
Full Spectrum	2835epistar1734	24-26	60mA/3.0-3.2	95
	2835epistar1428	22-24	60mA/3.0-3.2	95
	2835Jucan1734	23-25	60mA/3.0-3.2	95
	2835Jucan1229	20-22	60mA/3.0-3.2	95
0.5W 2835 LED		wavelength	Current/voltage	RA
0.5w	2835 Jucan 12*29mil	55-60/50-55	150mA/3.0-3.4	80
	2835 Sanan 10*32mil	55-60/50-55	150mA/3.0-3.4	80
	2835 epistar 14*28mil	60-65/55-60	150mA/3.0-3.4	80
	2835 Jucan 17*34mil	65-70/60-65	150mA/3.0-3.4	80
	2835 Bridgelux 17*34mil	65-70/60-65	150mA/3.0-3.4	80
	2835 epistar 17*34mil	70-75/65-70	150mA/3.0-3.4	80
	2835 Bridgelux 26*30mil	70-75/65-70	150mA/3.0-3.4	80
1w 2835 LED
1w	2835 Sanan 11*34mil	70-75/65-70	(60MA)8.5-9.0/9.0-9.5	80
	2835 ETI 12*36mil	70-75/65-70	(60MA)8.5-9.0/9.0-9.5
	2835 ETI17*27mil Dual chips	130-140/120-130	(60MA)17-18/18-19
	2835 Jucan12*29mil Dual chips	115-125/105-115	(150mA)6V
	2835 Sanan10*32mil Dual chips	115-125/105-115	(150mA)6V
	2835 epistar14*28mil Dual chips	120-130/110-120	(150mA)6V
	2835 epistar9*29 mil Three chips	120-130/110-120	100ma/9V
	2835 Sanan9*28mil Three chips	120-130/110-120	100mA/9V
	2835 Jucan12*29mil Three chips	120-130/110-120	100mA/9V
	2835 Sanan10*32mil Three chips	120-130/110-120	100mA/9V
	2835 epistar14*28mil Three chips	130-140/120-130	100mA/9V
	2835 ETI17*27mil	70-75/65-70	(30MA)17-18/18-19
	2835 ETI17*27mil Dual chips	130-140/120-130	(60MA)17-18/18-19
0.5W 5730 SMD
0.5w	5730 Jucan12*29mil	60-65/55-60	150mA/3.0-3.4	80
	5730 epistar14*28mil	60-65/55-60		80
	5730 Jucan17*34mil	65-70/60-65		80
	5730 Bridgelux17*34mil	65-70/60-65		80
	5730 epistar17*34mil	65-70/60-65		80
	5730 epistar 9*29mil	60-65/55-60		80
	5730 Bridgelux26*30mil	70-75/65-70		80
2835/5730 RGB		wavelength	Current/voltage
Color LED	Epileds(12*12mil) RED	615-630nm	(60MA)2.2-2.3/2.3-2.4	/
	Epileds(11*13mil) GREEN	510-525nm	(60MA)3.0-3.1/3.1-3.2	/
	Epileds(9*26mil) BLUE	455-470nm	(60MA)3.0-3.1/3.1-3.2	/
	Epileds(20*20mil) RED	615-630nm	(150MA)2.2-2.4	/
	Epileds(20*20mil)GREEN	510-525nm	(150MA)3.0-3.2	/
	Epileds(20*20mil)BLUE	455-470nm	(150MA)3.0-3.2	/
	Epileds(20*20mil)YELLWOW	590-590nm	(150MA)2.2-2.4	/
5050RGB/5050 WHITE
RGB	5050RGB epistar	RGB
	5050RGB Sanan	RGB
	5050Epistar0815 x3 chips
	5050Jucan M8 three chips
	5050RGB

Packing Method

Normal packing Quantity: 4000pcs/reel in vacuum bag.

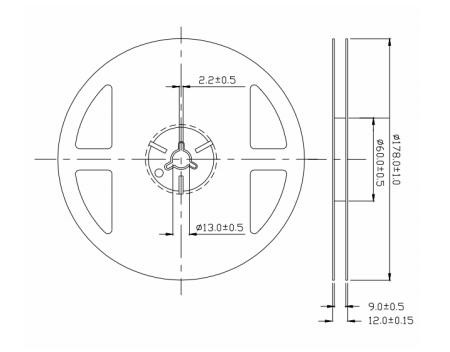

Reel Specifications

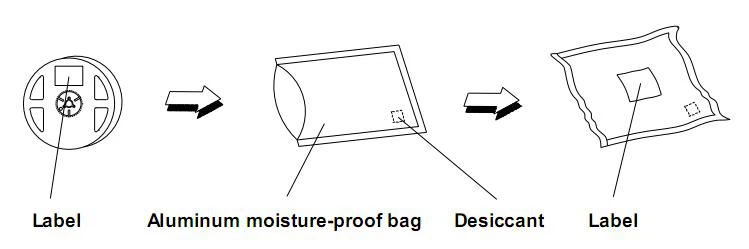

Moisture Resistant Packaging

Shipping Method

Delivery time:

Order Qty<500.000pcs, 3-7 workdays.

Order Qty>500.000pcs, 7-12 workdays.

Order Qty>2000.000pcs,12-20 workdays.

Shipping by DHL/FEDEX/UPS/EMS or Air transportation. Also we can handle the goods to your freight forwarder if you have. GMKJ make sure you spend lowest delivery cost for your order.

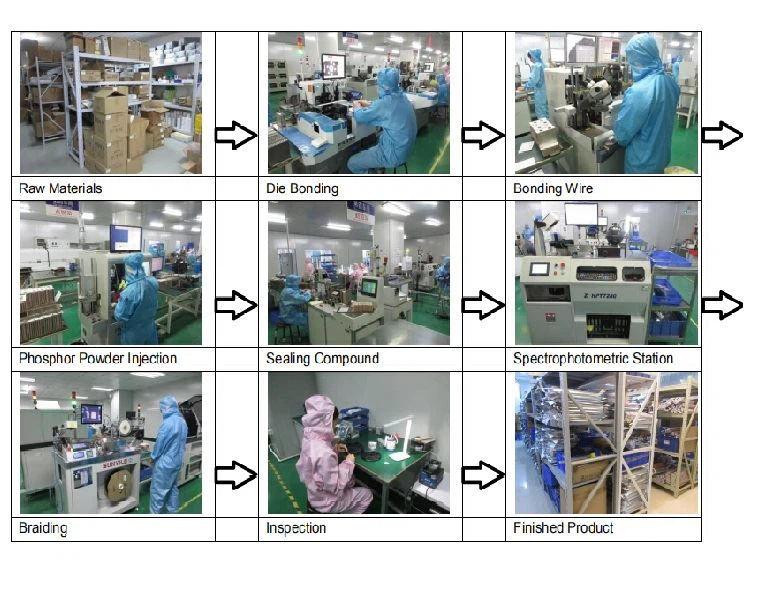

Production flow

FAQ

Q: What’s your product range?

A:Our main products include:

·COB LED 2-400W

·Compact SMD LED 0.06W-5W

·Integrated Flip Chip LED Module 3-500W

·Power LED 1-5W

·R.G.B LED or RGB/RGBW LED 1-100W

Q: Would you offer free samples?

A:Yes, We would offer free samples for P02 LED (1W high power LED, 6 pins 3W RGB LED), 3030 SMD LED, 5050 SMD LED, 3535 RGB LED,3535 RGBW LED, etc.

Q:Are you manufacturer or trade company?

A:We are an experienced and professional LED manufacturer since 2005.

Q:What payment method do you accept?

A:We accept T/T, Paypal, Western Union and others more as clients’ requirement.

Q: What about the lead time?

A:It depends on the order quantity. In general, lead time is about 5-7 working days. For samples, the delivery could be as fast as

same day.

Q: How can I get a quotation from you?

A:Please kindly leave us messages about your needs,including products and quantity,our professional team will reply you very soon(mostly within few hours).

Q: What technical support can I get after purchase?

A:Data sheet and operation manual will be provided to dear you. Our sales engineer will be answering your questions any time.

Q: If there is LED failure, how can you support?

A:Customers provide pictures of the failed products or the samples rejected, the engineer will analyze the failure and find out

the reasons. If the failure was caused by the product quality, we will compensate with qualified replacement!

Q: What’s the highest efficiency of your smd led.

A: For SMD5050 LED, highest efficiency is 220lm/w.

For SMD3030 LED, the highest efficiency is 200lm/w .

For SMD2835 LED, the highest efficiency is 195lm/w

Business Partner

Company Environment

Factory Environment

GMKJ was established in 2010 with a registered capital of 67.23 million yuan, is one of a leading semiconductor light-emitting diode enterprises in China. Our company focus on R&D and innovation continuely, now it owns more than 70 patents for inventions and utility models, the products have passed international quality certifications such as CE,RoHS,EN62471,LM-80,etc.,.

Production Ability

A. Our workshop covers an area of 50000 square meters

B. 180 advanced level fully automatic packaging lines

it was introduced the world's most advanced fully automatic production equipment (ASM, KAIJO, etc.).

C. Production Ability:

SMD 12000KK Per year

Power LED150KK per year

COB LED chip 6KK per year

D. Annual output value 4.0~4.5Billion Yuan.

Honour

In July 2013, rated as "Shenzhen High-tech Enterprise", "National High-tech Enterprise",

In 2014, awarded "Integrity of the Business Honor" in Baoan, Shenzhen.

In 2016, awarded "China AAA Credit Enterprise".

In 2017, accredited for "Fulfilling contract and Outstanding Credit in Guangdong province ",

In 2017, honoured "The 19th China Patent Excellence Award",

In 2017, set up Shenzhen Institute of Tsinghua University enterprise postdoctoral innovation base, Shenzhen vocational education campus public training base.

In 2018, honoured "The Famous Brand of Guangdong Province" , "Shenzhen Intellectual Property Advantages

Enterprise"

granted as a deputy office of LED Standards Alliance of Shenzhen(LSA), and a member of Semiconductor Lighting Technology Standards Group of MIIT.

GM Company Service

Our Services/Why choose Us

1. Professional service: replied within 24 hours(at workdays).
2. Various ready moldings of lamp led are available: no need to afford extra fee for moldings.
3. We also can provide customized products, design according to your demand.
4. Reliable and stable quality: 100% testing for each piece. Automatic testing and bin code selection machine.
5. Experience: produce LED components for more than 14 years.
6. Advanced Equipment: ASM automatic production machines(biggest brand in LED automatic machines)
7. Concentration: We focus on LED research and development, production and sales.
