White 7070 SMD LED



White 7070 SMD LED as shown below:

Product name	White 7070 SMD LED
Product size	7*7mm ALN ceramic base
Power	40W
Input	6-8vdc 6000mA
Chips brand	China Shilan 77mil 2S2P 4 chips inside, flip chip wireless
Brightness	3800-4000lm
Color temperature	2700K, 3000K, 4000K, 5000K and 6500K optional
CRI	Ra>70 and Ra>80 optional
Lighting angle	120 degree, flat package or silicone dome lens package, both available
Thermal Resistance Junction To Board	5 C/W
Application	Vehicle working light, head light, flash light, torch light
Warranty	3-4 years

A White 7070 SMD LED is a small, compact electronic component that emits a bright, cool white light. It is typically square in shape and measures 7.0mm x 7.0mm. The LED is encased in a clear or translucent package, allowing the emitted light to shine through. It has a flat surface on top with the LED chip underneath, which is responsible for producing the light.



The LED's light output is characterized by its pure white color, making it suitable for various applications in vehicles and illumination devices. In vehicle working lights and headlamps, these LEDs are often arranged in arrays or clusters to provide intense and focused illumination for driving or working in low-light conditions. They are known for their energy efficiency, long lifespan, and the ability to withstand vibrations and harsh conditions, making them ideal for automotive use.

White 7070 SMD LED size:

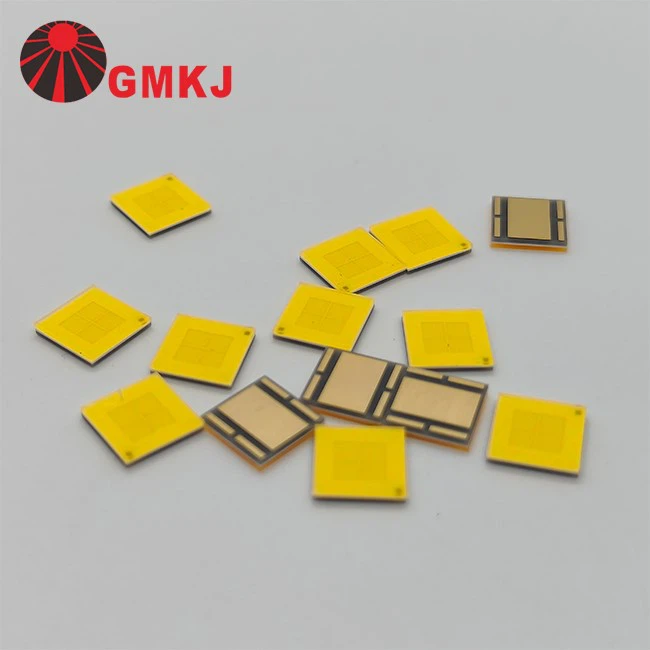

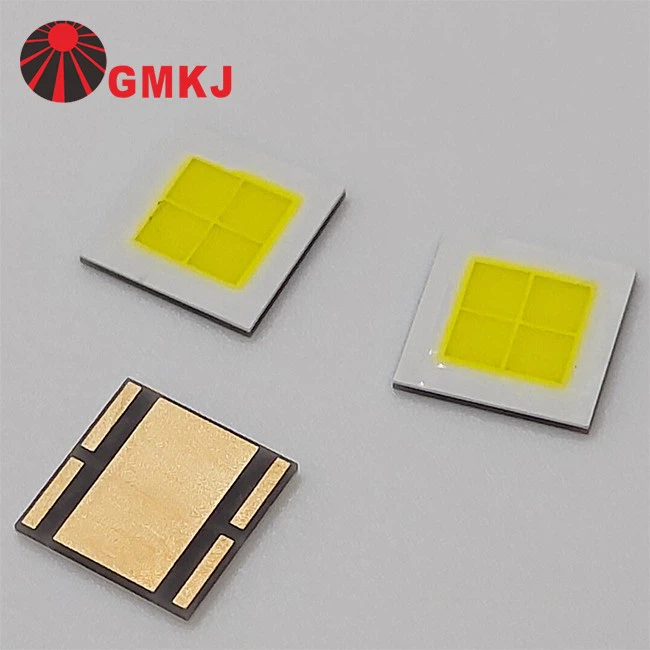

Flat package 7070 smd leds

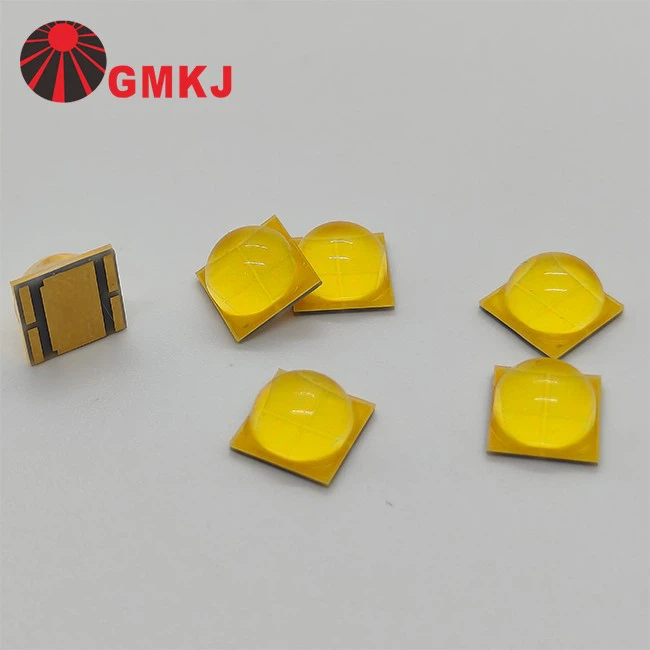

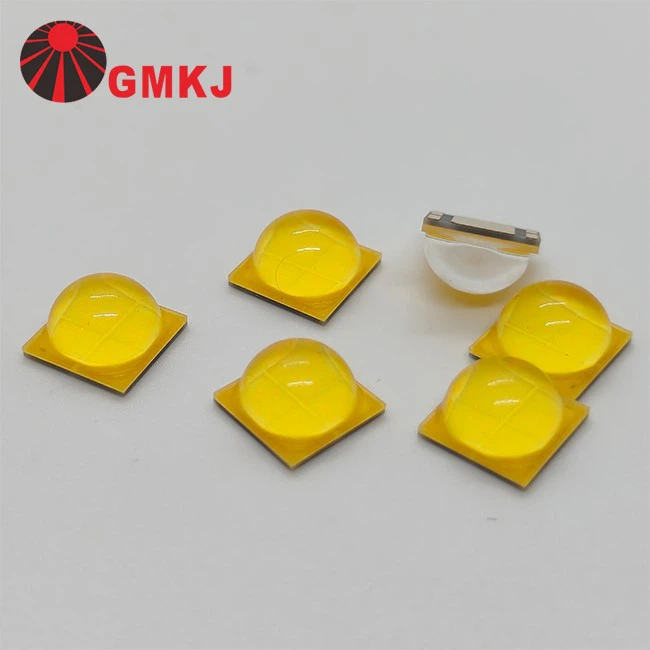

Dome silicone lens 7070 smd leds

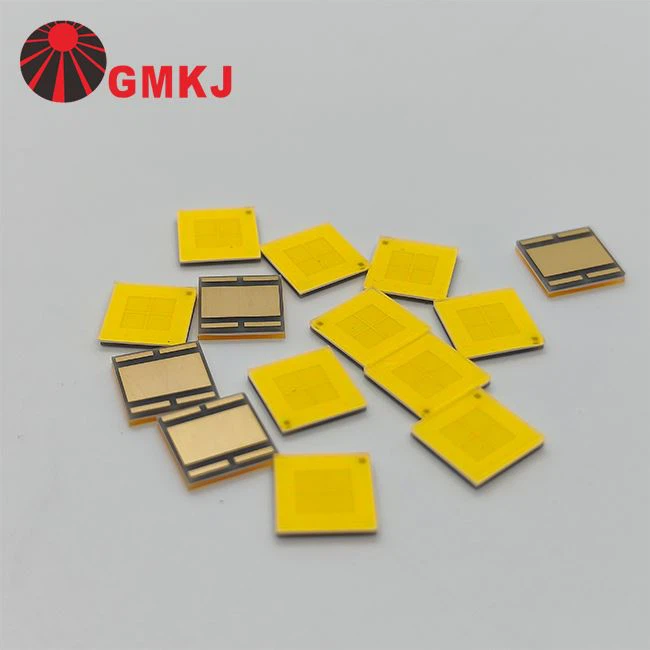

White 7070 SMD LED picture:





White 7070 SMD LED technical specs:

7070 LED Absolute Maximum Ratings(At TA =25℃)

Parameter	Symbol	Rating	Unit
DC Forward Current	IF	6000	m A
Peak pulse Current	IFP	8000	m A
Power Dissipation	PD	40	W
Reverse Voltage	VR	10	V
Reverse Current	IR	10	μ A
Operating Temperature Range	TOPR	-40 ~ +85	°C
Storage Temperature Range	TSTG	-40 ~ +100	°C
LED Junction Temperature	TJ	150	°C



7070 smd led Electrical/Optical Characteristics--White (At TA=25°C)

Parameter	Symbol	Conditions	Min	Avg.	Max	Units
Forward Voltage	VF	IF=6000mA	6.00	--	8.00	V
Thermal Resistance Junction To Board	RΘJ-B	IF=6000mA	--	5	--	°C/W
Luminous Flux	Φv	IF=6000mA	3800		4200	lm
Color Temperature	CCT	IF=6000mA	6000		7000	K
CRI	Ra	IF=6000mA	70	--	--	--
Temperature Coefficient of Forward Voltage	∆VF/∆T	IF=6000mA	−−	-2	−−	mV/°C
Reverse Current	IR	VR=20V	−−	−−	10	μ A
Viewing Angle	2Θ1/2	IF=6000mA	−−	120	−−	Deg





White 7070 SMD LED is mainly used for Vehicle working light, head light, flash light, torch light.

In flashlights and torchlights, a White 7070 SMD LED can serve as the primary light source. It provides a powerful and concentrated beam of light, which is essential for tasks like searching, hiking, or emergency situations. These LEDs are prized for their reliability and low power consumption, ensuring that the flashlight or torch remains operational for extended periods.
