Products Description
808nm 850nm 940nm SMD Vcsel Laser Diode Chip Specs:
| Product name | 808nm 850nm 940nm SMD Vcsel Laser Diode Chip |
| Part number | GD-3535VS808-1CC2-DR43B |
| Chips brand | China DR 43mil laser chip |
| Input |
10 Watt with 2.2vdc max 4000mA drive current |
| Flux | Radiation emission power 3500mW at 4000mA |
| Lighting Efficiency | N/A, invisiable light |
| Color |
Infrared 808nm, 850nm and 940nm |
| Power |
10 Watt |
| Ceramic package material |
ALN ceramic base |
| Lighting angle |
20 degree flat quartz glass lens |
| Brand and manufacturer | GMLEDs, GMKJ |
| Warranty | 3 years |
| OEM service |
1. SKD parts available; 2. Aluminum pcb boards LED assembly service is also available here. |

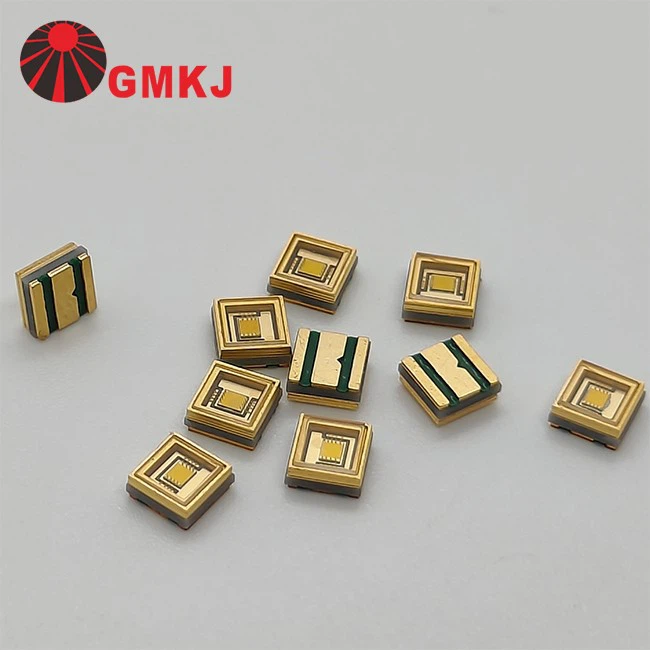

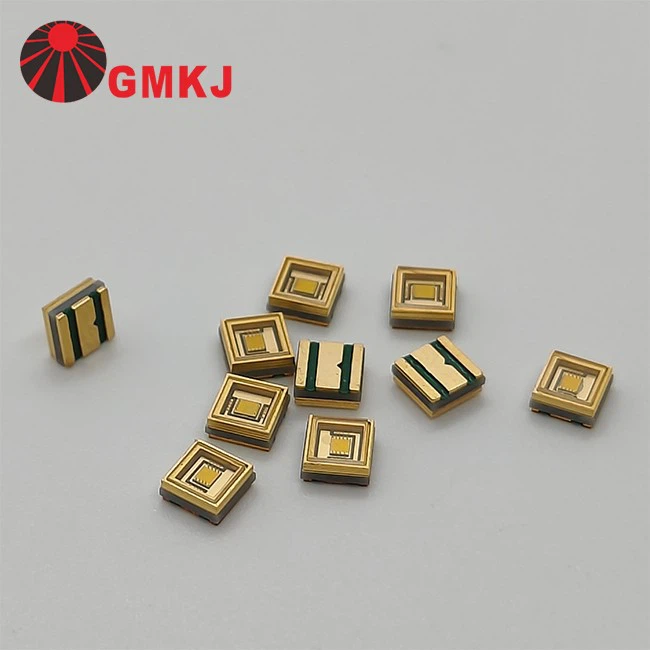

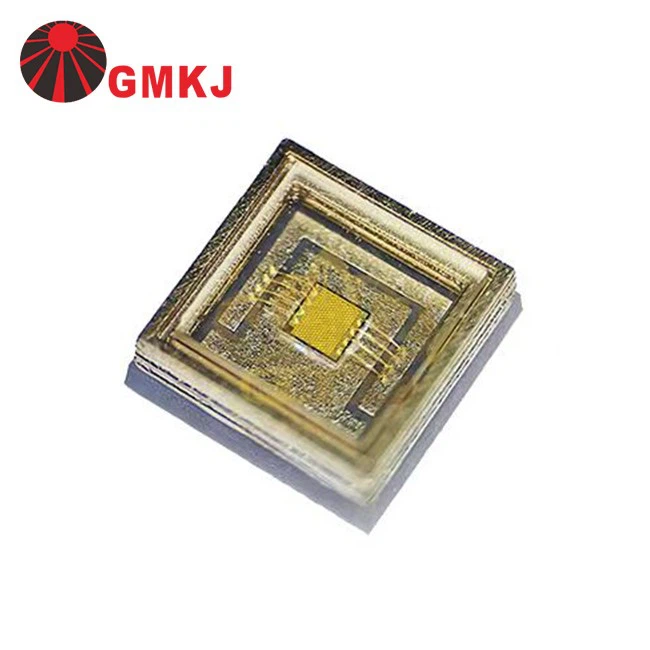

808nm 850nm 940nm SMD Vcsel Laser Diode Chip picture:
808nm 850nm 940nm SMD Vcsel Laser Diode Chip star pcb boards soldering service:
808nm 850nm 940nm SMD Vcsel Laser Diode Chip package dimensions:
808nm 850nm 940nm SMD Vcsel Laser Diode Chip Eletrical specs:
|
Parameter |
Symbol |
Conditions |
Min |
Avg. |
Max |
Units |
|
Forward Voltage |
VF |
IF=4000mA |
-- |
2.2 |
-- |
V |
|
Thermal Resistance Junction To Board |
RΘJ-B |
IF=4000mA |
-- |
5 |
-- |
°C/W |
|
Radiant Flux |
Φe |
IF=4000mA |
-- |
3500 |
-- |
mW |
|
Peak wavelength |
λp |
IF=4000mA |
-- |
808 or 850 or 940 |
-- |
nm |
|
Temperature Coefficient of Forward Voltage |
∆VF/∆T |
IF=4000mA |
−− |
-2 |
−− |
mV/°C |
|
Reverse Current |
IR |
VR=5V |
−− |
−− |
2 |
μ A |
|
Viewing Angle |
2Θ1/2 |
IF=4000mA |
−− |
20 |
−− |
Deg |
Application
808nm 850nm 940nm SMD Vcsel Laser Diode Chip applications
808nm 850nm 940nm SMD Vcsel Laser Diode Chip is mainly used for CCTV cameras, hair removal devices and automotives redar and other applications.
About GMLEDs
Certification available in GMLEDs
Guangmai Technology Certificaitions
CE
CE-LVD
FCC
ROHS
ISO9001
LM-80
Guangmai Electronics' products are renowned for their outstanding quality and are widely used in various fields such as new energy, 3D printing, ink drying, automation equipment, low-altitude drones, security surveillance, beauty and medical care, disinfection and sterilization, plant supplementary lighting, landscape lighting, and general illumination. The products are exported to more than 50 countries and regions worldwide, earning widespread praise and the trust of customers in the international market.
For more details, please contact with us directly!
