Products Description

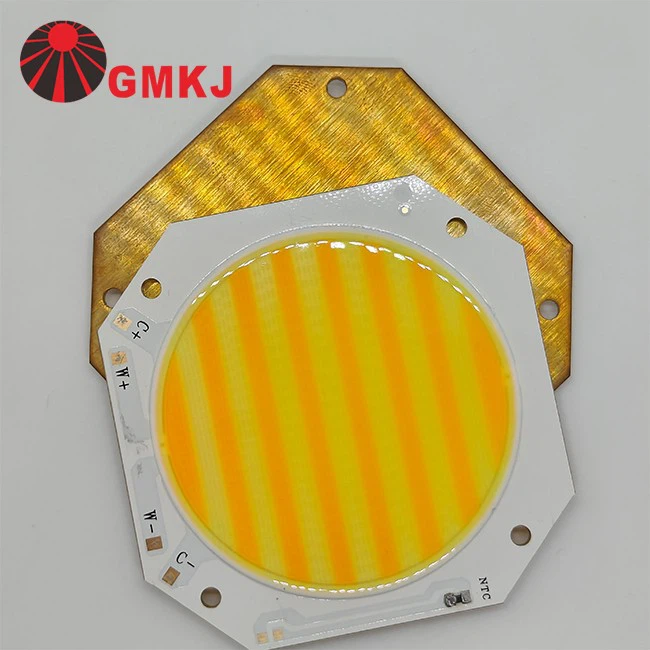

Tunable 2700K 6500K 600W COB LED Ra95 Photography light picture:
| Product name | Tunable 2700K 6500K 600W COB LED Ra95 Photography light |
| Part number | GF-7070W6W3-24C56D-HC1530-R95 |
| Chips brand | China Sanan chips |
| Input | 72vdc 4200mA for each color |
| Flux |
25000-27000lm per color, total 50000-60000lm |
| Lighting Efficiency | 100-120lm per watt with Ra>95 |
| Color |
Bi color inside: 2700K warm white; 6500K cool white; Both with Ra>95 |
| Power |
300 Watt* 2 colors |
| Ceramic package material |
Copper led base |
| Lighting angle |
120 degree flat package |
| Brand and manufacturer | GMLEDs, GMKJ |
| Warranty | 3 years |
| OEM service |
1. SKD parts available; 2. Special color and power customized available here; |
Tunable 2700K 6500K 600W COB LED Ra95 Photography light picture:
Tunable 2700K 6500K 600W COB LED Ra95 Photography light dimensions:
Tunable 2700K 6500K 600W COB LED Ra95 Photography light Eletrical specs:
|
Parameter |
Symbol |
Conditions |
Min |
Avg. |
Max |
Units |
|
Forward Voltage |
VF |
IF=4200mA |
68.0 |
-- |
76.0 |
V |
|
Thermal Resistance Junction To Board |
RΘJ-B |
IF=4200mA |
-- |
8 |
-- |
°C/W |
|
Luminous Flux for each color |
Φv |
IF=4200mA |
25000 |
27000 |
lm |
|
|
Color Temperature |
CCT |
IF=4200mA |
2600 |
2800 |
K |
|
|
IF=4200mA |
6000 |
7000 |
||||
|
CRI |
Ra |
IF=4200mA |
95 |
-- |
-- |
-- |
|
Temperature Coefficient of Forward Voltage |
∆VF/∆T |
IF=4200mA |
−− |
-2 |
−− |
mV/°C |
|
Reverse Current |
IR |
VR=120V |
−− |
−− |
10 |
μ A |
|
Viewing Angle |
2Θ1/2 |
IF=4200mA |
−− |
120 |
−− |
Deg |
Application
Tunable 2700K 6500K 600W COB LED Ra95 Photography light applications
Tunable 2700K 6500K 600W COB LED Ra95 Photography light comes with very high color rendering index. It is mainly used for Photography lights, film lights and camera backlights and other applications.
